3. OPERATION
57
Cancel : Press the
Delete
key in delete mode.
(d) Input Contact/Coil
To input a contact or coil, register the input element in the key input
line, then press the
Enter
key.
The registered element is added to the ladder diagram. The following
keys are used for this operation:

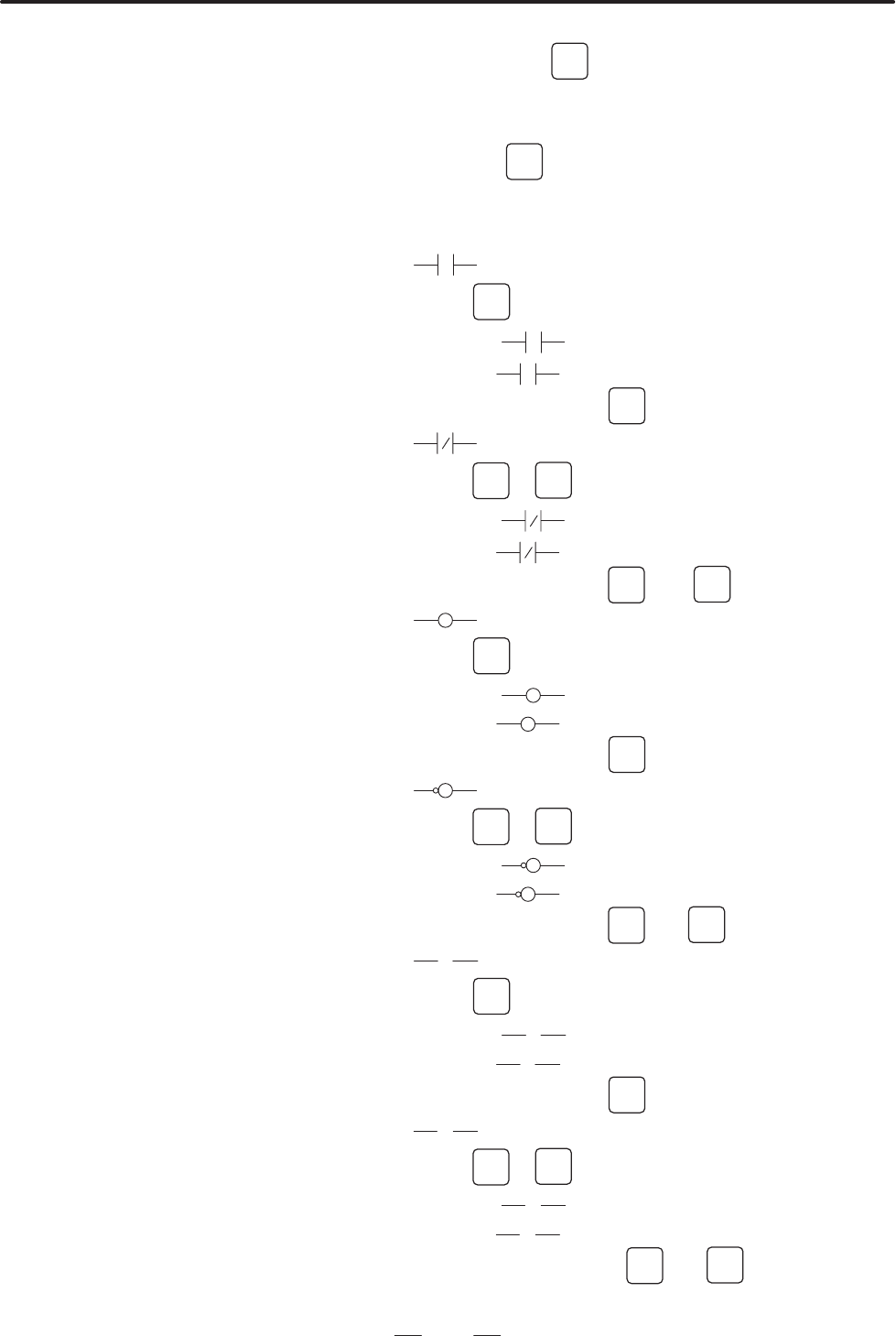

[Keys used for registration]
1) Set
Key :
F1
Function : Set at the input line.
An addressed
is input to the key input line by entering
an address and pressing the
F1
key.
2) Set
Key :
Shift
+
F1
Function : Set at the input line.
An addressed
is input to the key input line by entering
an address and pressing the
Shift
and
F1
keys.
3) Set
Key :
F2
Function : Set at the input line.
An addressed
is input to the key input line by entering
an address and pressing the
F2
key.
4) Set
Key :
Shift
+
F2
Function : Set at the input line.
An addressed
is input to the key input line by entering
an address and pressing the
Shift
and
F2
keys.
5) Set
(S)
Key :
F3
Function : Set
(S)
at the input line.
An addressed
(S)
is input to the key input line by entering
an address and pressing the
F3
key.
6) Set
(R)
Key :
Shift
+
F3
Function : Set
(R)
at the input line.
An addressed
(R)
is input to the key input line by entering
an address and is pressing the
Shift
and
F3
keys.
