2 CPU 3-path control function Additional Manual Page 3

Additional Manual
2
/
50
FANUC Series 16i-TB
2 CPU 3-path control function
Specifications
A
-78884E
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
01 Aug.01.’02 Newly registered
SHEET
1. General
3-path control function is the function to execute three independent machining at the same time.
This function is intended for the lathe which cuts the work at the same time on three tool posts.
The machining programs for each path are stored into program memories for each path.
Before automatic operation, select the machining program on each path at the first.
After selecting the machining program, the program can be executed independently on each path at
the same time. Moreover, the machining program for each path can be started at different time
independently.
When the all paths need to wait for one another during machining, the waiting function is
available.
Only one CRT/MDI unit is provided for all paths. Therefore, the path selection signals must be
selected before operation. The display of the screen also depends on the path selection signals.

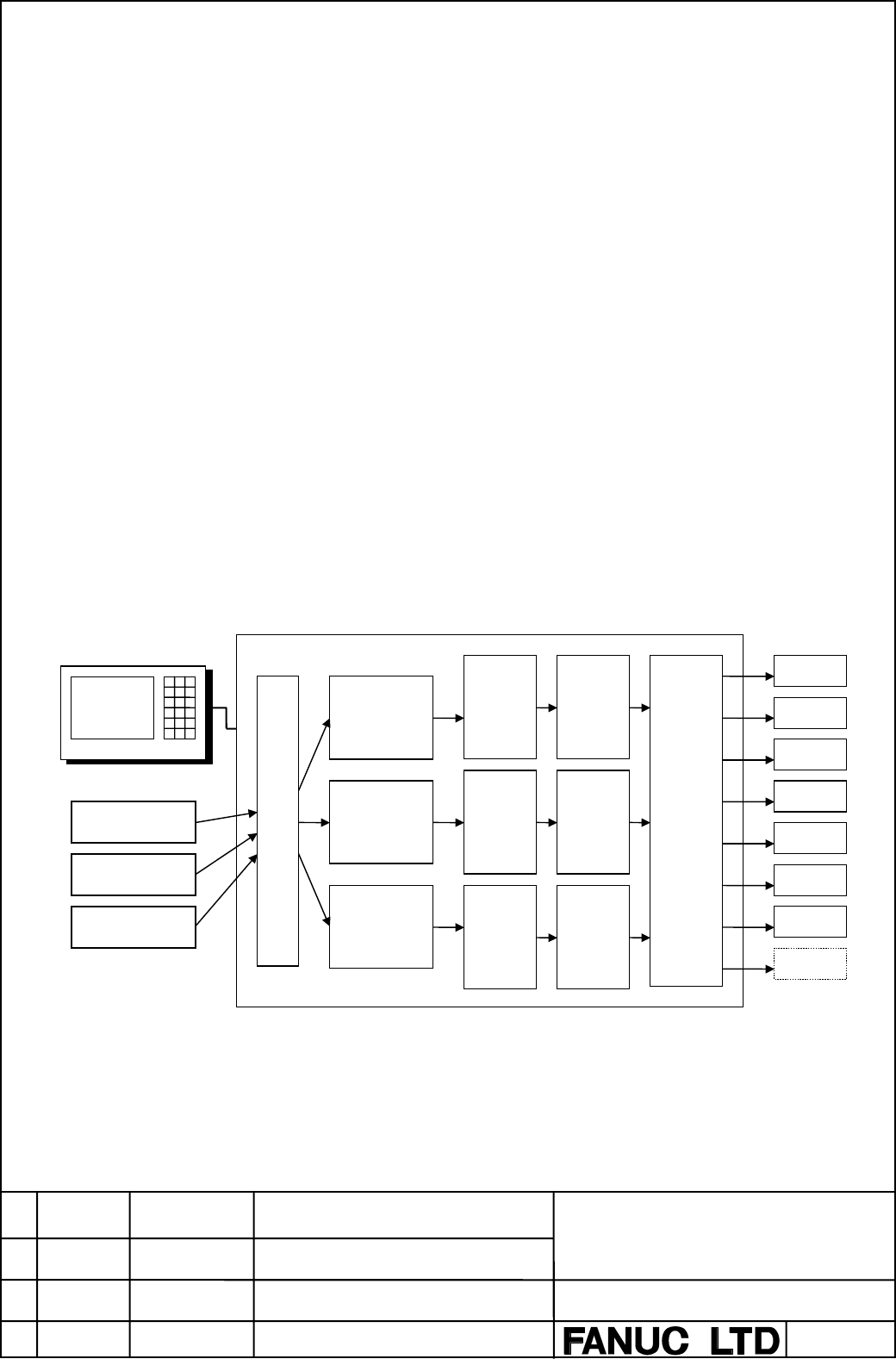

Program
memories
for path-1
Program
memories
for path-2
Program
memories
for path-3
Reader/punch interface
Prepara-
tion for
path-1
Prepara-
tion for
path-2
Prepara-
tion for
path-3
Inter-pol
ation for
path-1
Inter-pol
ation for
path-2
Inter-pol
ation for
path-3
Axes
control
CNC CRT/MDI
Program for path-1
Program for path-2
Program for path-3
X
1
axis
Z
1
axis
Y
1
axis
X
2
axis
Z
2
axis
X
3
axis
Z
3
axis
