Facing axis
Parallel axis 2
Parallel axis 1
(ii)
(i)
Set (i) and (ii) in the following condition.
(i) < (ii)
In the example of the left figure, the
specifying of the surface which does not
check in the interference is the side of
the negative ( of the facing axis ).
Facing axis
Parallel axis 1
Parallel axis 2
(a)
(b)
(c)

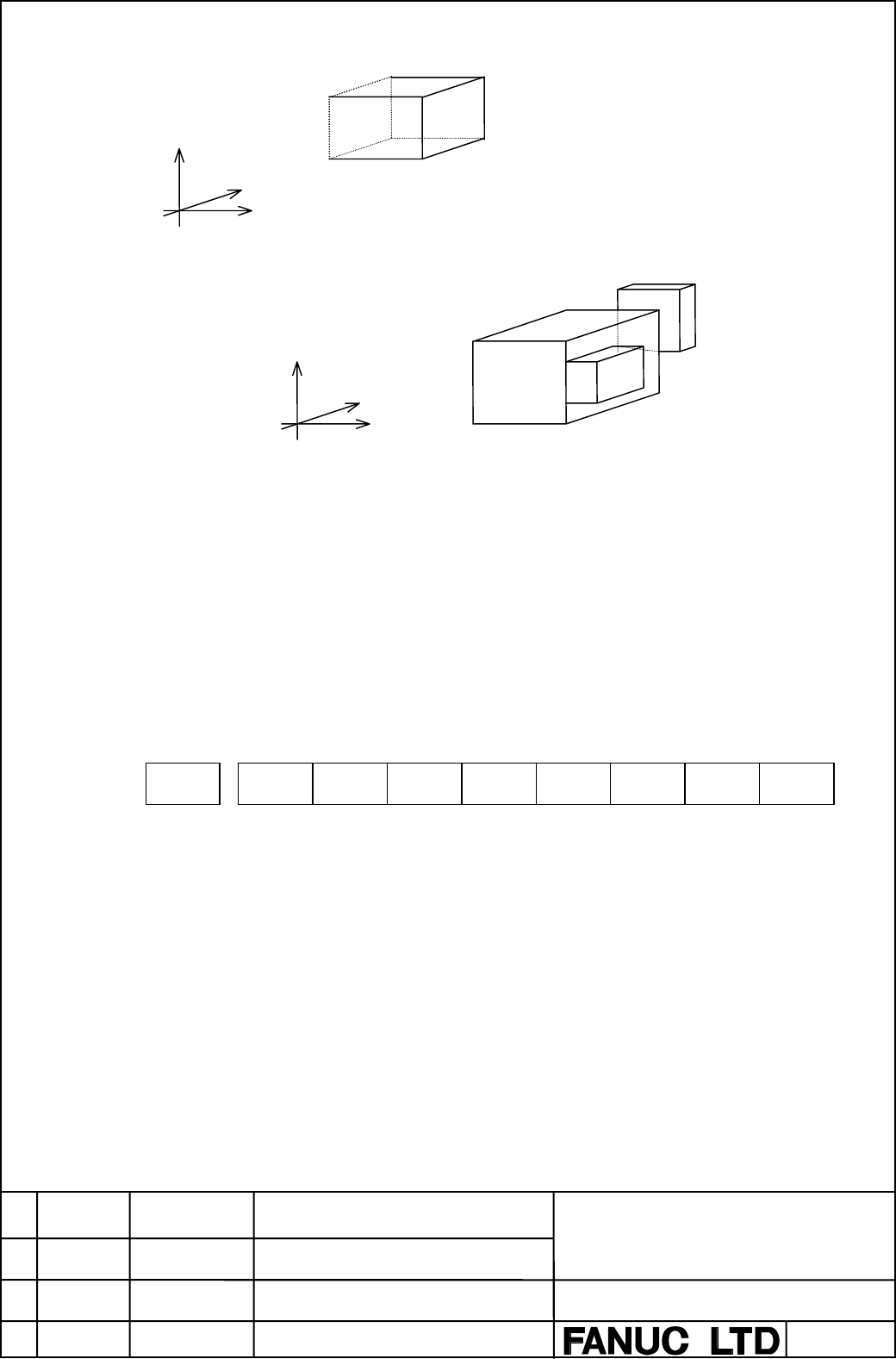

The rectangular parallelepiped which composes one tool post is maximum three rectangular
parallelepiped and each rectangular parallelepiped is defined by the former specifying of the
rectangular parallelepiped. Therefore, in the example of the figure above, set the six points
( ●, ▲, and ■ ) for rectangular parallelepipeds (a), (b) and (c). And this setting is done for
three tool posts.
2.5.3 DI/DO signals
Address #7 #6 #5 #4 #3 #2 #1 #0
G0292 ITFC3 ITFC2 ITFC1
[Classification]
input signals
[Function] These signals select whether the tool post interference check is executed
or not.
[Operation] When each ITFC* signal is 1, interference check is executed between each
tool post which is set by parameters in advance.
When the signal is 0, the interference check is not executed.
ITFC1-3 correspond to interference check #1-#3.
