FANUC Series 16i-TB
2 CPU 3-path control function
Specifications
A
-78884E
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
01 Aug.01.’02 Newly registered
SHEET

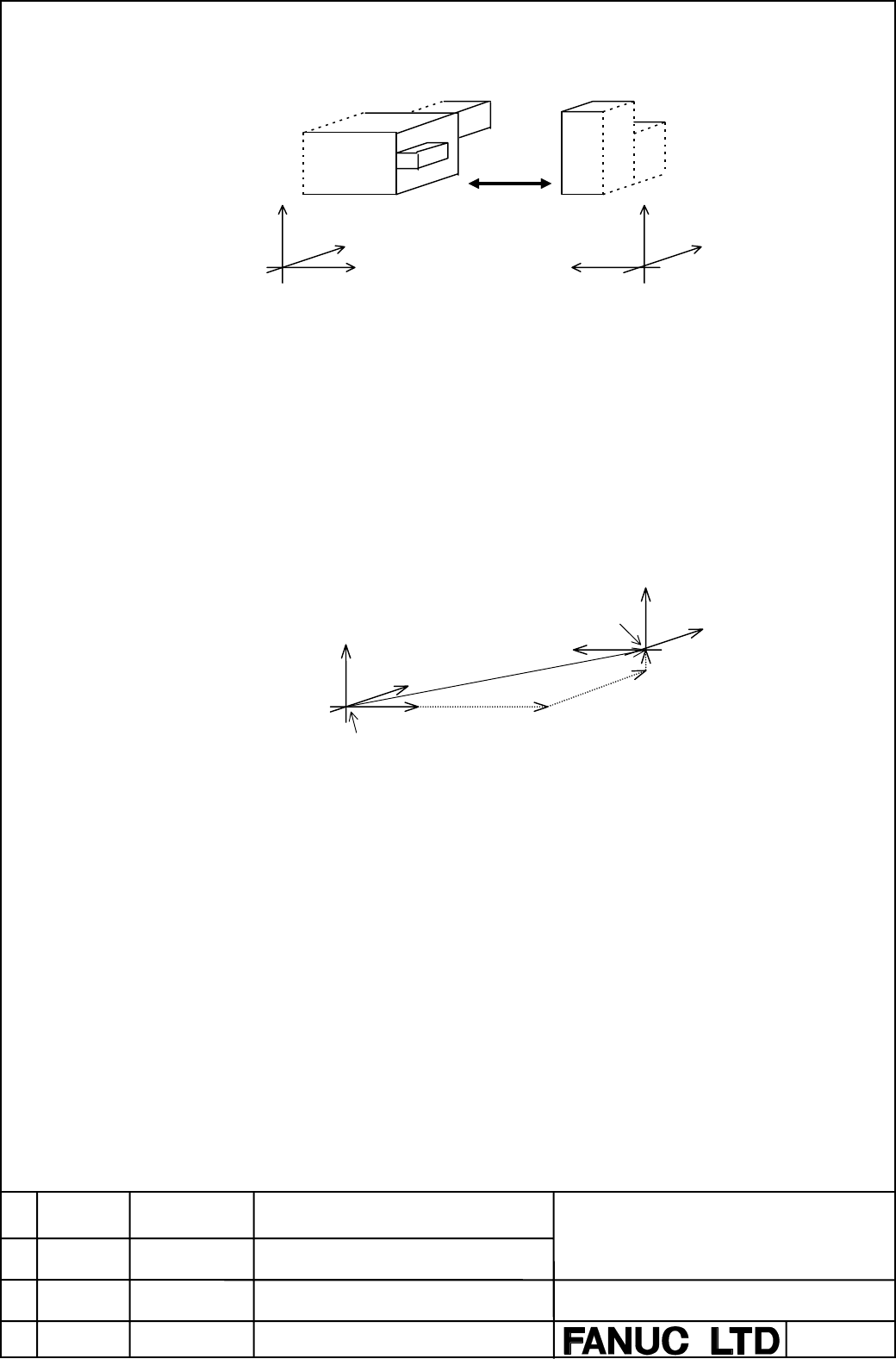

CNC checks interferenc
Facing axisFacing axis
Parallel axis 1
Parallel axis 1
Parallel axis 2
Parallel axis
CNC does not check the interference of the surface which was surrounded by the dotted line
in the above figure. The specifying in the surface of the dotted line is due to the setting of the
shape of the following tool post.
(2) Setting of a distance between the tool post machine reference points
Set the relative position between two machine reference points of tool posts for three
coordinate axes. The unit of the setting value is the unit of the machine coordinate value and
the setting value is the distance from tool post 1 ( or 2 ) to tool post 2 ( or 3 ). Set the axial
relative position ( i,ii, and iii) in the following figure for each tool post and set these relative
positions for three tool posts.
Facing axi
Parallel axis
Parallel axis 2
Reference point
of tool post 1
Reference point
of tool post 2
(iii)
(ii)
(i)
(3) Setting of shape of tool post
One tool post is shown by a maximum of three rectangular parallelepipeds. One rectangular
parallelepiped is specified by an offset position from the machine reference point ( In the
following figure, set the offset position of (i) from the machine reference point and the offset
position (ii) from the machine reference point. ) As for the surface of the side which was
specified by the parameter which is vertical to the facing axis which contains point (i),
interference checking is not done. This is common to all of the rectangular parallelepipeds
which compose tool post.
