1.HANDLING THE LINEAR MOTOR HANDLING, DESIGN, AND ASSEMBLY B-65222EN/03
- 88 -
Transporting a magnet plate
WARNING
1 When transporting a magnet plate, be sure to keep
the corrugated cardboard and tin plates attached to
it.
2 Ensure that no magnetic materials (including a tool)
are brought closer to the magnet plate and that the
magnet plate is away from magnetic materials. If a
magnetic material such as iron is brought closer to
the magnet plate, the magnetic material and the
magnet plate can pull each other with a force of up
to 5 tons, resulting in a serious injury.

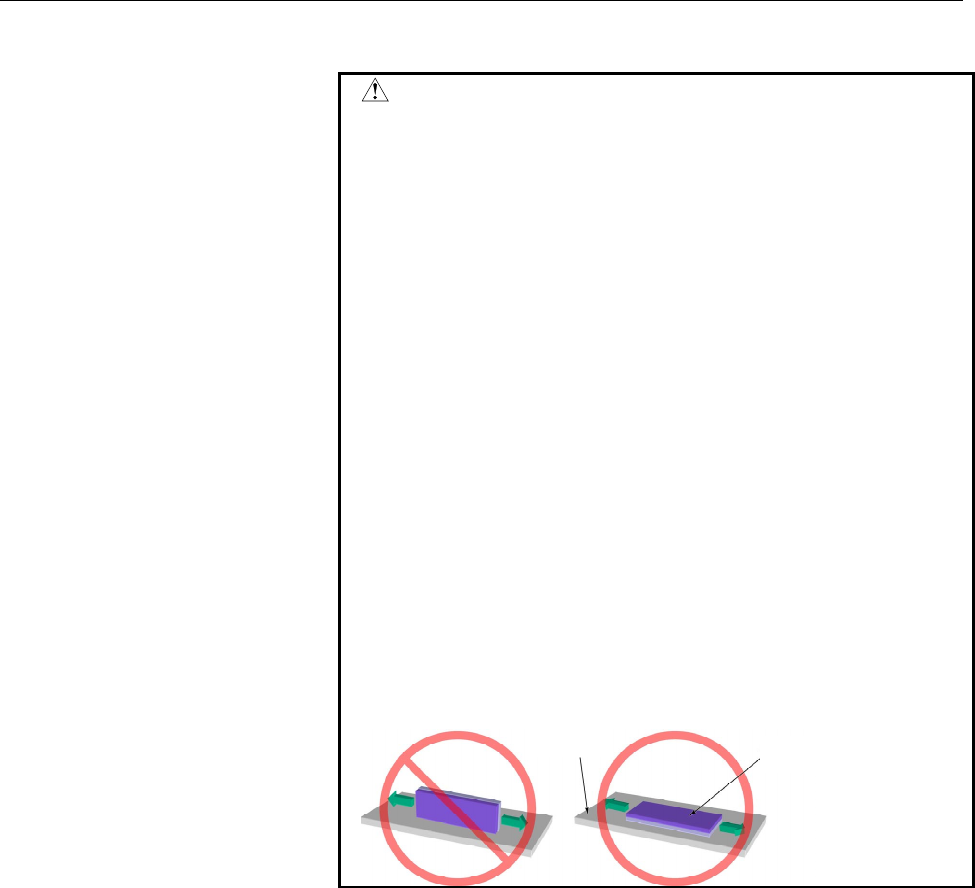

3 When moving a magnet plate on the surface of a
magnetic material such as a machine installation
face or work table, be sure to face the magnet side
of the magnet plate upward and face the iron side of
the magnet plate downward, and be sure to slide the
magnet plate horizontally relative to the move
direction. Do not tilt the magnet plate or slide it on an
edge of the magnet plate. Otherwise, the magnet
plate can be pulled to the magnetic material to catch
your hand or body, resulting in a serious injury.
Because of an enormous pulling force, it is difficult to
relieve your caught hand or body.
Surface of a
magnetic
material
Magnet plate
(The magnet side shall face up.)
