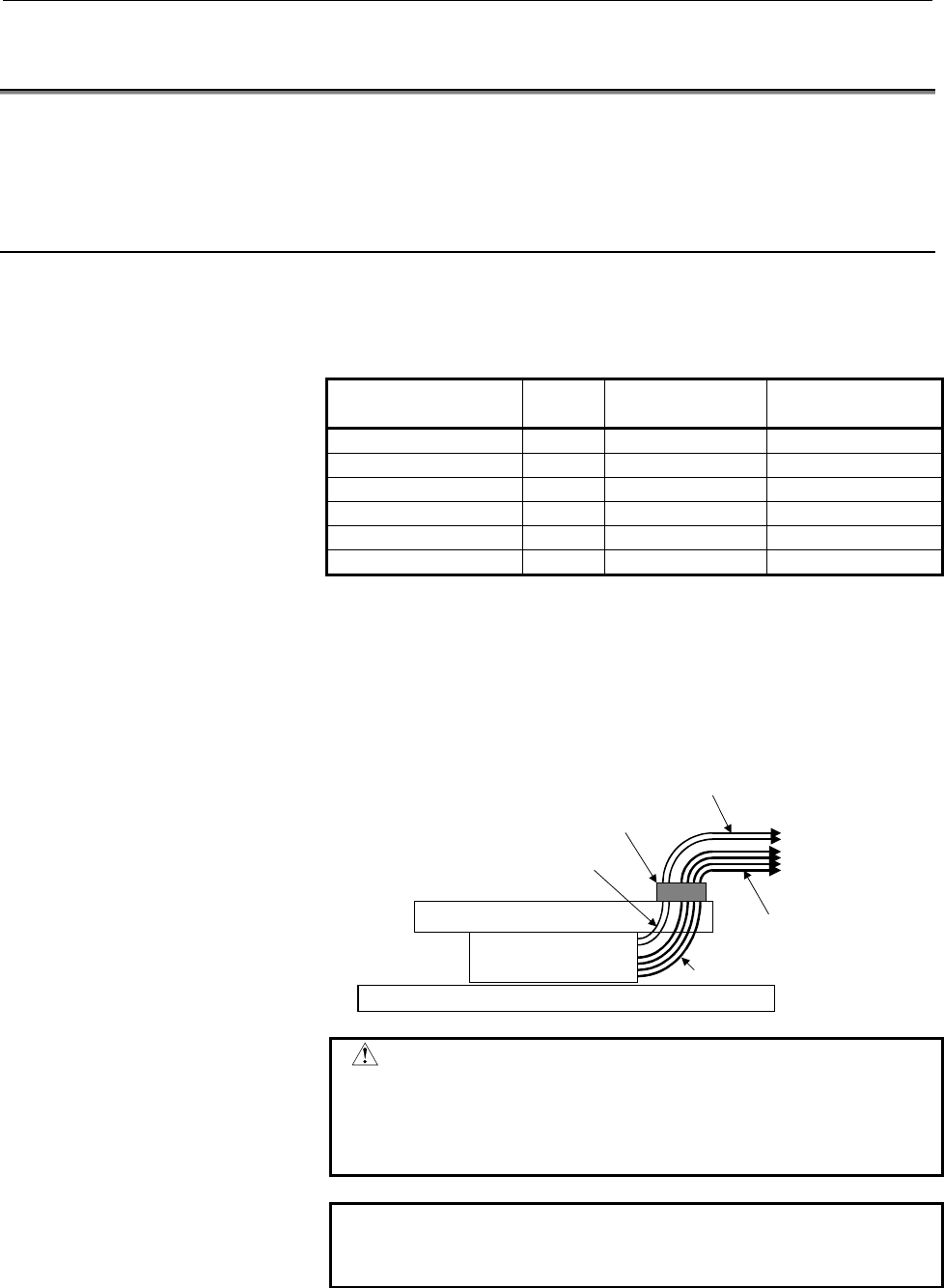

3.ASSEMBLY HANDLING, DESIGN, AND ASSEMBLY B-65222EN/03
- 134 -
3.3 POWER LEAD AND THERMOSTAT LEAD CONNECTION
This section describes the method of linear motor power lead
connection and thermostat lead connection. Connect the leads
correctly according to the model used.
3.3.1 300D/4, 600D/4, and 900D/4
From the coil slider, six leads are directly extended: four power leads
and two thermostat leads. The table below indicates the specifications
of the leads.
Lead type Sheath
color
Conductor cross
section (mm
2
)
Average outside
diameter (mm)
Power lead (U phase) Red 2.0 2.6
Power lead (V phase) White 2.0 2.6
Power lead (W phase) Black 2.0 2.6
Power lead (ground) Green 2.0 2.6
Thermostat lead 1 Black 0.35 1.28
Thermostat lead 2 Black 0.35 1.28
*1 No crimp terminal is supplied with any power or thermostat lead.
*2 The thermostat leads are nonpolarized.
When the coil slider is movable, relay the leads to movable cables
through an intermediate fixed terminal block. For conformance to the
CE marking, use a terminal block conforming to the European
standards, and make a PE connection securely.
Coil slider
Table (movable)
Magnet plate (fixed)
Lead for power
Lead for thermostat
Movable cable for power
Relay terminal block
Movable cables for
thermostat
To servo amplifier
To PMC
CAUTION
The leads for power are not movable cables. If the
leads are moved, the leads can be broken during
motor operation. So, when the coil slider is movable,
be sure to relay the leads to movable cables.
NOTE
For conformance to the CE marking, conform to
EN60204-1 for cabling.
