Linear Motor Series Descriptions Page 233

Descriptions
TITLE
DRAW
.
No.
4 / 6
Page
FANUC LTD
DESCRIPTIONDESIGNDATE
EDIT
C
hange
o
f
PE
line
color
o
f

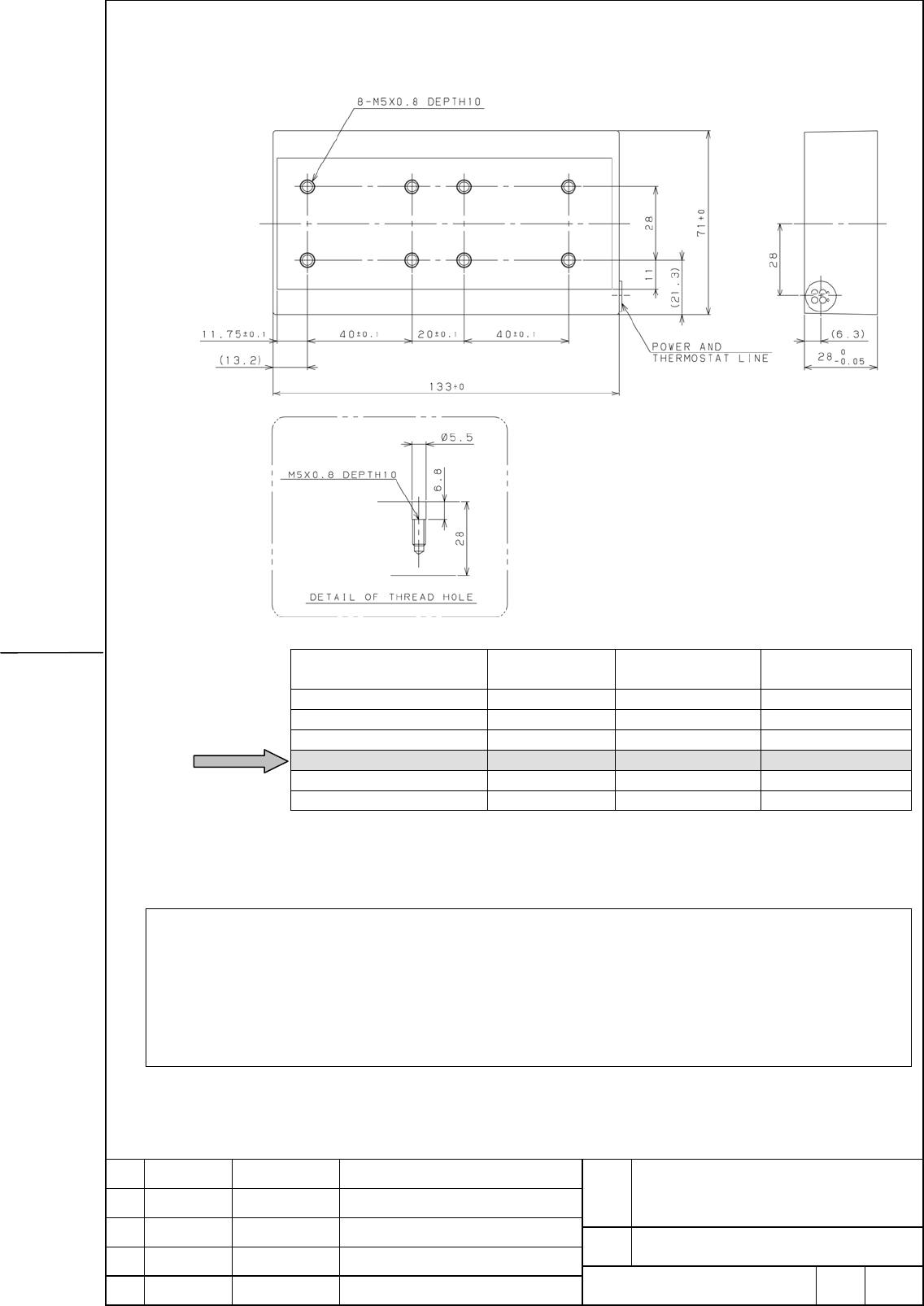

the small force linear motors
B-65222EN/03-001
Change of wire color of PE
li
Takeda
01.07.1301
Model 600D/4 (A06B-0422-B801)
Line type Sheath color
Conductor cross
section (mm
2
)
Average outside
diameter (mm)
Power line (U phase) Red 2.0 2.6
Power line (V phase) White 2.0 2.6
Power line (W phase) Black 2.0 2.6
Power line (ground) Green/Yellow 2.0 2.6
Thermostat line 1 Black 0.35 1.28
Thermostat line 2 Black 0.35 1.28
*1 The power and thermostat lines are about 350mm long.
*2 No crimp terminal is supplied with any power and thermostat line.
*3 The thermostat lines are non-polarized.
Note
1. To bring a corner of the coil slider into intimate contact with a peripheral part, recess the corner
of a part by 0.2 to 0.3.
2. This drawing contains no magnetic pole detector. To use an incremental linear encoder, a
magnetic pole detector is required. For the outline drawings of magnetic pole detectors, see the
subsection “Magnetic Pole Detector” below.
3. Always read and understand Part III, “HANDLING, DESIGN, AND INSTALLATION”, before
handling or installing the motor.
