Linear Motor Series Descriptions Page 151

Descriptions
3.ASSEMBLY HANDLING, DESIGN, AND ASSEMBLY B-65222EN/03
- 130 -

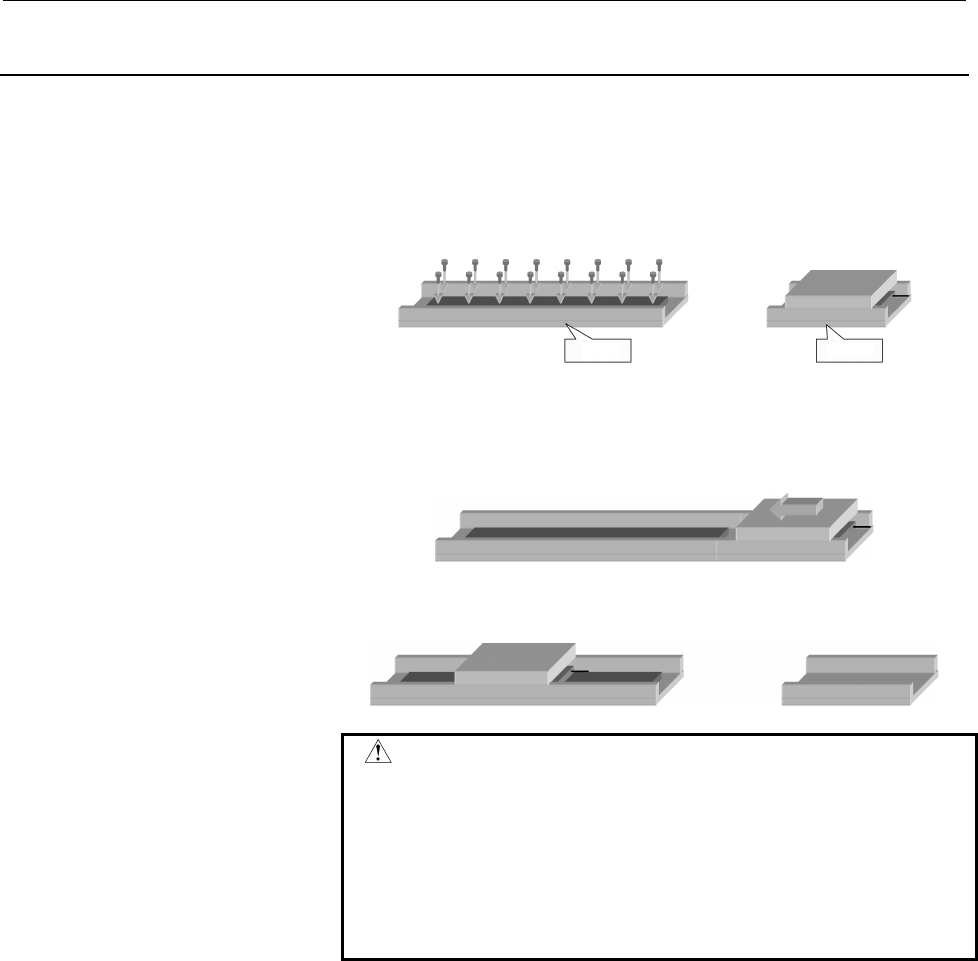

3.1.3 Procedure #3 for Mounting a Linear Motor on the Machine
This procedure mounts a coil slider and magnet plate separately then
performs integration.
<1> Mount a magnet plate on the actual axis, and mount a coil slider
onto the movable table on a temporary axis.
Actual axis
Temporary
axis
<2> Connect the temporary axis to the actual axis, then shift the
movable table to the actual axis. Note that when the movable
table is shifted, the movable table is pulled toward the magnet
plate by magnetic attraction.
<3> After shifting the movable table, disconnect the temporary axis.
CAUTION
Powerful magnetic attraction is exerted at all times.
When securing magnet plates and a coil slider, be
sure to securely tighten all screws. Do not tighten
the screws temporarily. Until the magnet plates have
been secured, do not remove the tin plate and
corrugated board attached onto the top face of each
magnet plate.
