B-65222EN/03 APPENDIX C.MAGNET PLATE SURFACE PROTECTION

- 201 -

C MAGNET PLATE SURFACE

PROTECTION

As shown below, the magnet side of a magnet plate (that faces the

coil slider) is completely coated with epoxy resin selected to endure a

severe use environment.

Iron plate (bottom)

Magnet

Epoxy resin

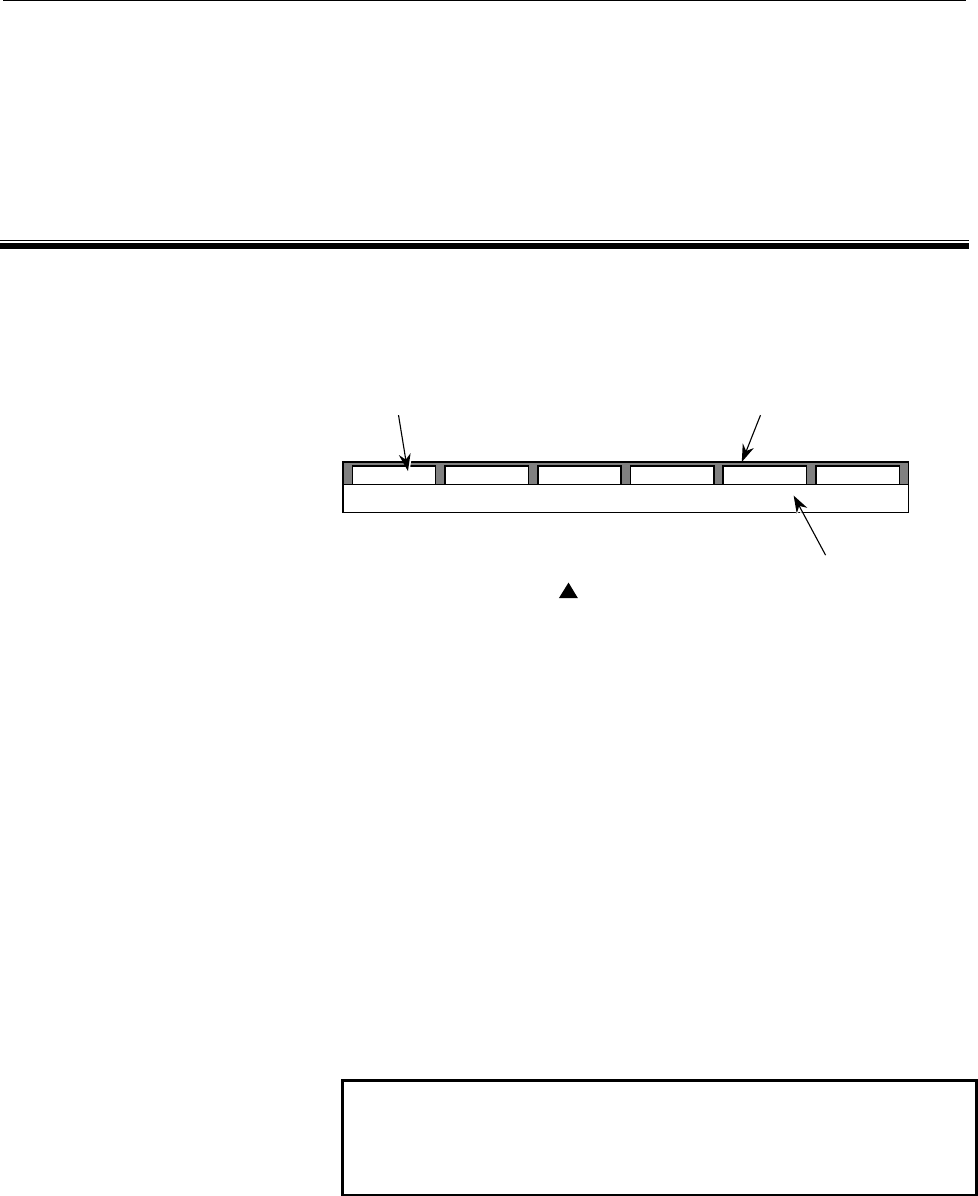

Cross section of a magnet plate

If foreign matter is caught between the coil slider and magnet plate,

epoxy resin protects the magnets. The most suitable type of epoxy

resin is selected. So, resin may be flawed or chipped, but a serious

and unrecoverable failure such as the peeling of the entire resin

coating involving other peripheral components is unlikely to occur. If

a slight flaw not extending to a magnet occurs, apply epoxy resin of

heat resistant type A or higher onto the flaw to recover the original

height. With such a remedy, the epoxy resin coating can be practically

used permanently.

If a damage that reaches a magnet occurs, a large and hard foreign

material is caught. In such a case, the probability that the coil slider is

also damaged is very high. In this case, perform maintenance

according to Part V, "MAINTENANCE". Moreover, take measures to

prevent foreign matter from being caught in order to protect against

similar trouble.

NOTE

It is recommended that periodic maintenance be

performed according to Part V, "MAINTENANCE" in

order to use the linear motor safely for a longer time.
