Linear Motor Series Descriptions Page 48

Descriptions
B-65222EN/03 SPECIFICATIONS 2.SPECIFICATIONS
- 27 -

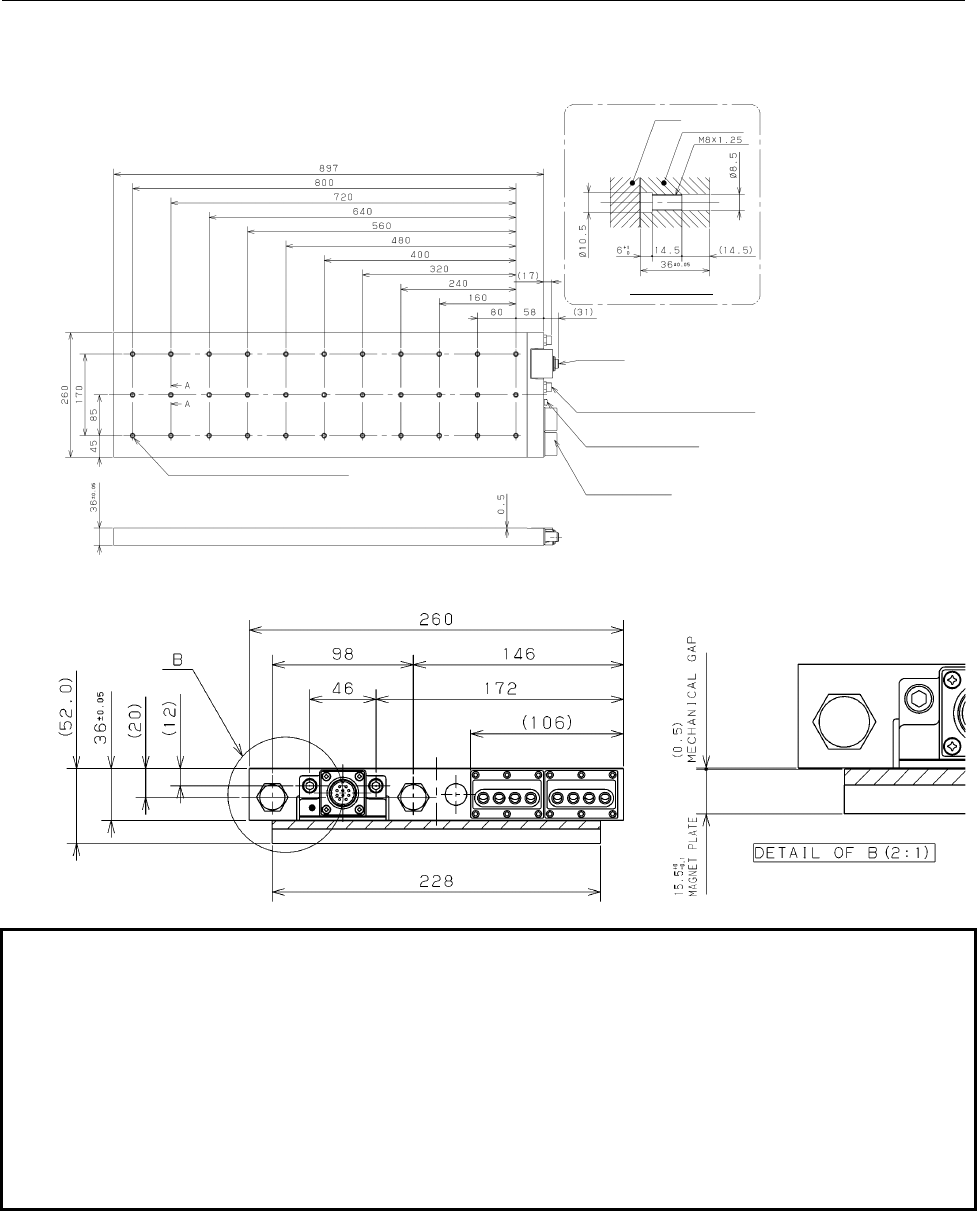

15000C/2 (A06B-0414-B901)
15000C/3 (A06B-0414-B811)
COOLING TUBE
11/16" - 16 UNIFIED EXTERNAL THREAD (2)
FOR COUPLING MANUFACTURED BY PARKER
(
#6-LHB3
)
TAPPED HOLE FOR MOUNTING M8
×
1.25 (33)
MAGNETIC POLE SENSOR
SECTION A-A
MAGNET PLATE
COIL SLIDER
THERMOSTAT CONNECTOR
POWER LINE TERMINAL
- Side view (reference drawing for installation)
NOTE
1 To bring a corner of the coil slider into intimate contact with a peripheral part, recess
the corner of the part by 0.2 to 0.3.
2 This slider contains a terminal for connecting power lines and a connector for
connecting a thermostat. For details, see Part III, "HANDLING, DESIGN, AND
INSTALLATION."
3 This drawing contains a magnetic pole sensor. When an absolute linear encoder is
used, the magnetic pole sensor is not required.
4 Always read and understand Part III, "HANDLING, DESIGN, and INSTALLATION,"
before handling or installing the motor.
