B-65222EN/03 SPECIFICATIONS 2.SPECIFICATIONS
- 43 -

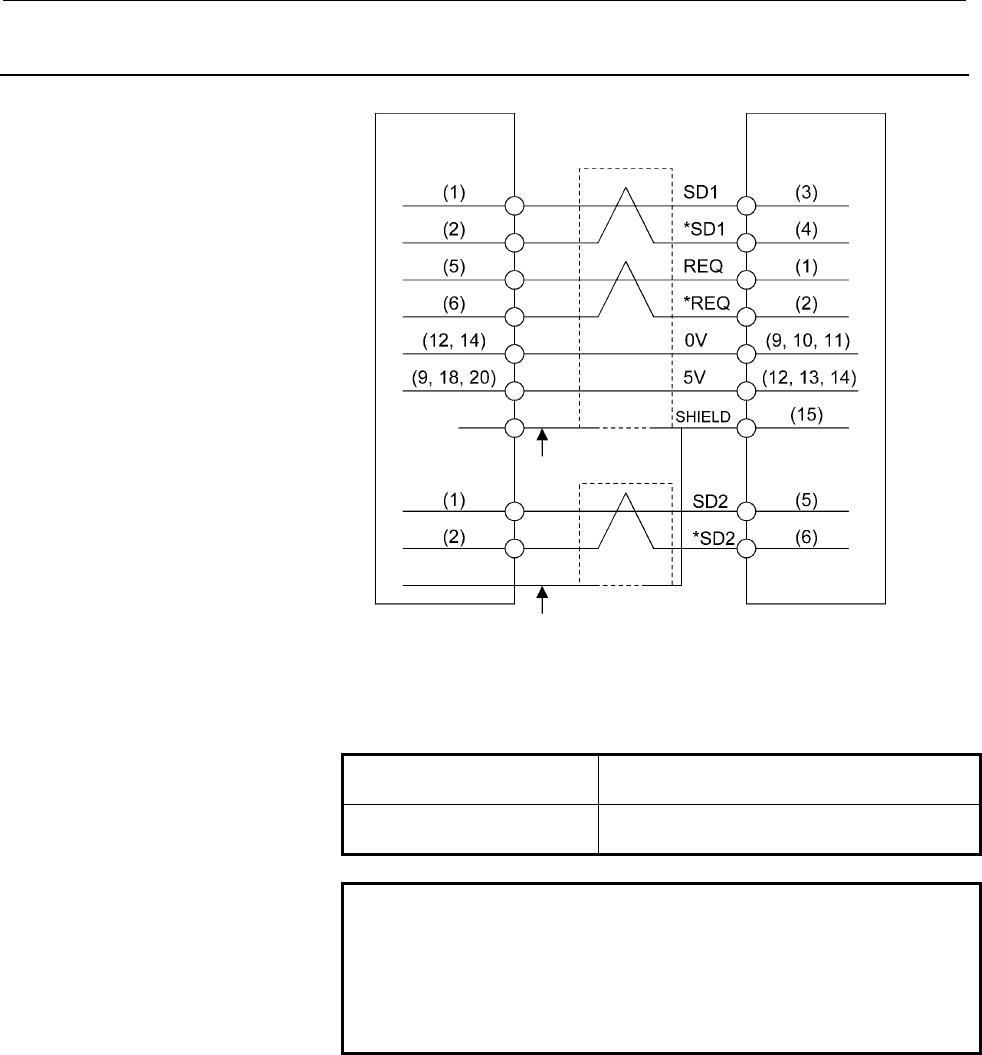

2.5.3 Cable K2 (for Position Detection Circuit A860-0333-T002)
Connector: RM21WTP-15S-(8)
Manufacturer: Hirose Electric Co., Ltd.
CNC/servo amplifier Position detection circuit
Grounded to the ground bar.
Connector: FI40-2015S
Connector cover: FI-20-CV
Manufacturer: Hirose Electric Co., Ltd.
Axis (2N+1)
(DSP N+1)
N: Natural number
Grounded to the ground bar.
Used wires
0V, 5V Nominal cross section:0.5mm
2
, at least three
wires each
SD1, *SD1, SD2, *SD2, REQ,
*REQ
Nominal cross section:0.18mm
2
, twisted pair
NOTE
SD2 and *SD2 are output to another driver with the
same logic signals as for SD1 and *SD1. In ordinary
cases, SD1 and *SD1 are connected to an axis
having an odd number of a DSP different from that
for SD2 and *SD2.
