B-63942EN/02 NC FUNCTION 3.INTERPOLATION FUNCTION

- 99 -

3.2 POSITIONING

This command moves a tool to the position in the workpiece

coordinate system specified with an absolute or an incremental

command at a rapid traverse rate.

In the absolute command, coordinate value of the end point is

programmed.

In the incremental command the distance the tool moves is

programmed.

Either of the following tool paths can be selected according to

parameter.

• Nonlinear interpolation type positioning

The tool is positioned with the rapid traverse rate for each axis

separately. The tool path is normally straight.

• Linear interpolation type positioning.

The tool is positioned within the shortest possible time at a speed

that is not more than the rapid traverse rate for each axis.

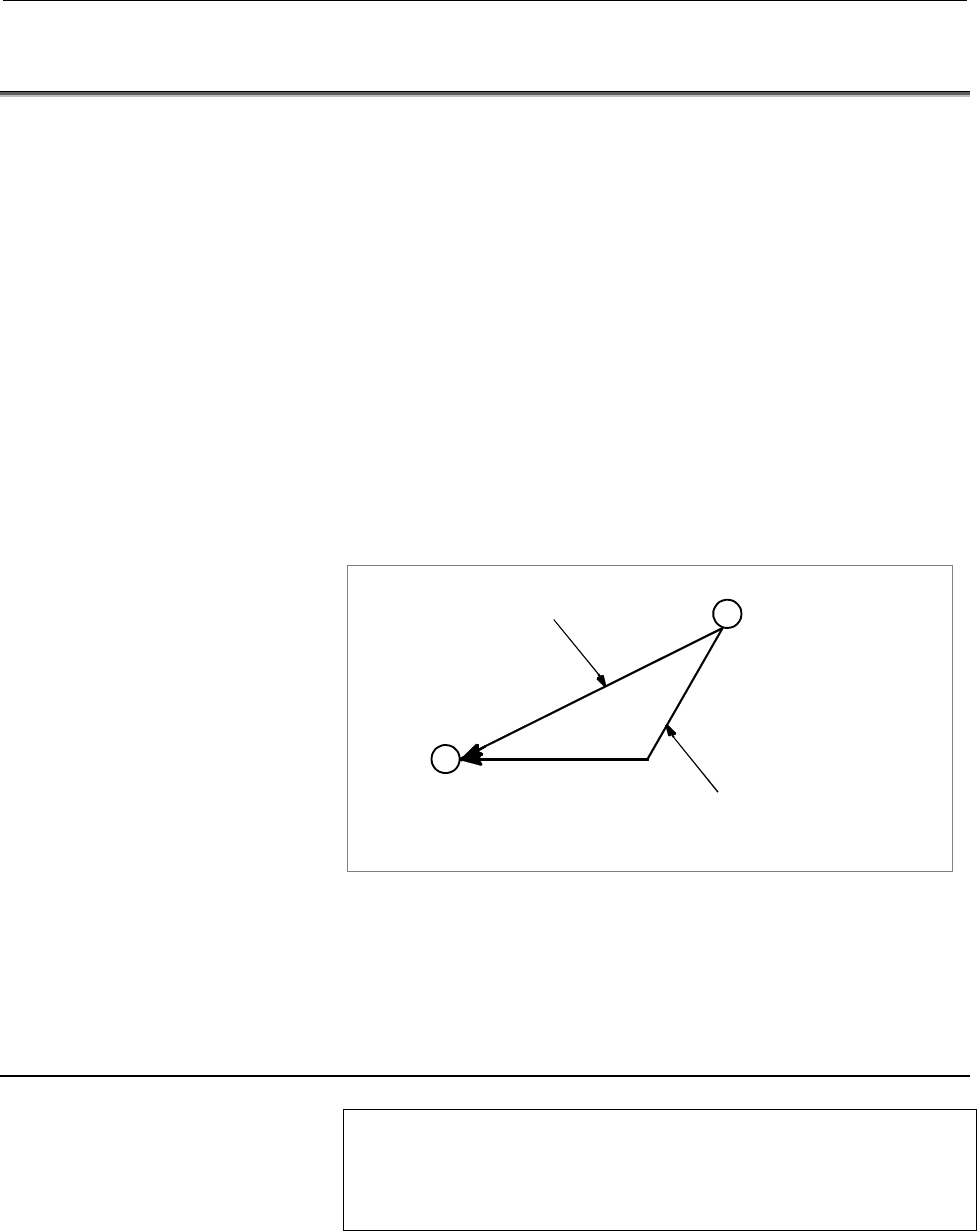

End point

Nonlinear interpolation type positioning

Start point

Linear interpolation type positioning

In the positioning mode based on G00, the machine is accelerated up

to a specified feedrate at the start of a block. At the end of the block,

the machine is decelerated to a stop to make an in-position check (to

see if the machine has arrived at a specified position).

By parameter setting, an in-position check for each block can be

disabled.

Format

G00 IP_ ;

IP_ : For an absolute command, the coordinates of an end

point, and for an incremental command, the distance

the tool moves.
