3.INTERPOLATION FUNCTION NC FUNCTION B-63942EN/02

- 126 -

3.27 POLYGON TURNING

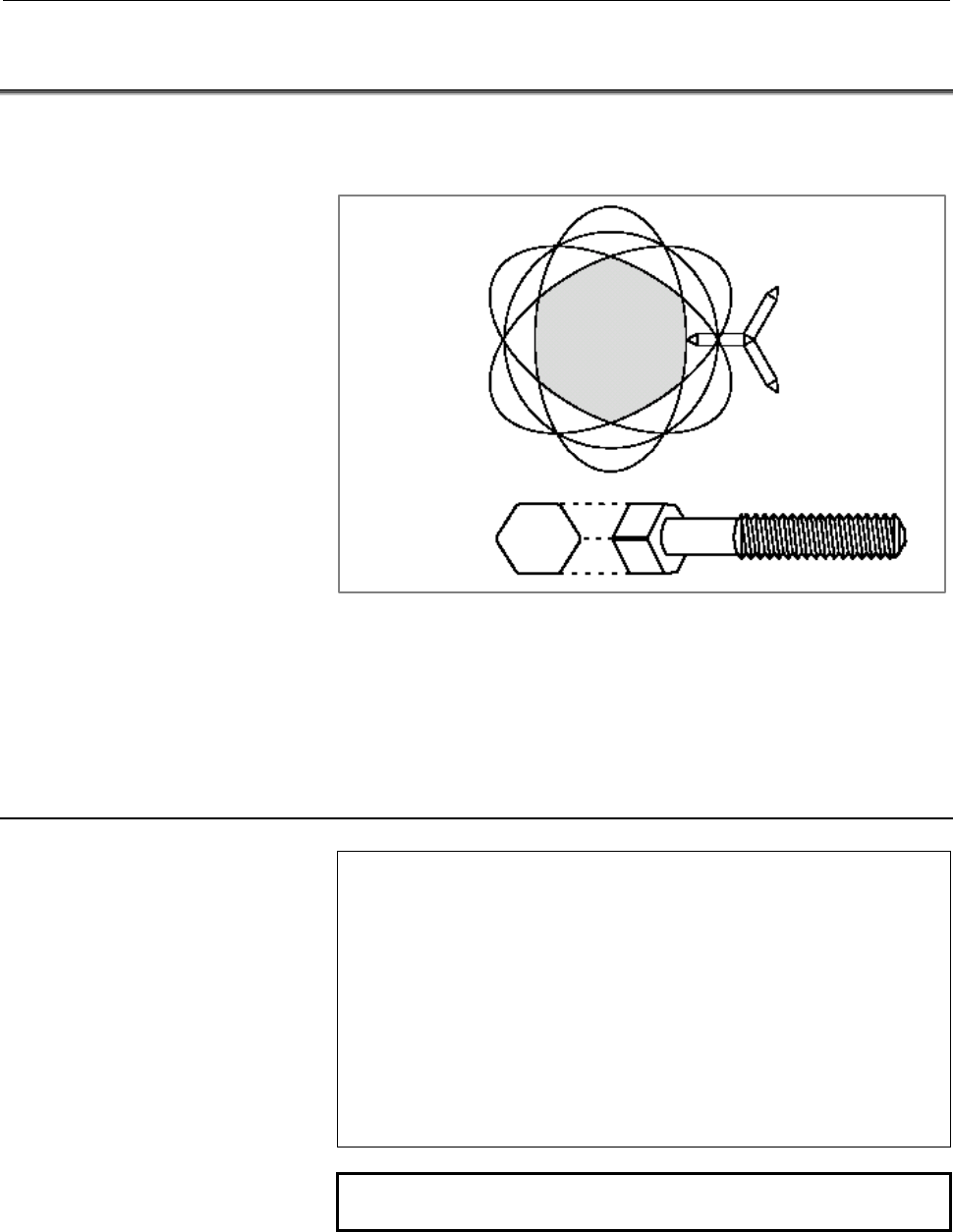

Polygon turning means machining a workpiece to a polygonal figure

by rotating the workpiece and tool at a certain ratio.

Workpiece

Tool

By changing conditions which are rotation ratio of workpiece and tool

and number of cutters, the workpiece can be machined to a square or

hexagon. The machining time can be reduced as compared with

polygonal figure machining using the polar coordinate interpolation.

The machined figure, however, is not exactly polygonal. Generally,

polygon turning is used for the heads of square and/or hexagon bolts

or hexagon nuts.

Format

G51.2 P_ Q_ ;

P,Q : Rotation ratio of spindle and Y-axis

Specify range:

P : Integer from 1 to 999

Q : Integer from -999 to -1 or from 1 to 999

When Q is a positive value, Y-axis makes positive

rotation.

When Q is a negative value, Y-axis makes negative

rotation.

G51.2 P_ Q_ ; Polygon turning cancel

NOTE

Specify G50.2 and G51.2 in a single block.
