3.INTERPOLATION FUNCTION NC FUNCTION B-63942EN/02

- 108 -

3.13 CYLINDRICAL INTERPOLATION

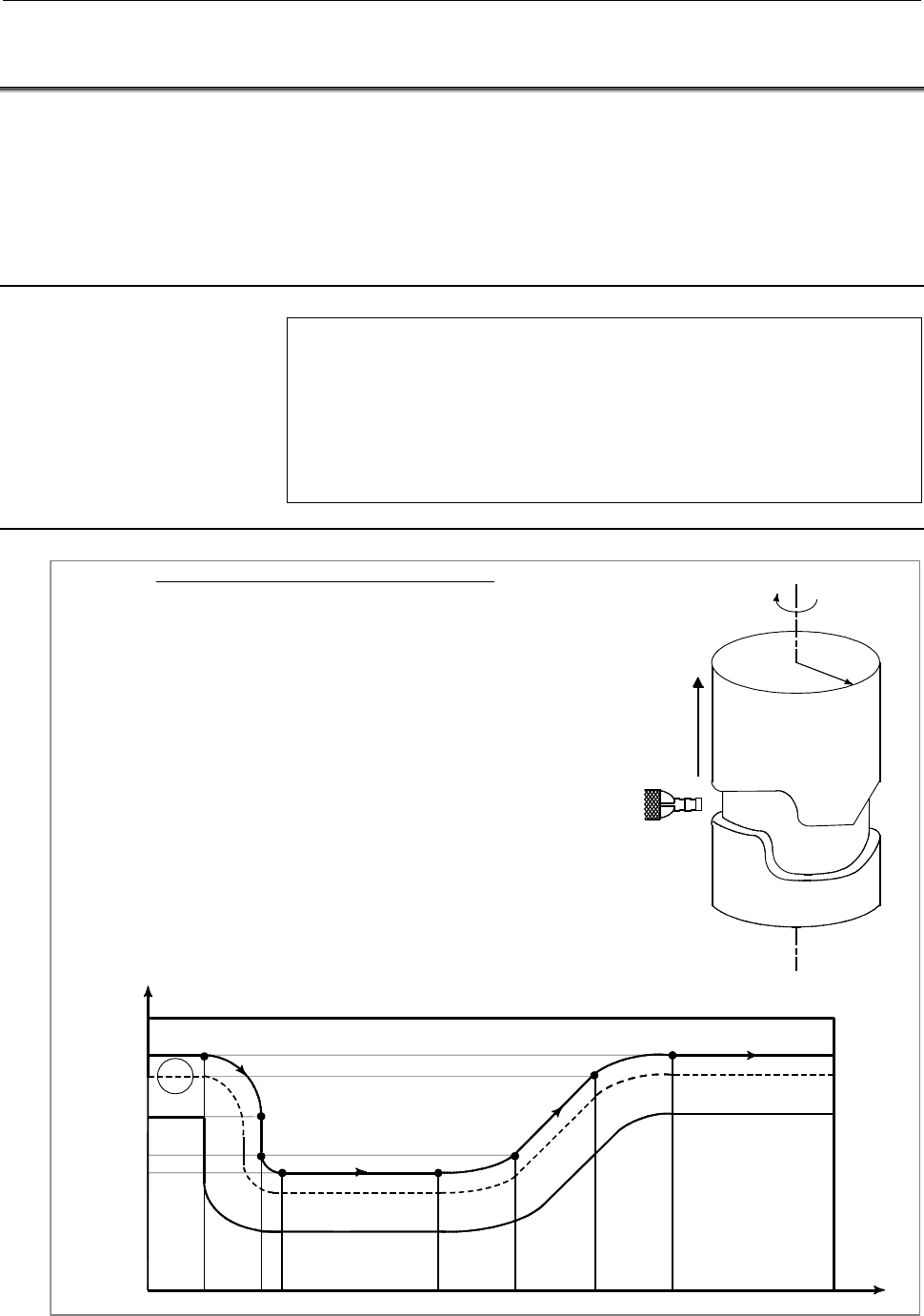

In cylindrical interpolation, the amount of movement of a rotary axis

specified by angle is converted to the amount of movement on the

circumference to allow linear interpolation and circular interpolation

with another axis. Since programming is enabled with the cylinder

side face expanded, programs such as a program for grooving

cylindrical cams can be created very easily.

Format

G07.1 IP r ; Starts the cylindrical interpolation mode

(enables cylindrical interpolation).

G07.1 IP 0 ; The cylindrical interpolation mode is cancelled.

IP : An address for the rotary axis

r : The radius of the workpiece

Specify G07.1 IPr ; and G07.1 IP0; in separate blocks.

Example

Example of a cylindrical interpolation programs

O0001 (CYLINDRICAL INTERPOLATION);

N01 G00 G90 Z100.0 C0 ;

N02 G01 G91 G18 Z0 C0 ;

N03 G07.1 C57299 ;

N04 G90 G01 G42 Z120.0 D01 F250 ;

N05 C30.0 ;

N06 G03 Z90.0 C60.0 R30.0 ;

N07 G01 Z70.0 ;

N08 G02 Z60.0 C70.0 R10.0 ;

N09 G01 C150.0 ;

N10 G02 Z70.0 C190.0 R75.0 ;

N11 G01 Z110.0 C230.0 ;

N12 G03 Z120.0 C270.0 R75.0 ;

N13 G01 C360.0 ;

N14 G40 Z100.0 ;

N15 G07.1 C0 ;

N16 M30 ;

Note) Sample program where the C axis is parallel to the X-axis.

230190

150

deg

110

120

270

N05

N06

N07

N08

N09

N10

N11

N12

N13

360
