8.TOOL FUNCTION / TOOL COMPENSATION FUNCTION NC FUNCTION B-63942EN/02

- 288 -

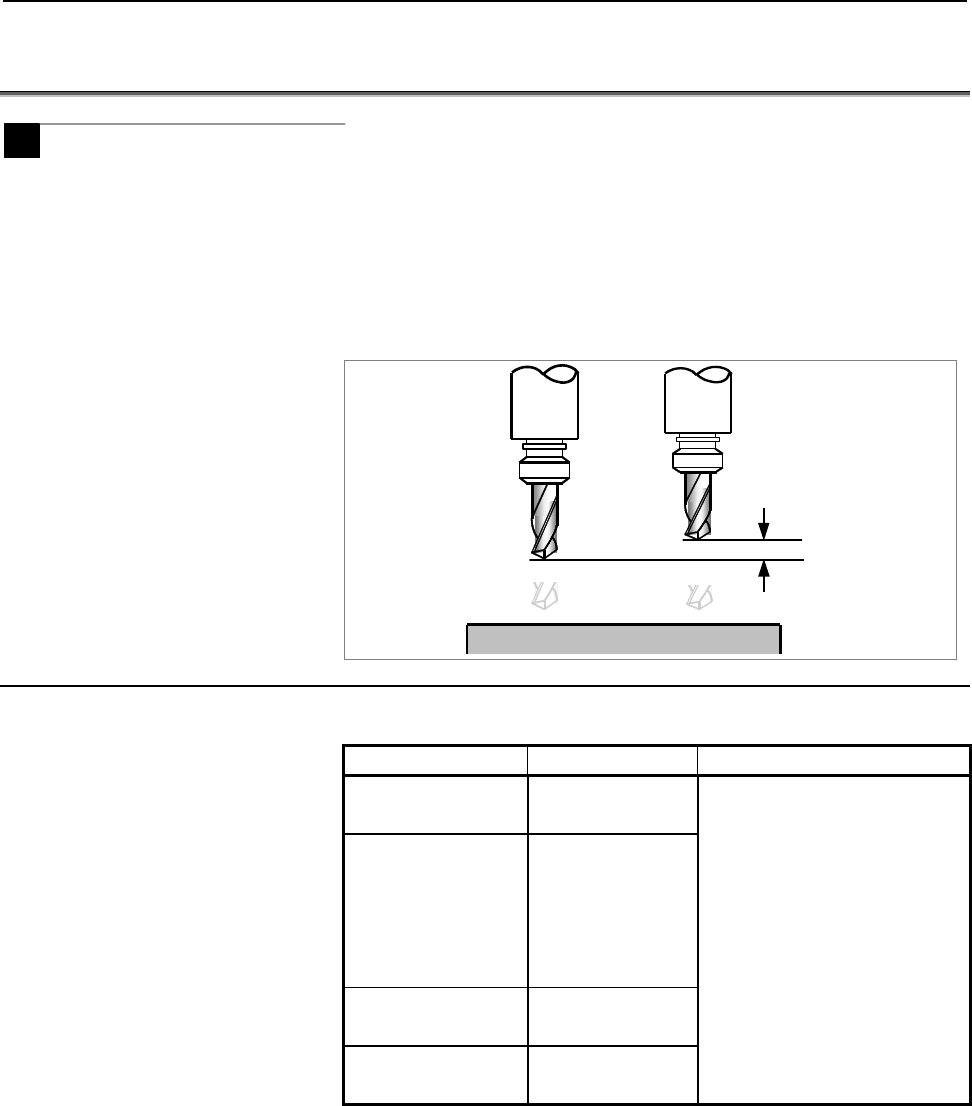

8.6 TOOL LENGTH COMPENSATION

When the difference between the tool length assumed at the time of

programming and the tool length of the tool actually used for

machining is set in offset memory, the difference in tool length can be

corrected without modifying the program.

G43 and G44 specify the offset direction, and a number following the

tool length compensation specification address (H code) specifies the

tool length compensation amount set in the offset memory.

Tool assumed at

programming

ctual tool

Set this difference as

tool length

compensation amount

Format

Type Format Description

Tool length

compensation A

G43 Z_ H_ ;

G44 Z_ H_ ;

Tool length

compensation B

G17 G43 Z_ H_ ;

G17 G44 Z_ H_ ;

G18 G43 Y_ H_ ;

G18 G44 Y_ H_ ;

G19 G43 X_ H_ ;

G19 G44 X_ H_ ;

Tool length

compensation C

G43 α_H_ ;

G44 α_H_ ;

Tool length

compensation cancel

G49 ; or H0 ;

G43 : Positive offset

G44 : Negative offset

G17 : XY plane selection

G18 : ZX plane selection

G19 : YZ plane selection

α : Address of a specified axis

H : Address for specifying the

tool length compensation

value

X, Y, Z : Offset move command
