B-63942EN/02 NC FUNCTION 5.PROGRAM INPUT

- 233 -

5.36.5 End Face Peck Drilling Cycle

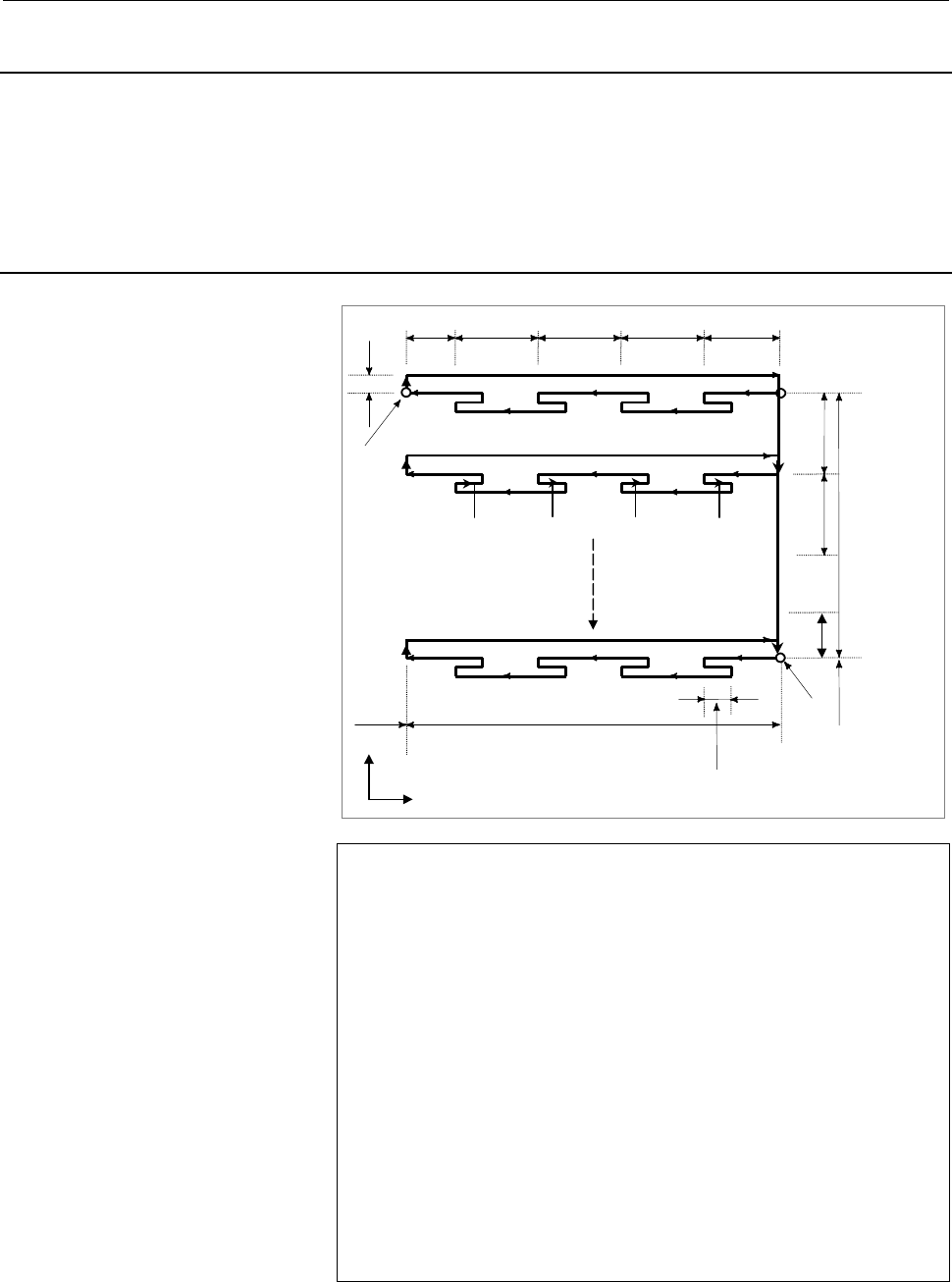

The operation shown in the figure below is performed according to the

command described below. This function enables chip breaking in

outer diameter cutting. If the second axis on the plane (X-axis (U-

axis) for the ZX plane) and address P are omitted, operation is

performed only along the first axis on the plane (Z-axis for the ZX

plane), that is, a peck drilling cycle is performed.

Format

U/2

∆d

∆

i’

∆

(R)

(F)

(R)

(F)

∆

[0 < ∆k’ ≤ ∆k]

(R)

[0 < ∆i’ ≤ ∆i]

(R) ... Rapid traverse

(F) ... Cutting feed

G74R (e) ;

G74X(U)_ Z(W)_ P(∆i) Q(∆k) R(∆d) F (f ) ;

e : Return amount

X_,Z_ : Coordinate of the second axis on the plane (X-axis

for the ZX plane) at point B and

Coordinate of the first axis on the plane (Z-axis for

the ZX plane) at point C

U_,W_ : Travel distance along the second axis on the plane

(U for the ZX plane) from point A to B

Travel distance along the first axis on the plane (W

for the ZX plane) from point A to C

∆i : Travel distance in the direction of the second axis on

the plane (X-axis for the ZX plane)

∆k : Depth of cut in the direction of the first axis on the

plane (Z-axis for the ZX plane)

∆d : Escaping amount of the tool at the cutting bottom

f : Feedrate
