B-63942EN/02 NC FUNCTION 3.INTERPOLATION FUNCTION

- 125 -

3.26 CIRCULAR THREADING

Using the G35 and G36 commands, a circular thread, having the

specified lead in the direction of the major axis, can be machined.

L : Lead

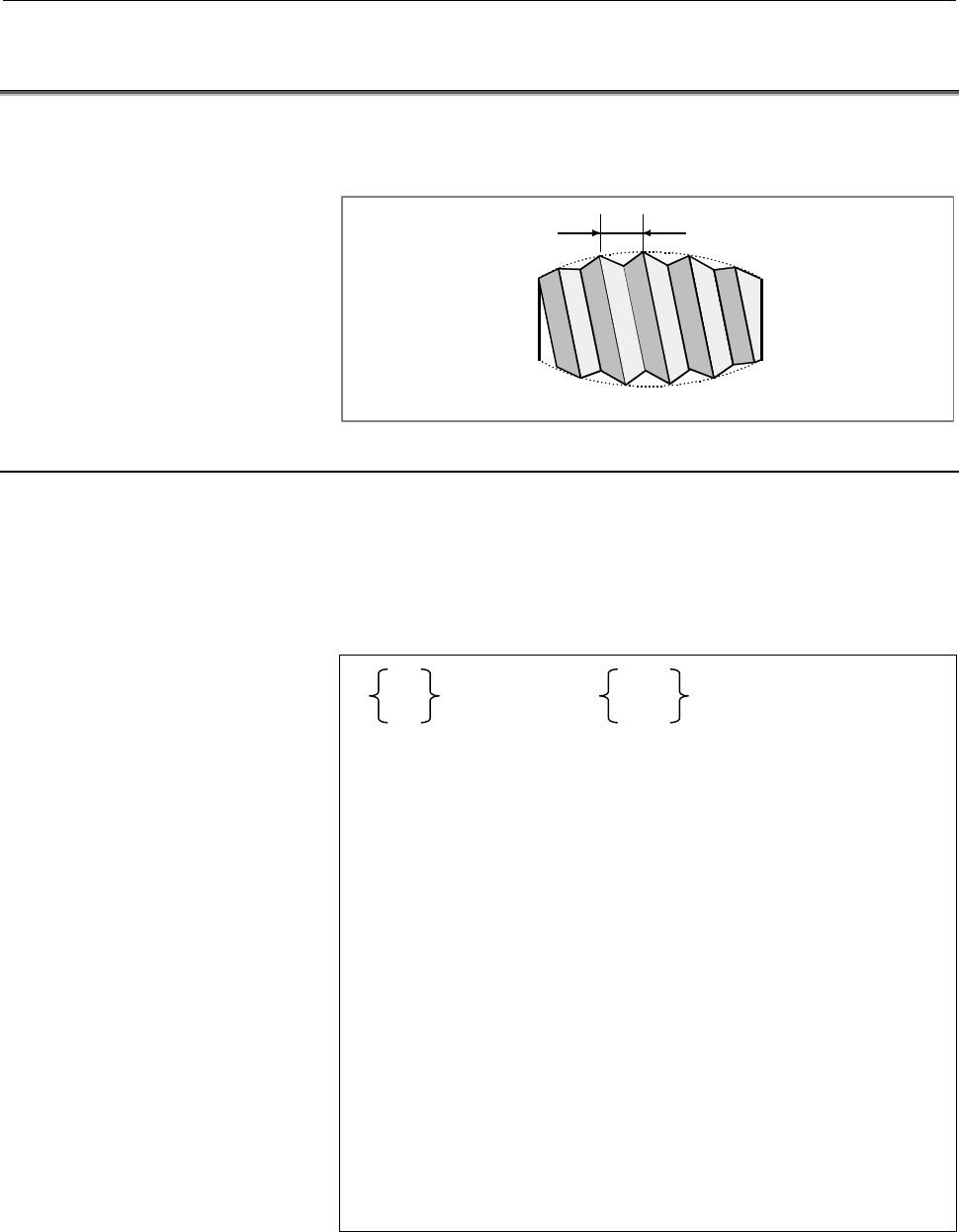

Fig. 3.26 (a) Example of circular threading

Format

A sample format for the G18 plane (Z-X plane) is indicated below.

When using the format for the G17 plane (X-Y plane), change the

addresses Z, X, K, and I to X, Y, I, and J respectively. When using

the format for the G19 plane (Y-Z plane), change the addresses Z, X,

K, and I to Y, Z, J, and K respectively.

G35

G36

X(U)_ Z(W) _

I_ K_

F_ Q_ ;

G35 : Clockwise circular threading command

G36 : Counterclockwise circular threading

command

X(U), Z(W) : Specify the arc end point (in the same way

as for G02, G03).

I,K : Specify the arc center relative to the start

point, using relative coordinates (in the same

way as for G02, G03).

R : Specify the arc radius.

F : Specify the lead in the direction of the major

axis.

Q : Specify the shift of the threading start angle

(0° to 360°, with least input increment of

0.001) (The value cannot be programmed

with a decimal point.)

Note) U and W can be used only with the lathe system.
