B-63942EN/02 NC FUNCTION 1.CONTROLLED AXIS

- 63 -

1.35 STORED STROKE CHECK 2 (G22, G23)

For stored stroke check 2, the outside or inside of the area specified by

parameters or a program is defined as the forbidden area. As a limit

position, specify a distance from the origin of the machine coordinate

system. This function is enabled after manual reference position

return is performed at power-on. When the limits are specified in a

program, they can be set for the X-, Y-, and Z-axes. For this reason,

the forbidden area can be changed according to the workpiece.

Whether to define the inside or outside of the specified area as the

forbidden area is determined by setting the corresponding parameter.

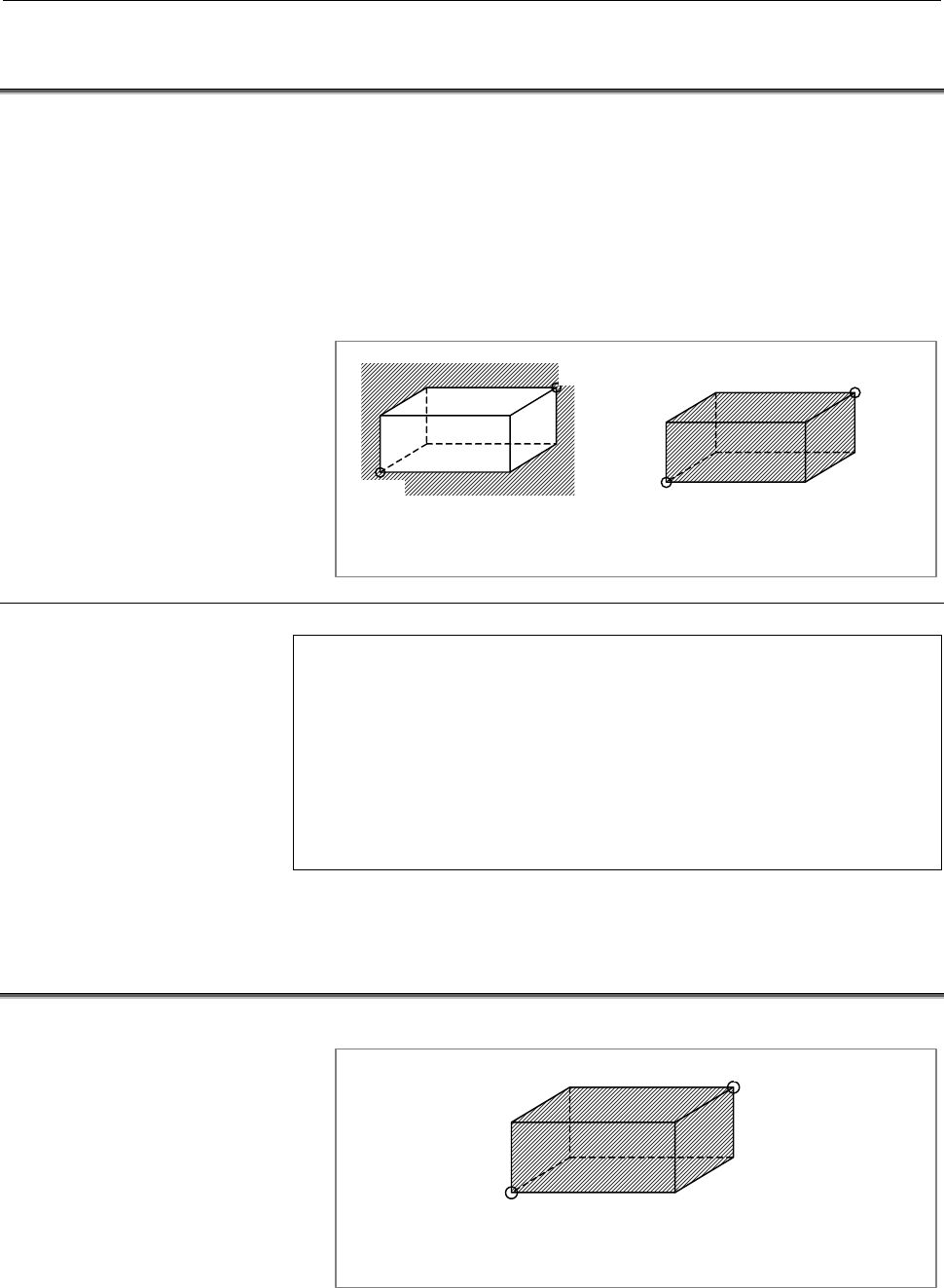

(X,Y,Z)

When the outside of the

specified area is defined as

the forbidden area.

When the inside of the

specified area is defined as

the forbidden area.

(I,J,K)

(X,Y,Z)

Format

G22 X_ Y_ Z_ I_ J_ K_ ; Stored stroke check 2 on

X, Y, Z : Coordinates in the + direction of stored stroke check 2

I, J, K : Coordinates in the - direction of stored stroke check 2

The address is X, Y, Z, I, J, or K. X and I, Y and J, and Z and K

specify a forbidden area for the X-axis, Y-axis, and Z-axis of the

basic three axes, respectively. If an address is omitted, a stroke

check is make according to the parameter settings.

G23 ; Stored stroke check 2 off

1.36 STORED STROKE CHECK 3

The inside of a parameter-set area is a forbidden area.

)

When the inside of the specified area is

defined as the forbidden area.

)
