Series 30i/300i/300is - Model A Descriptions Page 278

Descriptions

Page of 537

/ 537

5.PROGRAM INPUT NC FUNCTION B-63942EN/02

- 248 -

5.44 TILTED WORKING PLANE COMMAND

When a figure such as a hole or pocket is cut on a plane tilted relative

to the reference surface of the workpiece, this function defines a

coordinate system (referred to a "feature coordinate system") tied to

the plane. By specifying a position in such a coordinate system, a

program can be created more easily.

A feature coordinate system is defined on a workpiece coordinate

system.

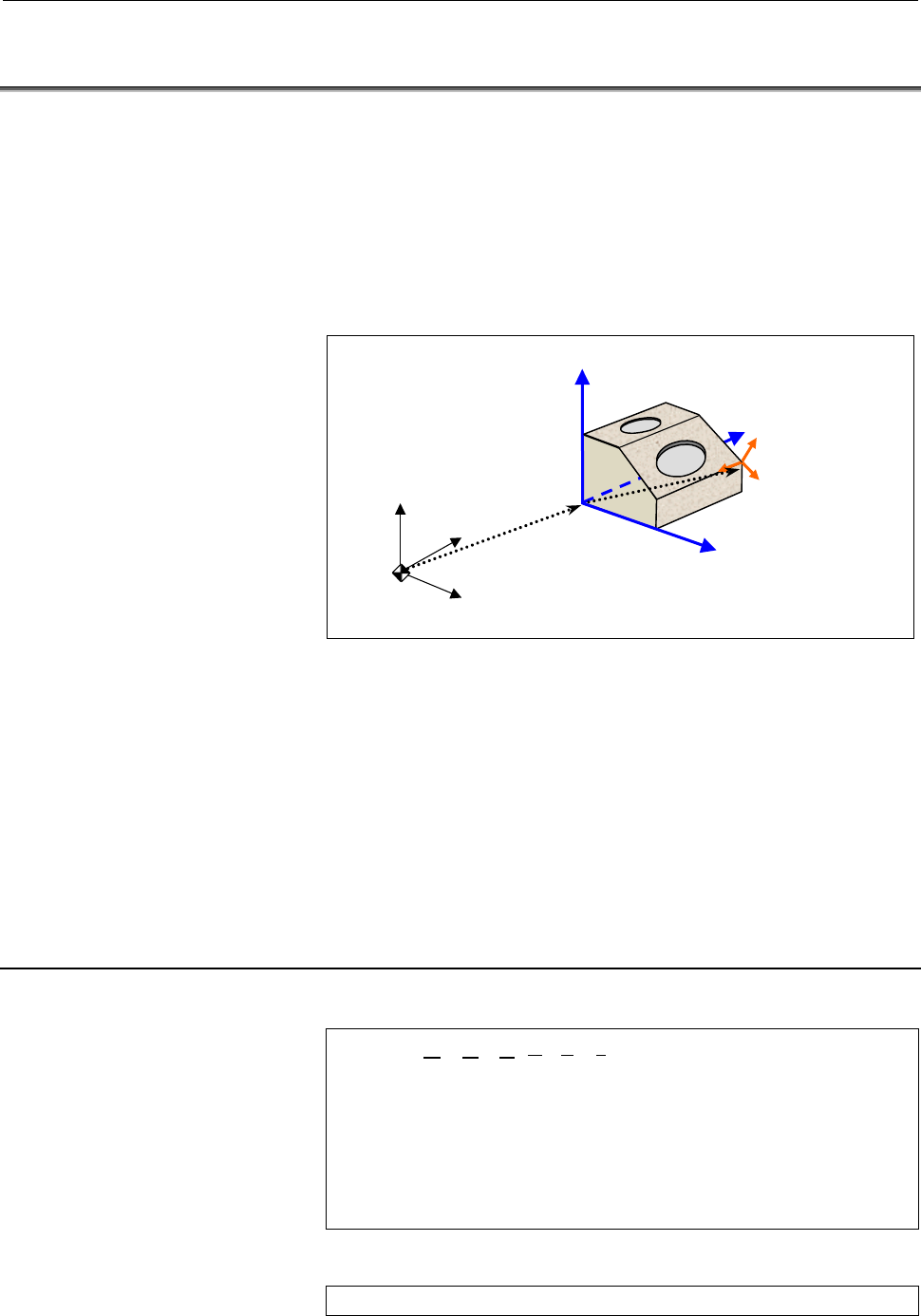

See the figure below for the relationship between a feature coordinate

system and workpiece coordinate system.

Feature coordinate

system (G68.2)

Machine coordinate system

Workpiece coordinate system (G54)

This function is applicable to the following machine configurations.

(See above figure.)

<1> Tool rotation type machine controlled with two tool rotation

axes

<2> Table rotation type machine controlled with two table rotation

axes

<3> Mixed-type machine controlled with one tool rotation axis and

one rotary axis

The function can also be used for a machine configuration in which

the rotary axis for controlling the tool does not intersect the rotary axis

for controlling the table.

Format

- Feature coordinate system setting

G68.2 X

Iα Jβ Kγ ; Feature coordinate

: system setting

G69 ; Cancels the feature

coordinate system setting.

X, Y, Z : Feature coordinate system origin

I, J, K : Euler's angle for determining the orientation of the

feature coordinate system

- Tool axis direction control

G53.1 ; Controls the tool axis direction.
