B-63942EN/02 APPENDIX B.LIST OF FUNCTIONS AND PROGRAM FORMAT

- 411 -

(5/10)

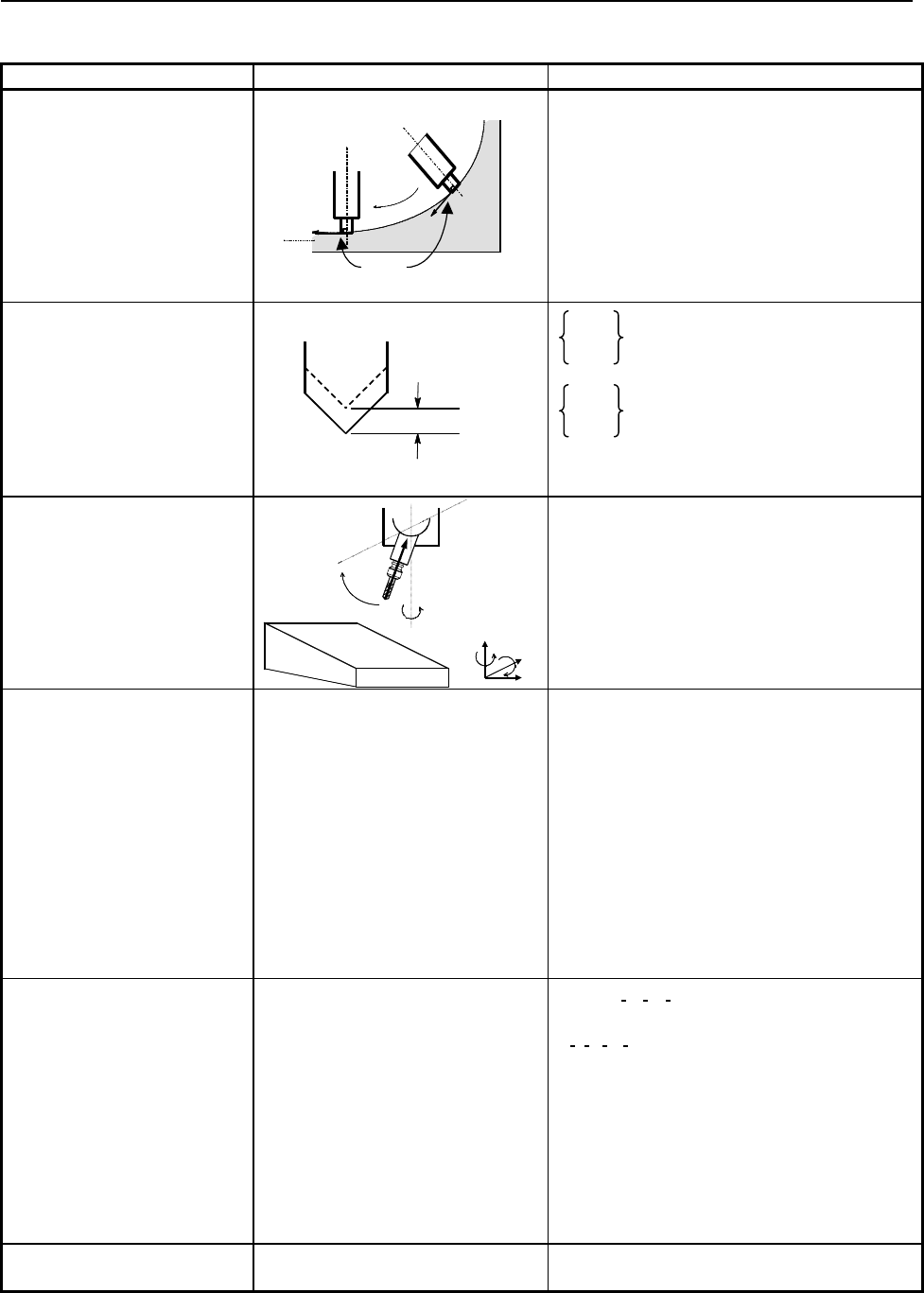

Functions Illustration Program format

Normal direction control

(G40.1, G41.1, G42.1)

Too l

C-axis

Programmed

path

Normal direction (in

which the tool moves

)

G41.1 ; Normal direction control on : right

G42.1 ; Normal direction control on : left

G40.1 ; Normal direction control cancel

Tool length compensation

(G43, G44, G49)

Compensation

G43

Z_ H_ ;

G44

G43

H_ ;

G44

H : Tool compensation number

G49 : Cancel

Tool length compensation in

tool axis direction

(G43.1)

Tool axis direction

Workpiece

G43.1 H_ ; Tool length compensation in tool

axis direction

H : Compensation number

G49 ; Compensation cancel

Tool center point control

(TYPE1)

(G43.4)

G43.4 IP α β H ;

Tool center point control (TYPE1) start

IP α β ;

IP : In the case of an absolute command, the

coordinate value of the end point of the

tool tip movement

In the case of an incremental command,

the amount of the tool tip movement

α, β :In the case of an absolute command, the

coordinate value of the end point of the

rotation axes

In the case of an incremental command,

the amount of the rotation axis movement

H : Tool compensation number

Tool center point control

(TYPE2)

(G43.5)

G43.5 IP

H Q ;

Tool center point control (TYPE2) start

I J K ;

IP : In the case of an absolute command, the

coordinate value of the end point of the

tool tip movement

In the case of an incremental command,

the amount of the tool tip movement

I,J,K : Tool axis direction at the block end point

as seen from the programming

coordinate system

H : Tool compensation number

Q : Inclination angle of the tool (in degrees)

Tool offset

(G43.7)

• For lathe only
