PROGRAMMING

B–64144EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

135

A canned cycle consists of a sequence of six operations (Fig. 13.1 (a))

Operation 1 Positioning of axes X and Y

(including also another axis)

Operation 2 Rapid traverse up to point R level

Operation 3 Hole machining

Operation 4 Operation at the bottom of a hole

Operation 5 Retraction to point R level

Operation 6 Rapid traverse up to the initial point

Operation 1

Operation 2

Operation 3

Operation 4

Operation 5

Operation 6

Rapid traverse

Feed

Initial level

Point R level

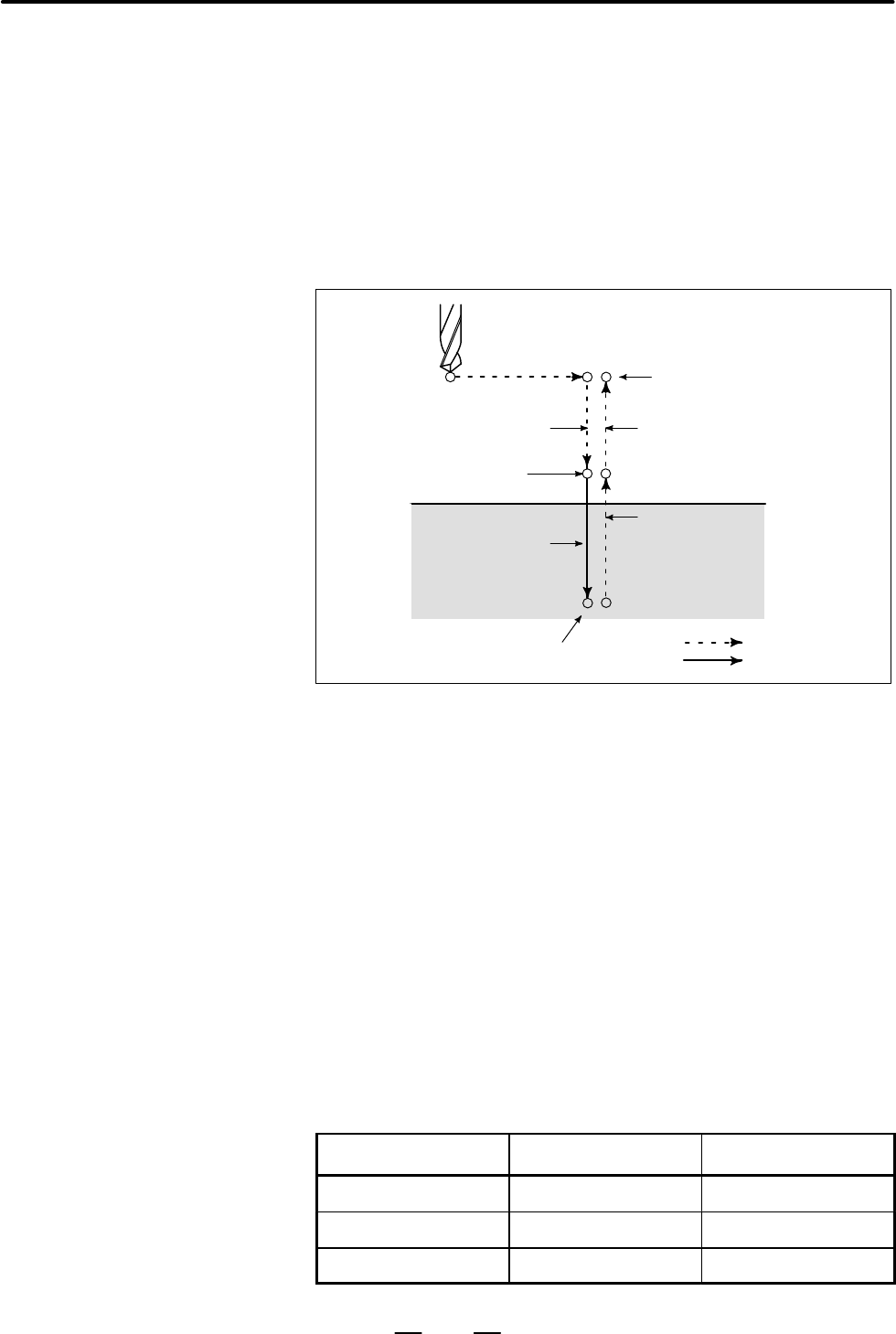

Fig. 13.1 Canned cycle operation sequence

The positioning plane is determined by plane selection code G17, G18,

or G19.

The positioning axis is an axis other than the drilling axis.

Although canned cycles include tapping and boring cycles as well as

drilling cycles, in this chapter, only the term drilling will be used to refer

to operations implemented with canned cycles.

The drilling axis is a basic axis (X, Y, or Z) not used to define the

positioning plane.

The basic axis used as the drilling axis is determined according to the axis

address for the drilling axis specified in the same block as G codes G73

to G89.

If no axis address is specified for the drilling axis, the basic axis is

assumed to be the drilling axis.

Table 13.1 (b) Positioning plane and drilling axis

G code Positioning plane Drilling axis

G17 XY plane Z

G18 ZX plane Y

G19 YZ plane X

Explanations

D Positioning plane

D Drilling axis
