In coordinate system rotation mode, G codes related to reference position

return (G27, G28, G29, G30, etc.) and those for changing the coordinate

system (G52 to G59, G92, etc.) must not be specified. If any of these G

codes is necessary, specify it only after canceling coordinate system

rotation mode.

The first move command after the coordinate system rotation cancel

command (G69) must be specified with absolute values. If an incremental

move command is specified, correct movement will not be performed.

N1 G92 X*5000 Y*5000 G69 G17 ;

N2 G68 X7000 Y3000 R60000 ;

N3 G90 G01 X0 Y0 F200 ;

(G91X5000Y5000)

N4 G91 X10000 ;

N5 G02 Y10000 R10000 ;

N6 G03 X*10000 I*5000 J*5000 ;

N7 G01 Y*10000 ;

N8 G69 G90 X*5000 Y*5000 M02 ;

Tool path when the incremental

command is designated in the N3

block (in parenthesis)

Originally programmed tool path

Center of rotation

(7000,3000)

Tool path after rotation

60,

(–500.0,–500.0)

(0,0)

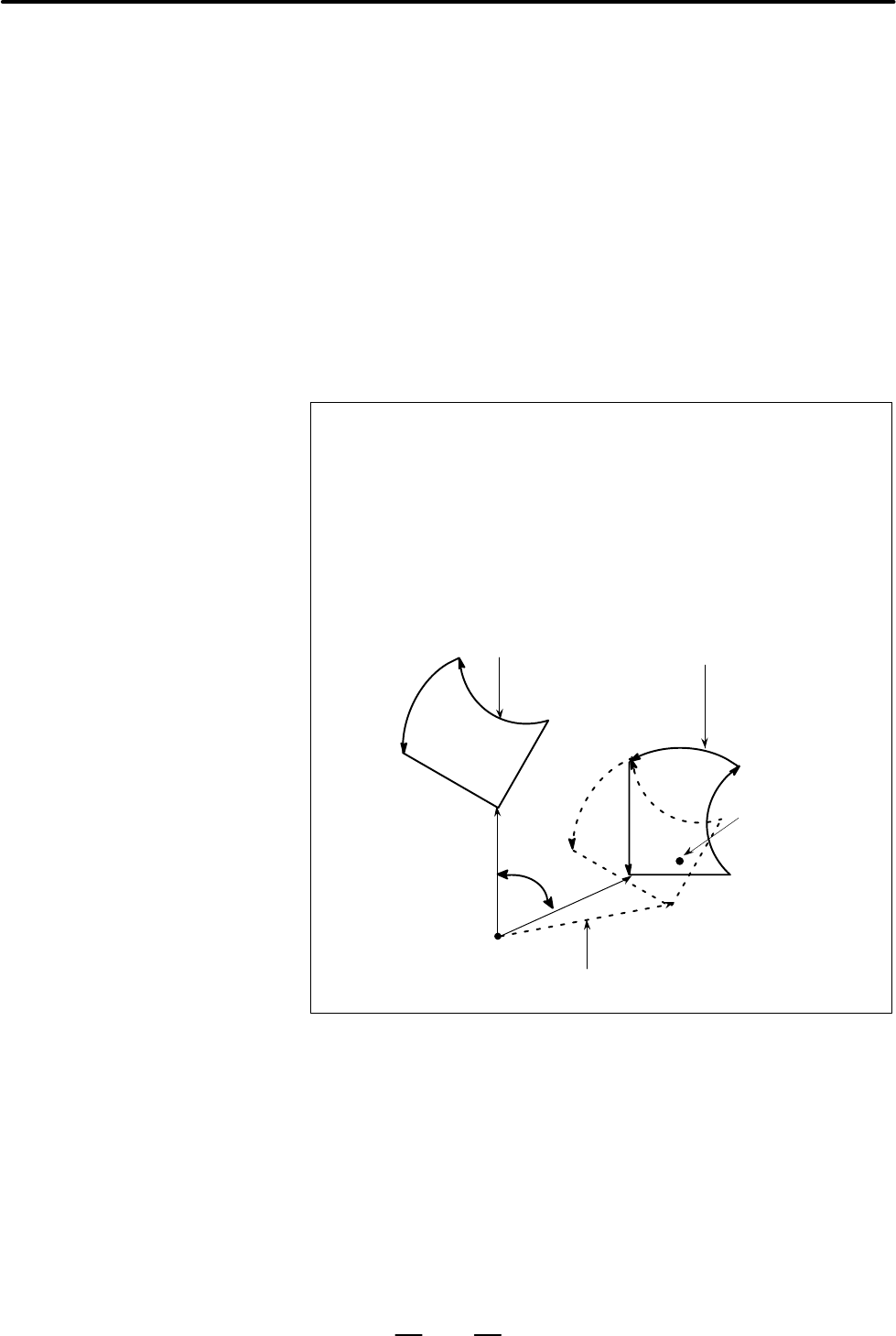

Fig. 14.8 (c) Absolute/incremental command during

coordinate system rotation

Limitations

D Commands related to

reference position return

and the coordinate

system

D Incremental command

Explanations

Absolute/Incremental

position commands
