B-63784EN/01 PROGRAMMING 5.FEED FUNCTIONS

- 161 -

5.4.2 Rapid Traverse Override

The rapid traverse rate can be overridden as follows:

F0, F1%, 50%, 100%

F0 : Feedrate to be set for each axis (parameter No. 1421)

F1 : Percentage (parameter No. 1412)

or,0% to 100% (in steps of 1%) by setting bit 0 (ROV) of parameter No.

1402

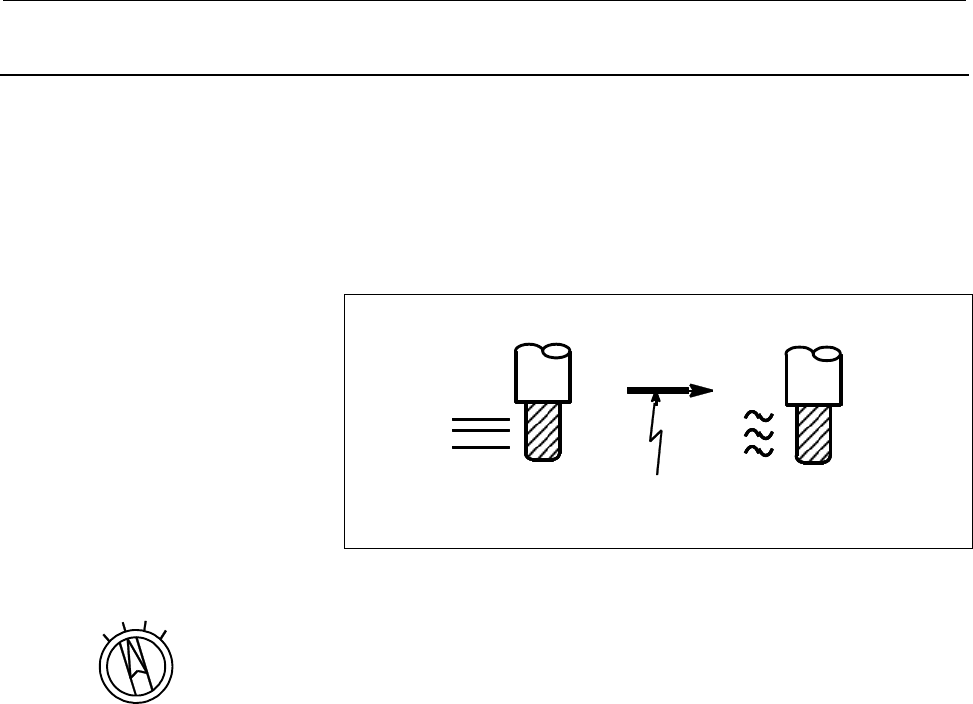

Fig. 5.4.2 (a) Rapid traverse override

During rapid traverse, a rapid traverse override of 0% to 100% can be

applied. Select a desired feedrate with the override switch.

Refer to the appropriate manual provided by the machine tool builder

for rapid traverse override.

Explanation

The following types of rapid traverse are available. Rapid traverse

override can be applied for each of them.

1) Rapid traverse by G00

2) Rapid traverse during a canned cycle

3) Rapid traverse in G27, G28, G29, G30, G53

4) Manual rapid traverse

5) Rapid traverse of manual reference position

Rapid

traverse rate

10m/min

Override 50%

5m/min

100

LOW

Rapid traverse override
