4.INTERPOLATION FUNCTIONS PROGRAMMING B-63784EN/01

- 60 -

WARNING

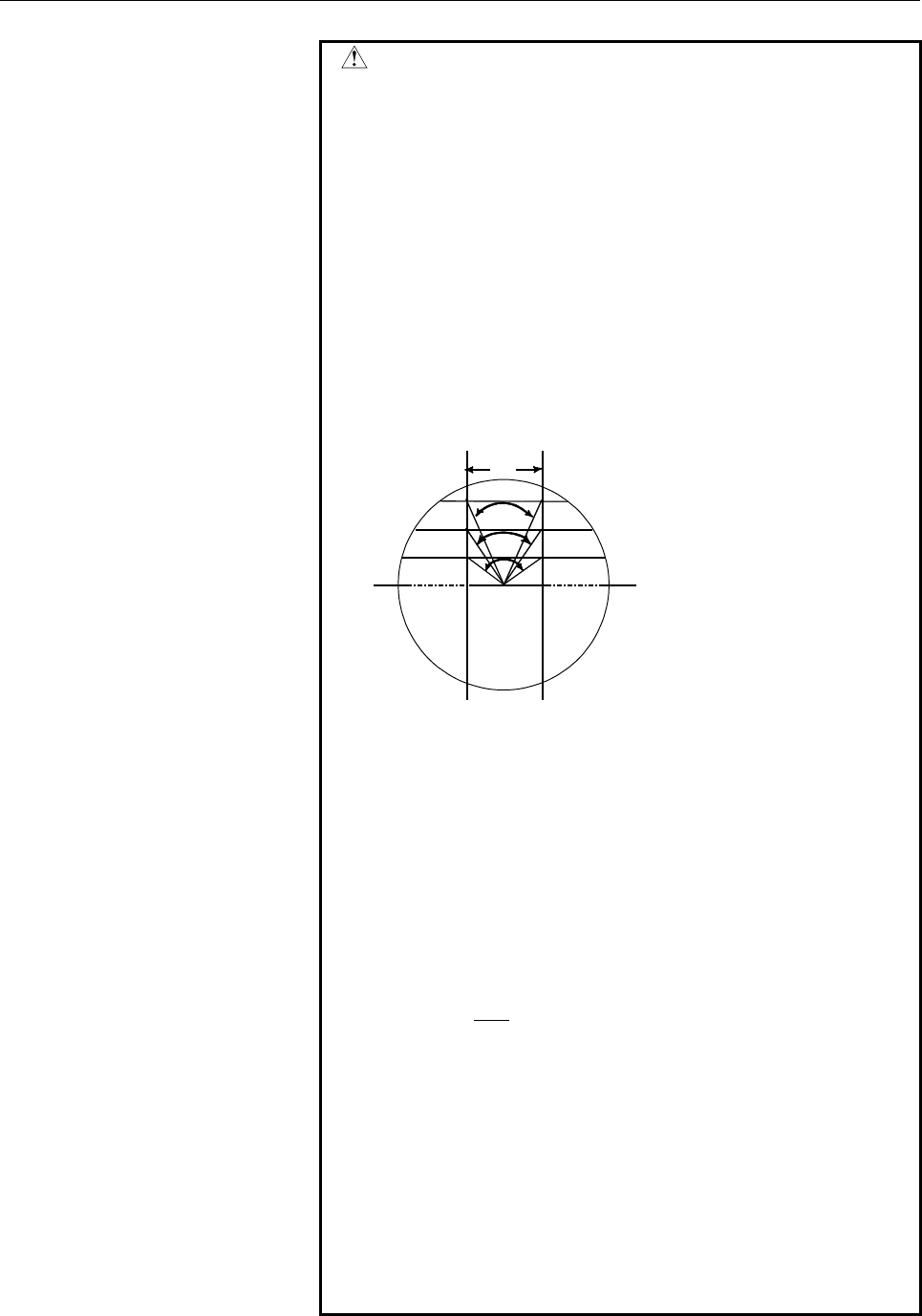

1 Consider lines L1, L2, and L3. ∆X is the distance the

tool moves per time unit at the feedrate specified

with address F in the Cartesian coordinate system.

As the tool moves from L1 to L2 to L3, the angle at

which the tool moves per time unit corresponding to

∆X in the Cartesian coordinate system increases

from θ1 to θ2 to θ3.

In other words, the C-axis component of the feedrate

becomes larger as the tool moves closer to the

center of the workpiece. The C component of the

feedrate may exceed the maximum cutting feedrate

for the C-axis because the tool movement in the

Cartesian coordinate system has been converted to

the tool movement for the C-axis and the X-axis.

θ3

θ2

θ1

∆X

L : Distance (in mm) between the tool center and

workpiece center when the tool center is the

nearest to the workpiece center

R : Maximum cutting feedrate (deg/min) of the C axis

Then, a speed specifiable with address F in polar

coordinate interpolation can be given by the

formula below.

Specify a speed allowed by the formula. The

formula provides a theoretical value; in practice, a

value slightly smaller than a theoretical value may

need to be used due to a calculation error.

F<L×R×

180

(mm/min)

The speed can be controlled so as to prevent the

issue of alarm OT512 (excessive speed). See II-

5.5.2 for details.

2 The following functions cannot be used for the

rotation axis for polar coordinate interpolation.

Using any of these functions results in abnormal

operation.

- Roll-over function

- Multiple-rotary axis control

- Index table indexing function
