14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 408 -

- Start of cutter compensation (start-up)

If a block satisfying all the conditions listed below is executed in cancel

mode, the machine is placed in cutter compensation mode. This

operation is referred to as start-up.

(1) G41 or G42 is specified. Alternatively, G41 or G42 has already

been specified, and G41 or G42 mode has already been set.

(2) 0 < cutter compensation number maximum compensation

number

(3) Positioning (G00) or linear interpolation (G01) mode is set.

(4) A command specifying a non-zero amount of travel is specified

for an axis on the compensation plane. (This applies to types

other than start-up type C.)

If start-up is specified in a mode such as the circular interpolation (G02

or G03) mode, an alarm (PS0270) is issued.

As indicated below, three types of start-up operations are supported:

type A, type B, and type C. The user can choose from these three types

by setting bit 0 (CSU) of parameter No. 6001 and bit 7 (CSC) of

parameter No. 6003. However, these three types produce no difference

when the tool moves around an inner corner.

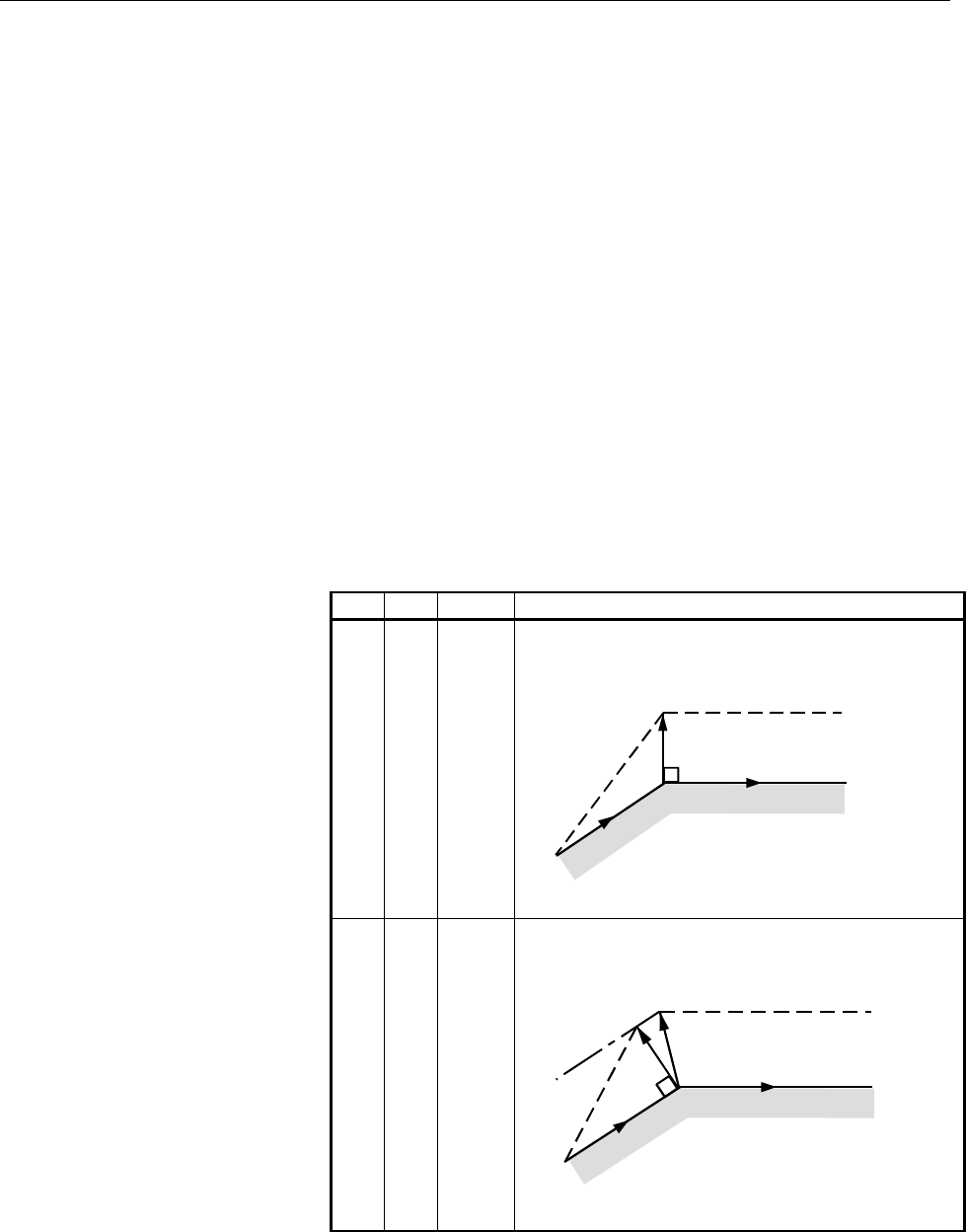

Fig.14.4.1 (a) Start-up/Cancel Operation

CSC CSU Type Operation

0 0 Type A

A compensation vector perpendicular to the block after start-

up or perpendicular to the block before cancellation is output.

0 1 Type B

A compensation vector perpendicular to the start-up block or

cancellation block, and an intersection vector are output.

Tool center

path

Programmed

path

G41

Tool center

path

Programmed

path

Intersection
