B-63784EN/01 PROGRAMMING 14.COMPENSATION FUNCTION

- 537 -

Explanation

- Operation at compensation start-up and cancellation

Unlike tool side compensation the operation performed at leading edge

compensation start-up and cancellation does not vary. When G41.3 is

specified, the tool is moved by the amount of compensation (V

) in the

plane formed by the movement vector (V

) of the block after a G41.3

block and the tool vector (V

) obtained at the time of G41.3

specification. The tool movement is perpendicular to the tool vector.

When G40 is specified, the tool is moved to cancel VC. The following

illustrates how the compensation is performed.

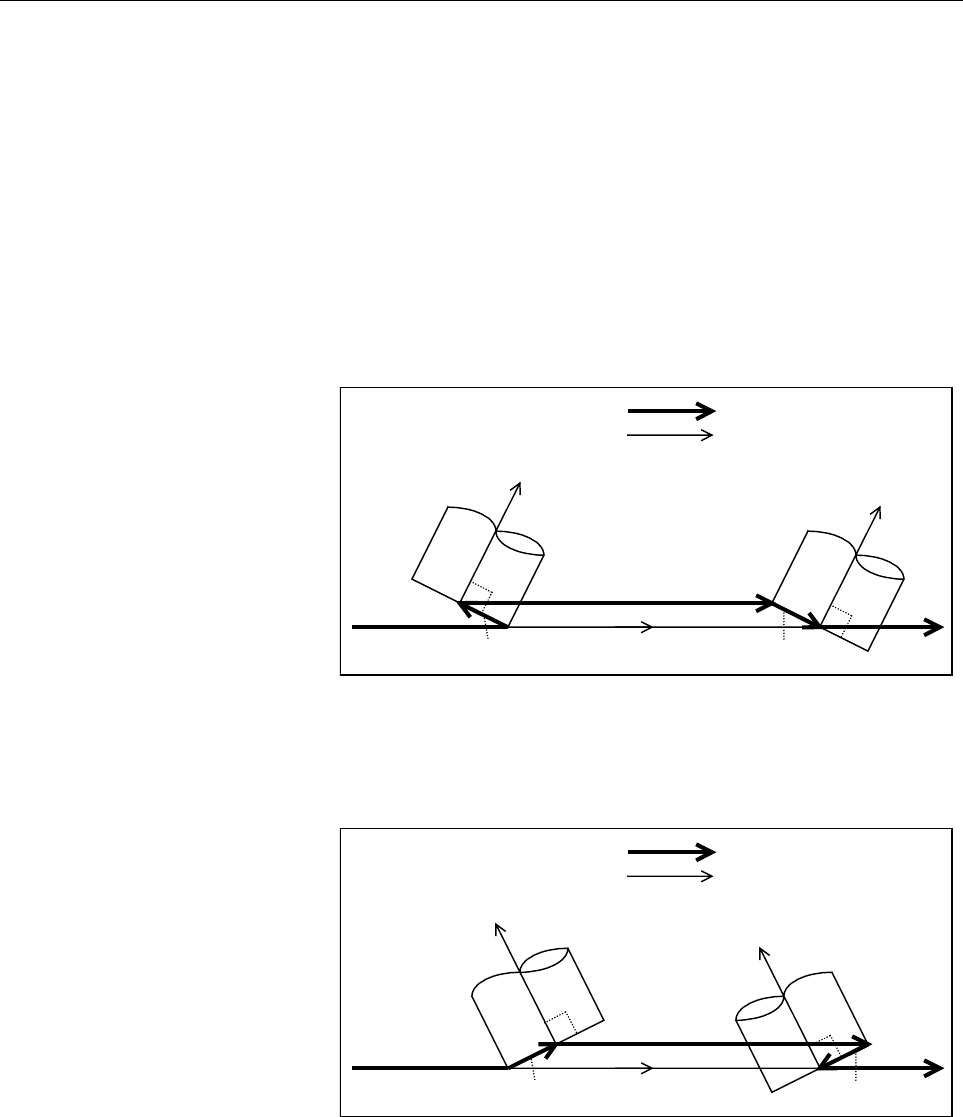

(1) When the tool vector is inclined in the direction the tool moves

Tool

Tool vector(V

)

G41.3(V

)

G40

: Tool center path

: Programmed tool path

Fig.14.14.2 (b) When the tool vector is inclined in the direction the tool

moves

(2) When the tool vector is inclined in the direction opposite to the

direction the tool moves

: Tool center path

: Programmed tool path

Tool

Tool vector (V

)

G41.3(V

)

G40

Fig.14.14.2 (c) When the tool vector is inclined in the direction opposite

to the direction the tool moves
