- Chopping delay compensation function

When high-speed chopping is performed with the grinding axis, a servo

delay and acceleration/deceleration delay occur. These delays prevent

the tool from actually reaching the specified position.

The CNC measures the difference between the specified position and

the actual tool position, and performs chopping delay compensation to

compensate for the difference.

To compensate for this displacement, an amount of travel equal to the

distance between the upper and lower dead points, plus an appropriate

compensation amount, is specified. When a chopping command is

specified, the feedrate is determined so that the chopping count per unit

time equals the specified count. When the difference between the

displacement of the tool from the upper dead point and the

displacement of the tool from the lower dead point becomes smaller

than the setting of parameter No. 1881, after the start of chopping, the

control unit performs compensation.

When compensation is applied, the chopping axis moves beyond the

specified upper dead point and lower dead point, and the chopping

feedrate increases gradually.

When the difference between the actual machine position and the

specified position becomes smaller than the effective area setting

(parameter No. 1827), the control unit no longer applies compensation,

allowing the tool to continue moving at its current feedrate.

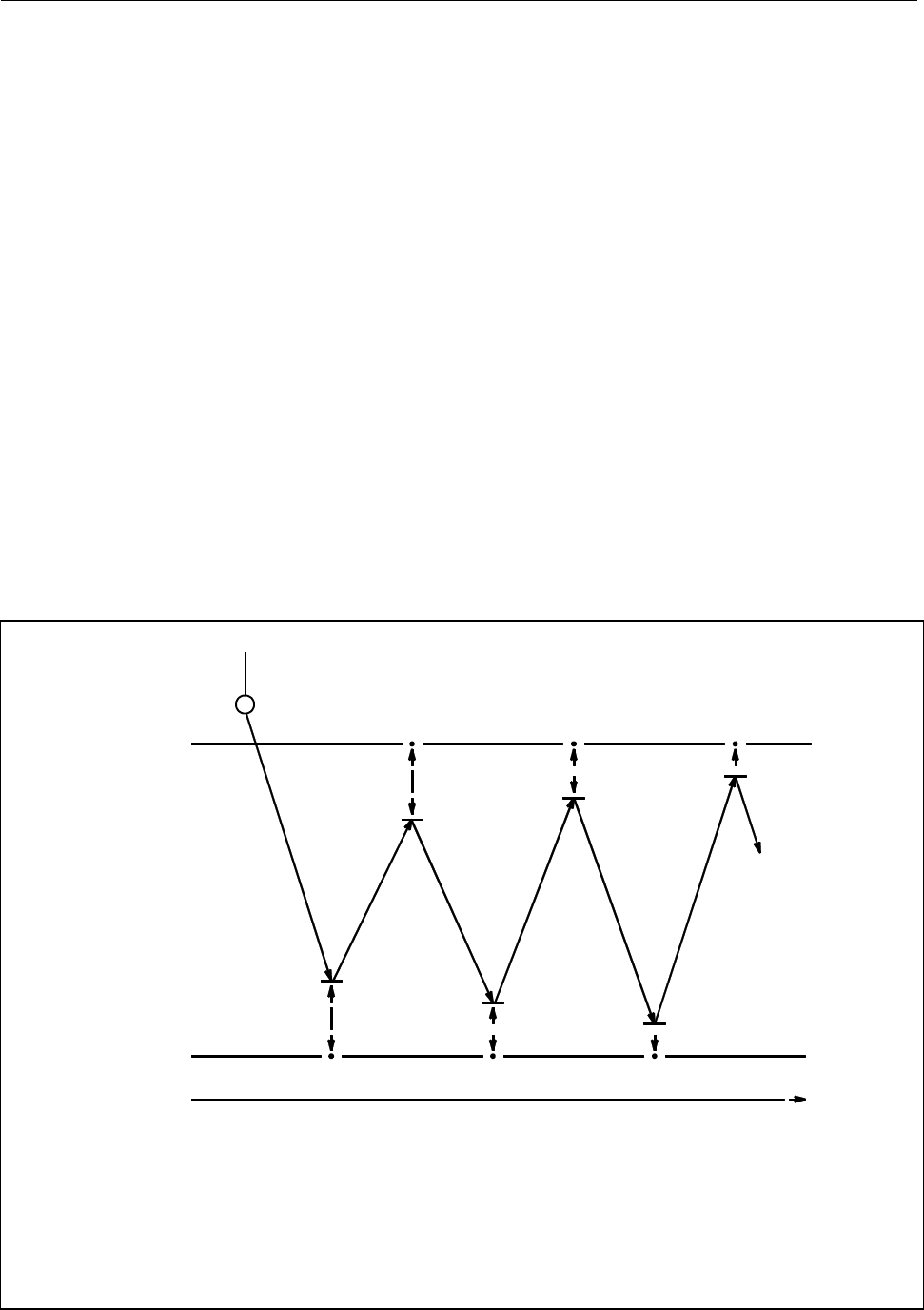

Point R

Upper dead point

L2 L4 L6

L3 L5

Lower dead point

Time

Displacement between the tool and the upper dead point: L2, L4, L6

Displacement between the tool and the lower dead point: L1, L3, L5

Compensation starts when:

|L3 - L2| < (parameter No.1881)

When the following condition is satisfied, compensation is no longer applied,

and the tool continues to move at its current feedrate:

|L6| < effective area setting (parameter No.1827)
