D.4 RADIUS DIRECTION ERROR AT CIRCLE CUTTING

When a servo motor is used, the positioning system causes an error

between input commands and output results. Since the tool advances

along the specified segment, an error is not produced in linear

interpolation. In circular interpolation, however, radial errors may be

produced, sepecially for circular cutting at high speeds.

This error can be obtained as follows:

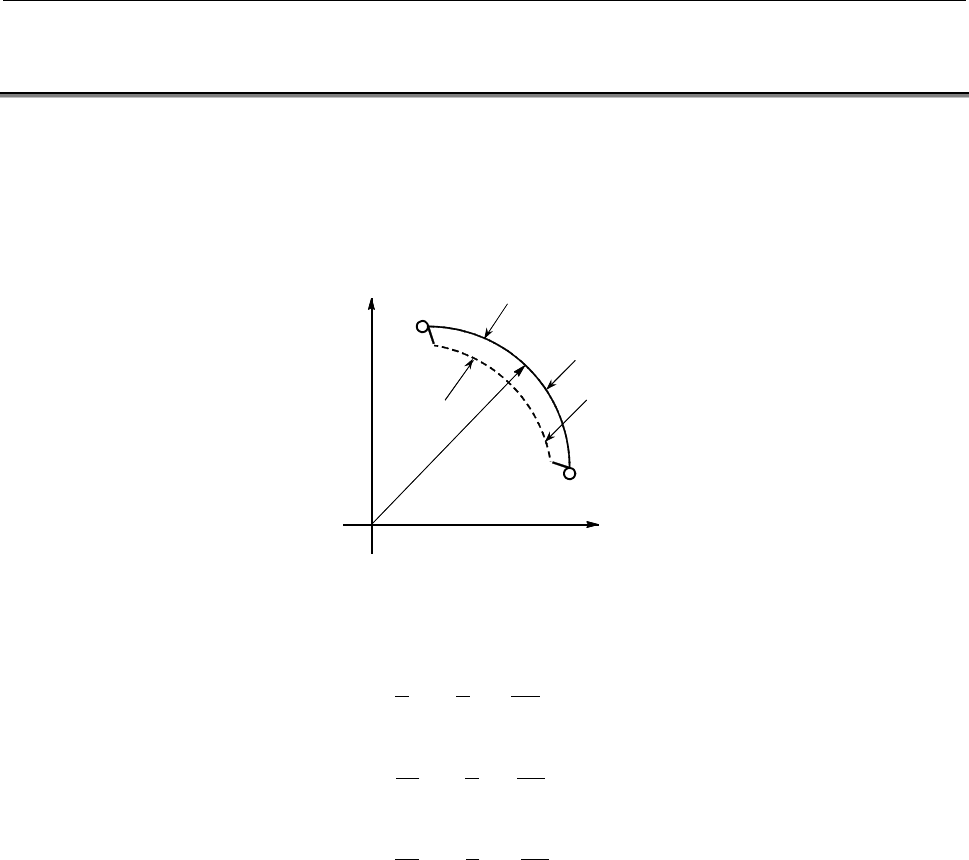

Command path

ctual path

∆r

∆r : Maximum radius error (mm)

V : Feedrate (mm/s)

R : Circle radius (mm)

: Exponential

acceleration/deceleration time

constant (sec) at cutting

(T=0)

: Time constant of positoning

system (sec).

(Inverse of positon loop gain)

An approximation of this radius error can be obtained with the

following expression:

In the case of exponential acceleration/deceleration

TTr

)

( +=∆

In the case of leanear acceleration/deceleration after interpolation

TTr

)

( +=∆

In the case of bell-shaped acceleration/deceleration

TTr

)

( +=∆

Thus, the radius error in the case of bell-shaped acceleration/

deceleration and linear acceleration/deceleration after interpolation is

smaller than in case of exponential acceleration/deceleration by a

factor of 12 or 24, excluding any error caused by a servo loop time

constant.

Since the machining radius r (mm) and allowable error ∆r (mm) of the

workpiece is given in actual machining, the allowable limit feedrate v

(mm /sec) is determined by equation (1).

Since the acceleration/deceleration time constant at cutting which is set

by this equipment varies with the machine tool, refer to the manual

issued by the machine tool builder.
