B-63784EN/01 PROGRAMMING 5.FEED FUNCTIONS

- 165 -

- Override range

When a corner is determined to be an inner corner, the feedrate is

overridden before and after the inner corner. The distances Ls and Le,

where the feedrate is overridden, are distances from points on the cutter

center path to the corner (Fig.5.5.2 (b), Fig.5.5.2 (c)). Ls and Le are set

with parameter Nos. 6613 and 6614.

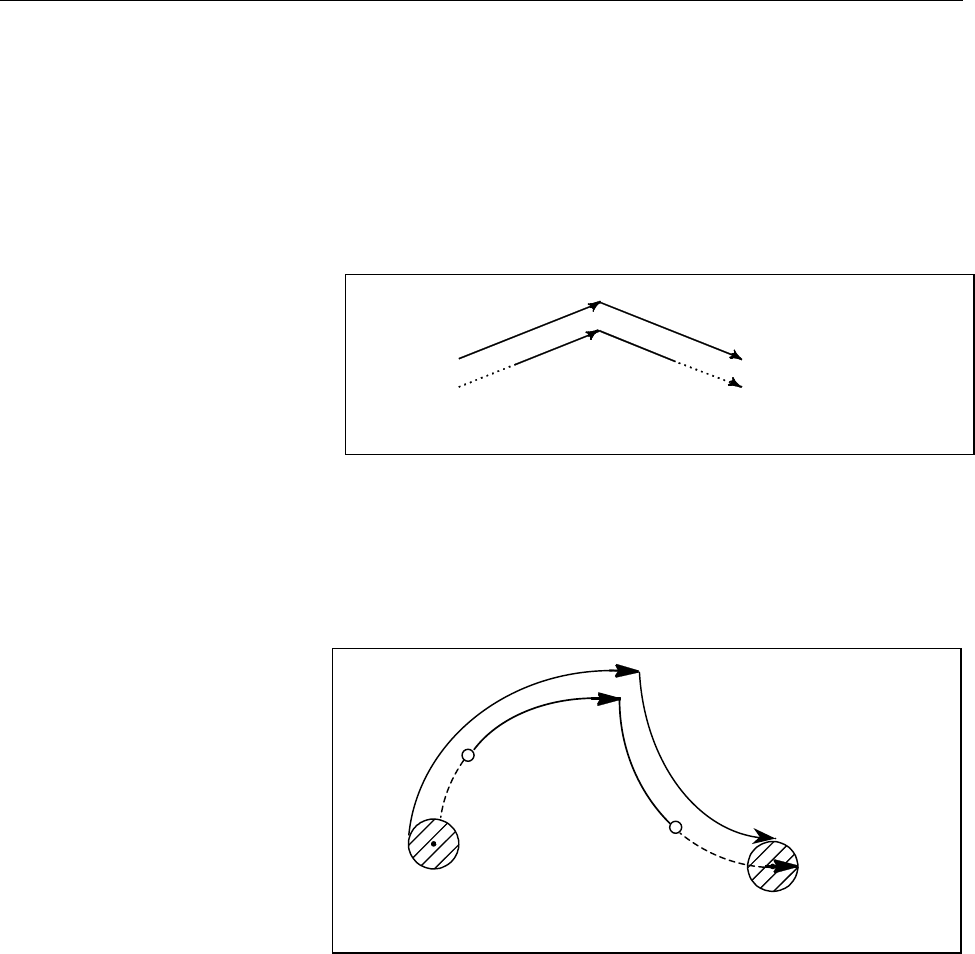

Fig.5.5.2 (b) Override Range (Straight Line to Straight Line)

When a programmed path consists of arcs, override is enabled for the

end point of a block if the distance is within Le. Similarly, override is

enable for the start point of a block if the distance is within Ls.

(Fig.5.5.2 (c)).

Fig.5.5.2 (c) Override Range (Arc to Arc)

Regarding program (2) of an arc, the feedrate is overridden from point a

to point b and from point c to point d (Fig.5.5.2 (d)).

Programmed path

Cutter center path

The feedrate is overridden from point a to point b.

Programmed path

The feedrate is overridden from point a to b.

Cutter center path
