14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 584 -

14.17 CONTROL POINT COMPENSATION OF TOOL LENGTH

COMPENSATION ALONG TOOL AXIS AND TOOL CENTER

POINT CONTROL

Normally, the control point of tool length compensation along the tool

axis and tool center point control is the point of intersection of the

centers of two rotation axes. The machine coordinates also indicate

this control point.

This section explains the compensation that is performed when the

centers of the two rotation axes do not intersect and also explains how

to place the control point at a convenient position on the machine.

Description

- Compensation of the rotation centers of two rotation axes

Compensation is performed when the rotation centers of two rotation

axes do not match.

The length from the tool mounting position to the first rotation axis

center is set as the tool holder offset value in parameter No. 7548.

The vector from the first rotation axis center to the second rotation axis

center is set as the rotation center compensation vector in parameter No.

7519. Since parameter No. 7519 is an axis type parameter, the

compensation amount for three axes (X, Y, and Z) can be set in this

parameter.

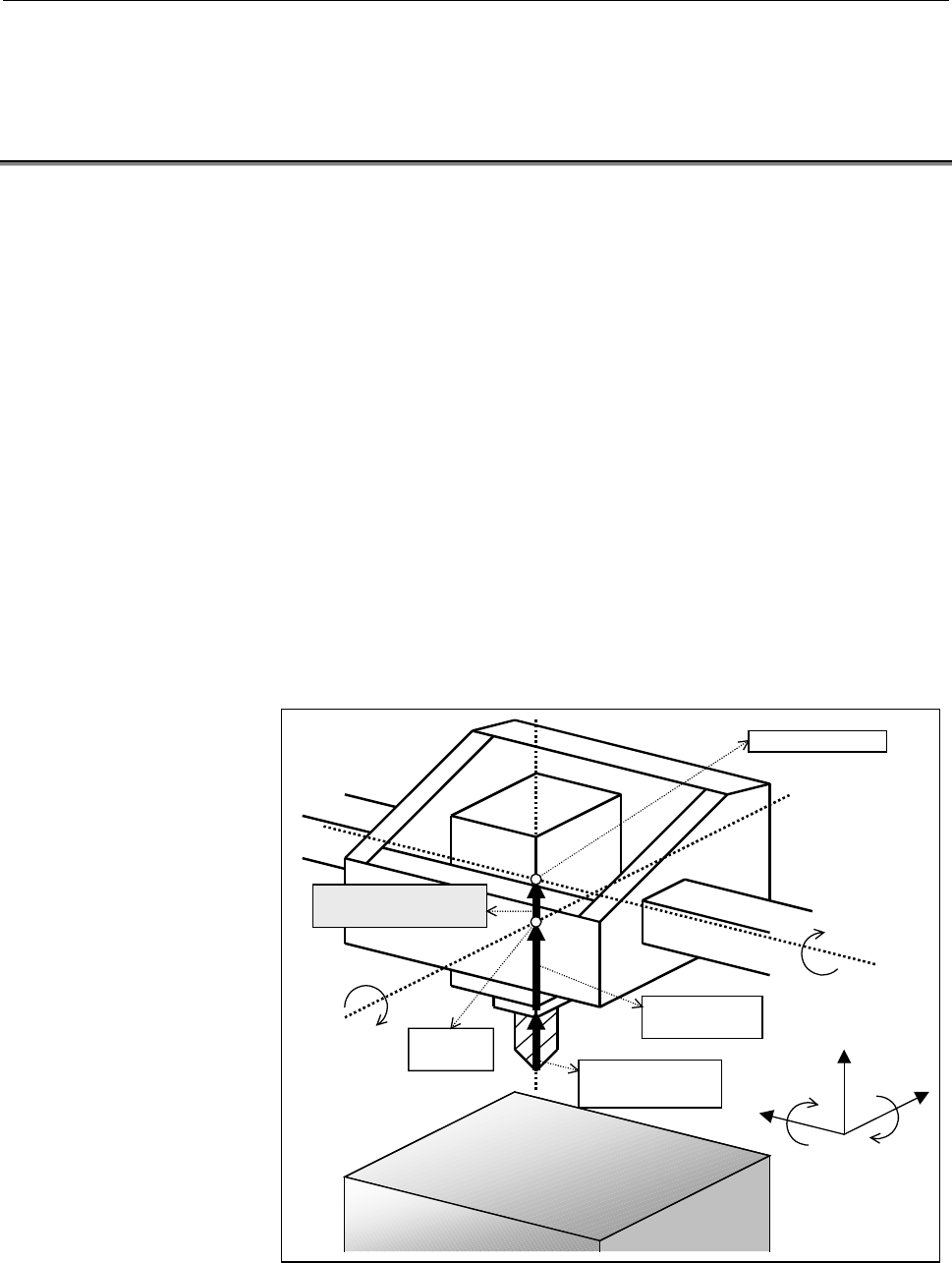

Workpiece

Tool length

compensation

Tool holder

offset

Rotation center

com

ensation vector

A-axis

center

B-axis center

Fig. 14.17 (a) Compensation of Rotation Centers of Two Rotation Axes
