B-63784EN/01 PROGRAMMING 18.HIGH-SPEED CUTTING FUNCTICNS

- 737 -

If linear acceleration/deceleration not reaching the specified

acceleration occurs as shown above, this function shortens the

acceleration/deceleration time by changing the internal acceleration for

acceleration/deceleration before interpolation and the bell-shaped time

constant in order to generate an acceleration/deceleration pattern as

close as possible to that that permits optimum bell-shaped acceleration/

deceleration before interpolation for the specified speed.

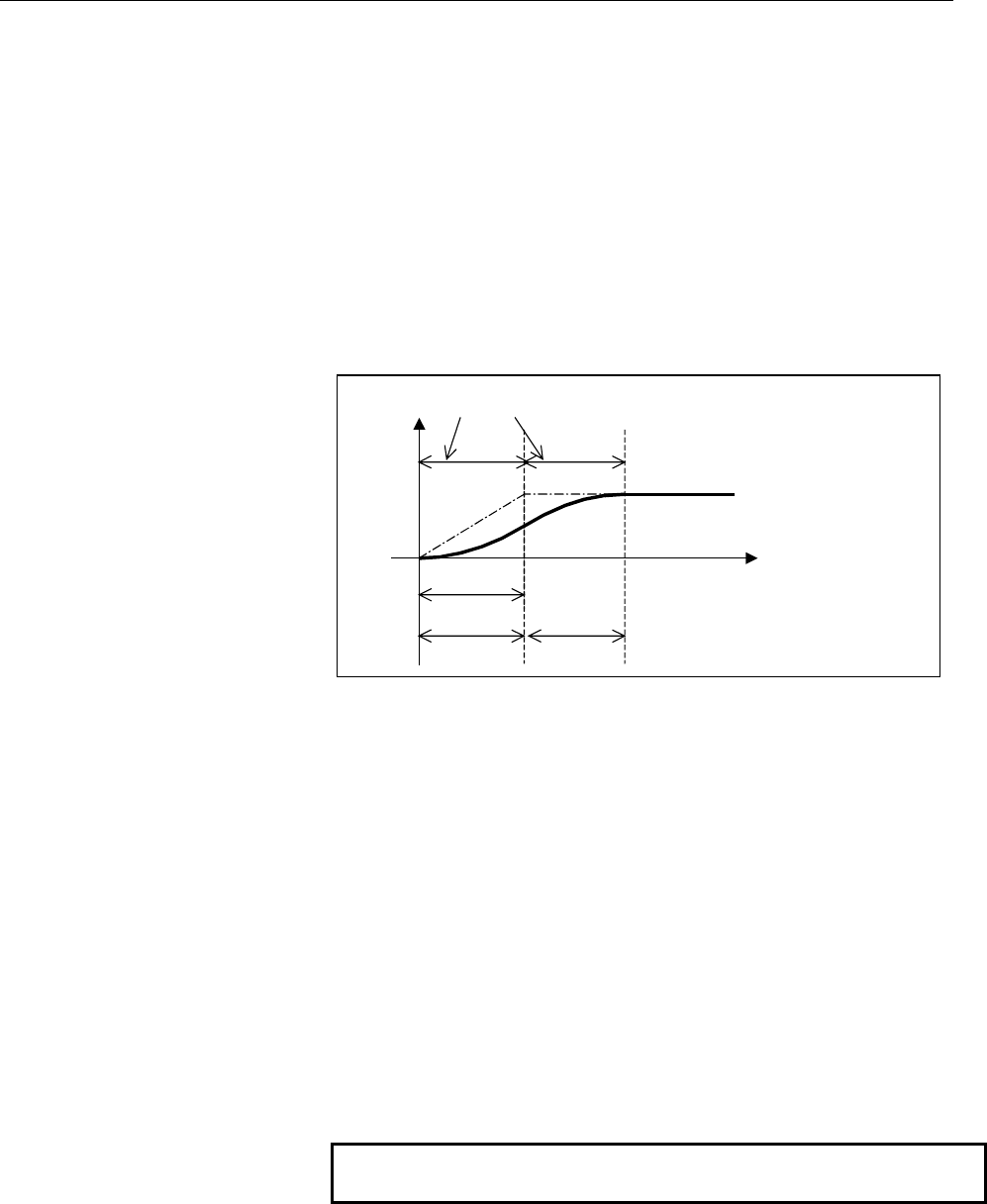

Optimum bell-shaped acceleration/deceleration before interpolation, as

mentioned here, refers to bell-shaped acceleration/deceleration before

interpolation in which if T

> T

, T

and T

are changed to T

' and T

' as

shown in the figure below so that linear acceleration/ deceleration not

reaching the specified acceleration/deceleration does not occur.

Non-linear acceleration/deceleration

Specified speed

Speed

T1'

T2' T2'

Fig.18.4.1(c)

Methods of specifying the acceleration/deceleration reference speed

The acceleration/deceleration reference speed refers to the feedrate

used as the reference for calculating optimum acceleration. In

Fig.18.4.1(c), it is equivalent to the specified speed used to determine

' and T

There are three methods for specifying the acceleration/deceleration

reference speed.

Specifying a value close to the actually specified speed as the

acceleration/deceleration reference speed will be effective.

(1) Specifying the speed using an F in a G05.1 Q1 block

(2) Setting the speed on the high-speed high-precision machining

setting screen

(3) Setting the speed specified with the F command issued at the start

of cutting as the reference speed

NOTE

This function is effective if BCG (No. 1603 bit 6) is 1.
