6.REFERENCE POSITION PROGRAMMING B-63784EN/01

- 182 -

6.1 REFERENCE POSITION RETURN

The reference position is a fixed position on a machine tool to which

the tool can easily be moved by the reference position return function.

For example, the reference position is used as a position at which tools

are automatically changed. Up to four reference positions can be

specified by setting coordinates in the machine coordinate system in

parameters (No. 1240 to 1243).

Reference position

Machine zero point

3rd reference position

2nd reference position

4th reference

osition

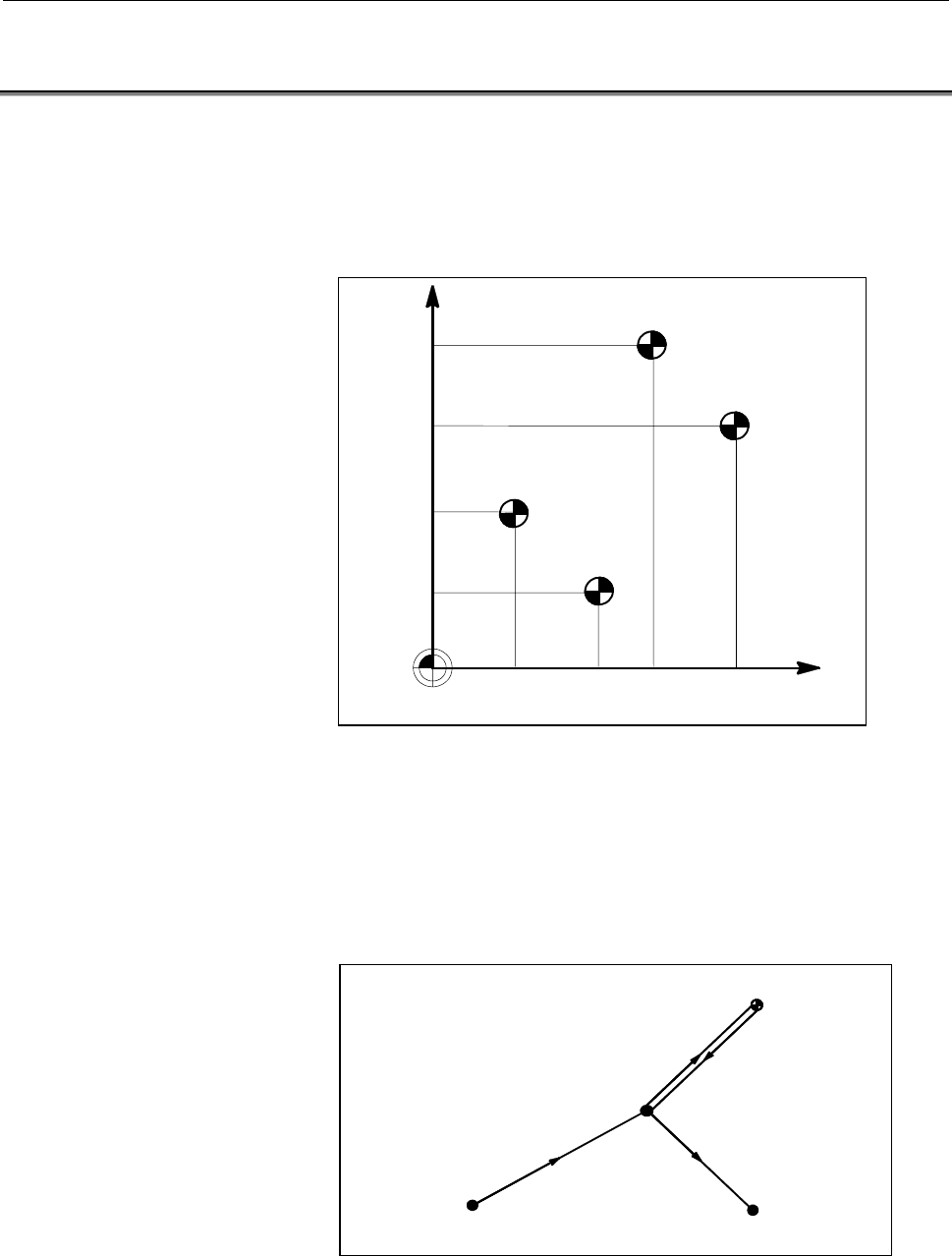

Fig.6.1 (a) Machine coordinate system and reference positions

- Reference position return and movement from the reference position

Tools are automatically moved to the reference position via an

intermediate position along a specified axis. Or, tools are automatically

moved from the reference position to a specified position via an

intermediate position along a specified axis.

When reference position return is completed, the lamp for indicating

the completion of return goes on.

(Start position for reference

position return)

B (Intermediate position)

C (Destination of return from the

reference position

)

R (Reference position)

Reference position return A

→

Return from the reference position R→B→C

Fig.6.1 (b) Reference position return and return form the reference

position
