14.COMPENSATION FUNCTION PROGRAMMING B-63784EN/01

- 592 -

- Compensation plane and plane selection by G17/G18/G19

The creation of a compensation vector is not related to plane selection

by G17/G18/G19.

For example, while circular interpolation is being performed on the XY

(G17) plane, compensation can be applied to a compensation plane

(such as the YZ plane). In grinding wheel wear compensation mode, if

the creation of a compensation vector results in a change in the vector

component, movement along a compensation axis is performed even

when no move command is specified for that axis.

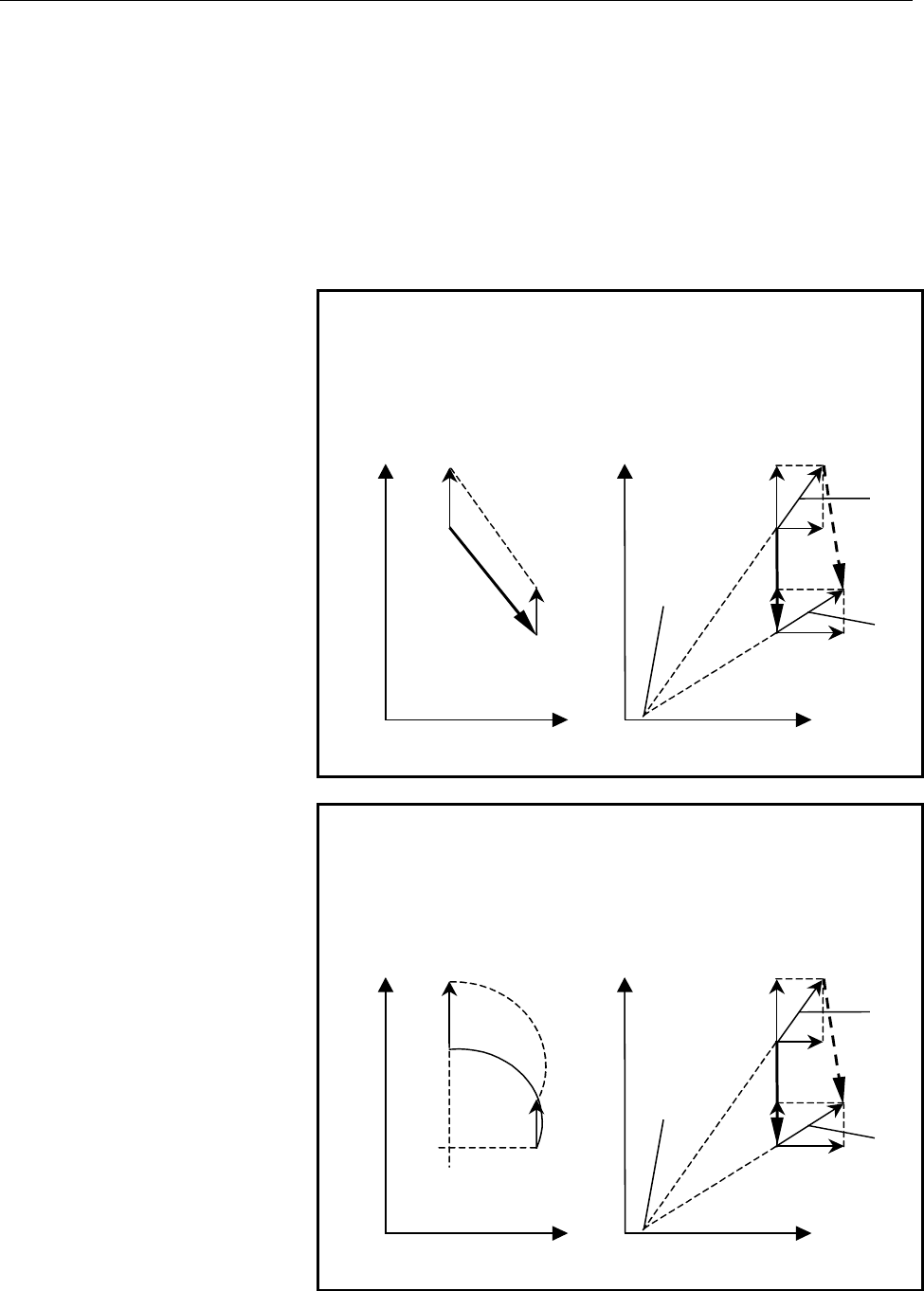

Example 1

With the Y- and Z-axes set as the compensation

axes, a linear interpolation command is executed for

the X- and Y-axes.

Compensation

center

a’

b’

Vay

a’

Vby

b’

Vay

Vby

Vaz

Vbz

Programmed path a->b Path after compensation a’->b’

Example 2

With the Y- and Z- axes set as the compensation

axes, an arc command is executed for the X- and Y-

axes.

Compensation

center

a’

b’

Vay

a’

Vby

b’

Vay

Vby

Vaz

Vbz

Programmed path a->b Path after compensation a’->b’
