CNC Setting Tool Operators manual Page 116

Operators manual
4.FILE MANAGEMENT FUNCTION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 106 -
2 Next, set information about a data file to be created with the
configuration tool.

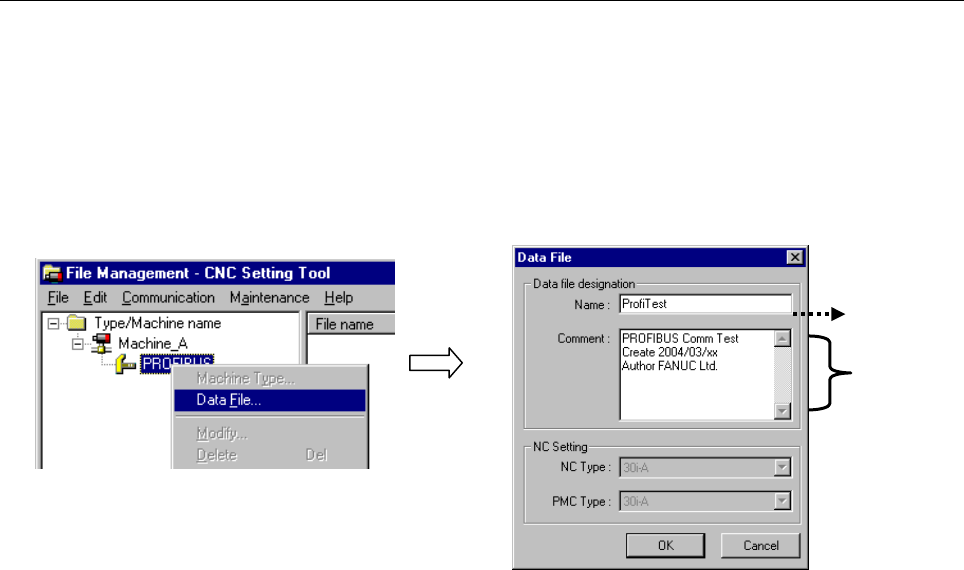

Select and right-click <Machine_A>\<PROFIBUS> then choose
[Data File...]. The Data File screen is displayed.
("Machine_A" is the same name as set in "Machine Type" on the
Machine Property screen.)
Make the following settings:
The setting in "Name" serves as the data file name used at a later
time to store setting data.
In "Comment", enter arbitrary information such as management
information.
3 Click [OK] on the Data File screen. The configuration tool
(namely, the PROFIBUS configuration tool in this case) is
started.
A
rbitrar
y
File name
