2.QUICK START PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 38 -

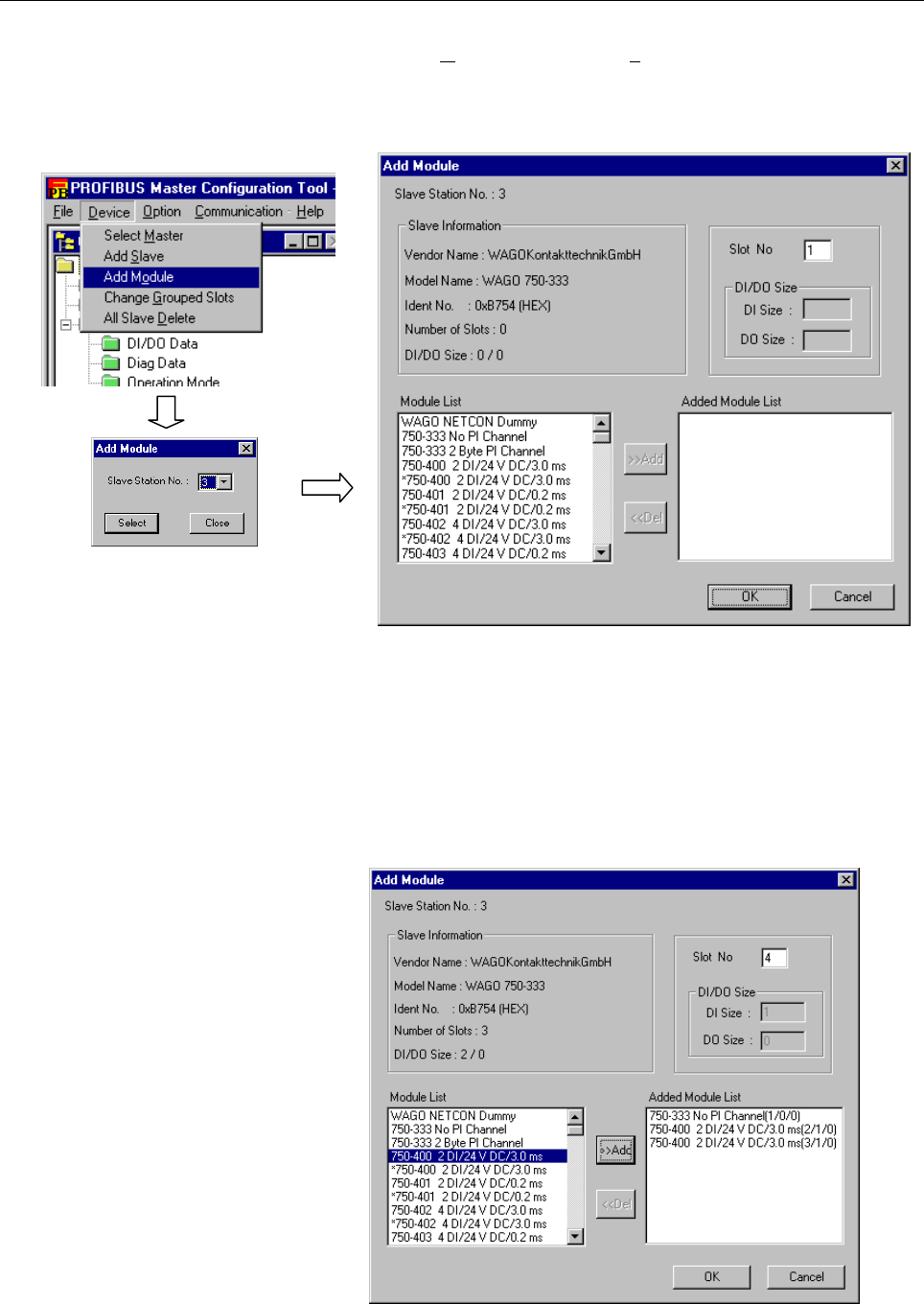

8 Choose [Device] then [Add Module]. The Add Module screen
(slave selection) is displayed.
Before adding a module, select a slave station number on the Add
Module screen (slave selection).
Slave selection Addition
Select a module to be connected from "Module List" then click
[Add]. The module is added to "Added Module List".
"Slot No" indicates the serial number of a module added. Slot
numbers are assigned automatically in ascending order. (The
start number of slot numbers depends on the contents of each
GSD file.)
In the example below, three modules are added under I/O module
"750-333" (slave station number: 3) available from Wago.
