CNC Setting Tool Operators manual Page 77

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 3.OPERATION
- 67 -

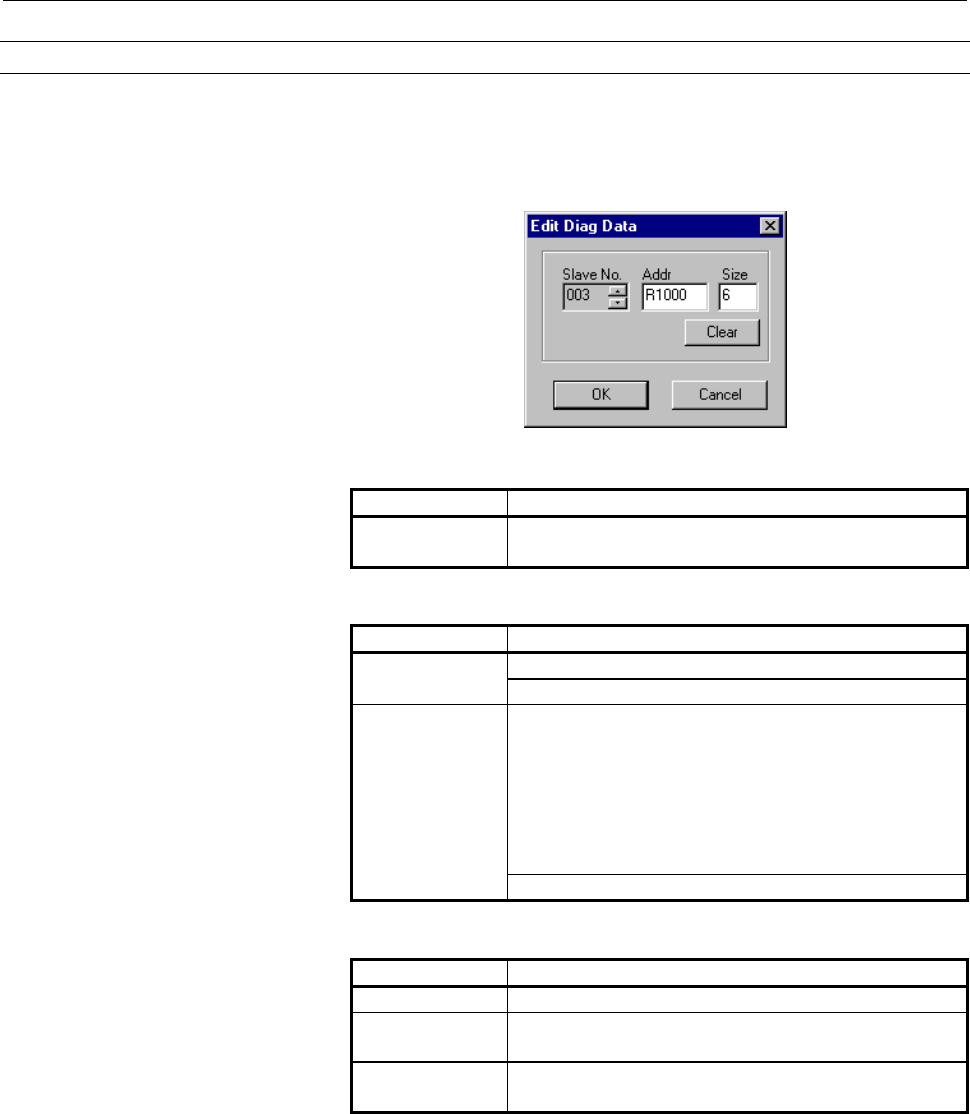

Editing diagnostic data
On the Diag Data screen, click the [Edit] button after selecting a slave
station from "Total Diag Slaves". The Edit Diag Data screen for the
selected slave station is displayed.
Display item
Item Description
Slave No. Displays a slave station number for which editing is
performed.
Setting item
Item Description
Set a diagnostic data address. Addr
Range: See CAUTION.
Set a diagnostic data size.
Set 6 in this parameter to only check if communication
is normal or abnormal. Depending on the slave
station specifications, some devices may have
diagnostic data consisting of 7 bytes or more. In such
a case, enter the value of the parameter
"Max_Diag_Data_Len =" held in the GSD file.
Size
Range: 0 to 244
Button
Item Description
Clear Clears all setting items of this screen.
OK Validates operations on this screen and closes this
screen.
Cancel Cancels operations on this screen and close this
screen.
Previous page
Next page
