FANUC CNC Setting Tool
OPERATOR’S MANUAL

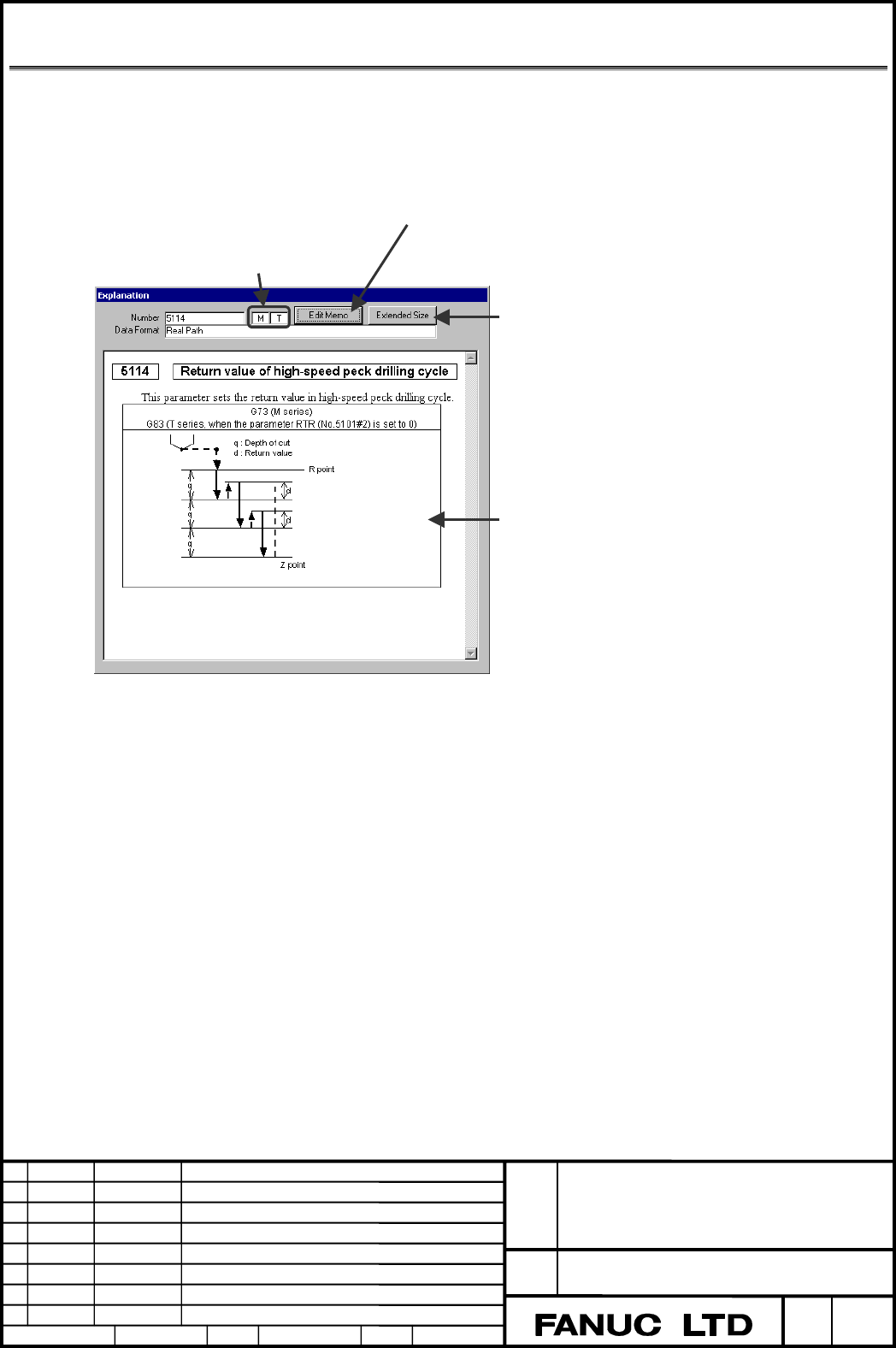

3.9 EXPLANATION SCREEN
When the parameter is selected, the explanation of it is displayed in the
Explanation screen.
Extended Size
If the drawing in the explanation is
larger than the screen, the size of
screen is extended with this button
temporarily. The screen returns to a
original size with Normal Size button.
MT
Indicates whether it is available
for M(machining system) or
T(lathe system).
Edit Memo
You can add a memorandum to the
explanation.
Explanation of Parameter
The explanation of selected parameter
is displayed. The contents of it are the
same as PARAMETER MANUAL.
Previous page
Next page
