CNC Setting Tool Operators manual Page 80

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 70 -
NOTE
When the PROFIBUS software series is 6557/09 or
later or 655G, you cannot set an address for
operation mode notification.

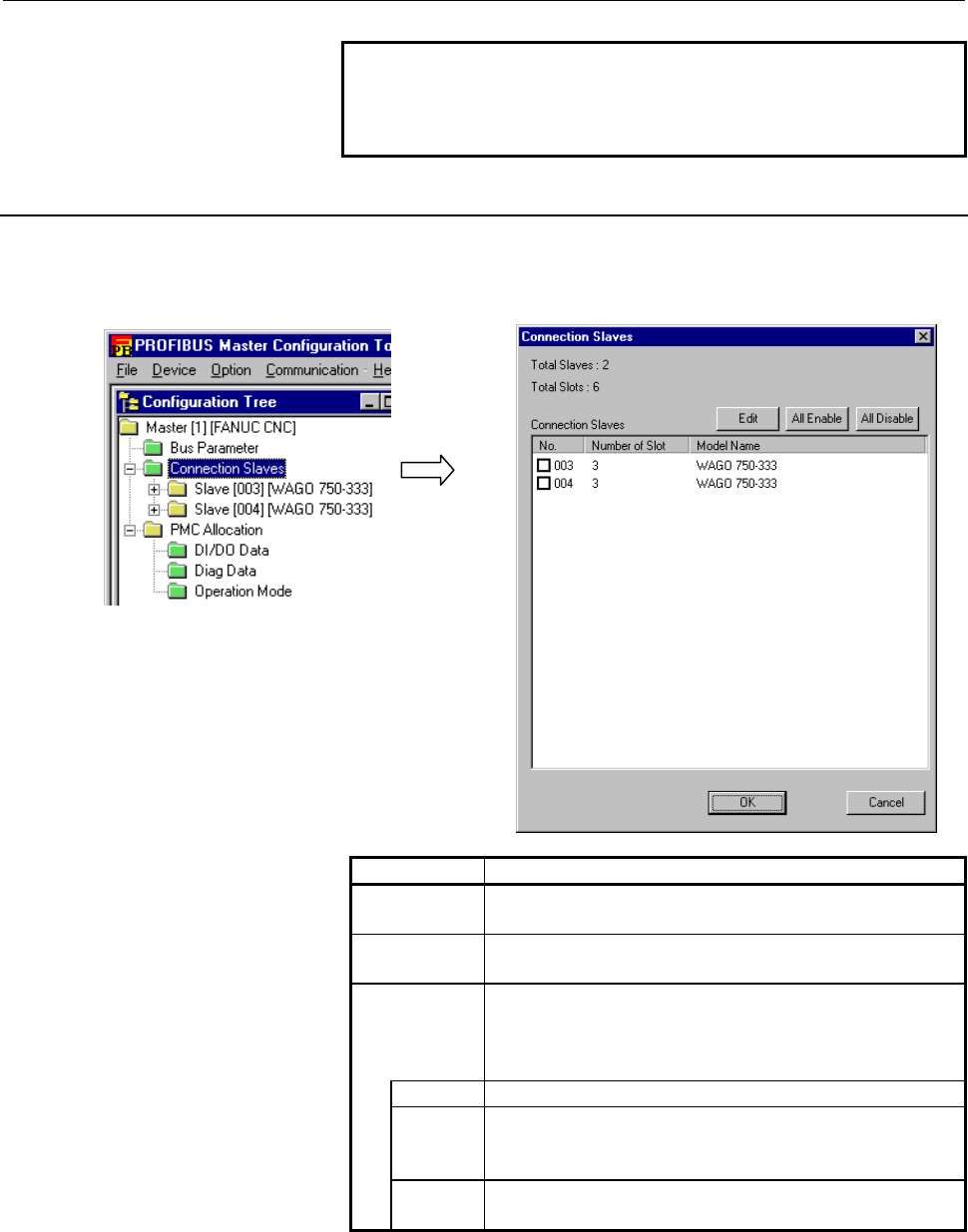

3.2.8 Connection Slaves Screen
This subsection describes the Connection Slaves screen.
Select and double-click <Connection Slaves> in the configuration tree.
The Connection Slaves screen is displayed.
Display item
Item Description
Total Slaves Displays the total number of slave stations set on the Add
Slave screen.
Total Slots Displays the total number of slots of all slave stations set
on the Add Module screen.
Connection
Slaves
Displays a list of slave stations set on the Add Slave
screen.
Communication is enabled for a slave station with its
check box checked.
No. Slave station number
Number
of Slot
Number of connection slots of the slave station
This number matches the number of modules added to
"Added Module List".
Model
Name
Model name of the slave station
Previous page
Next page
