FANUC CNC Setting Tool
OPERATOR’S MANUAL
4.4.5 Set to NC Screen

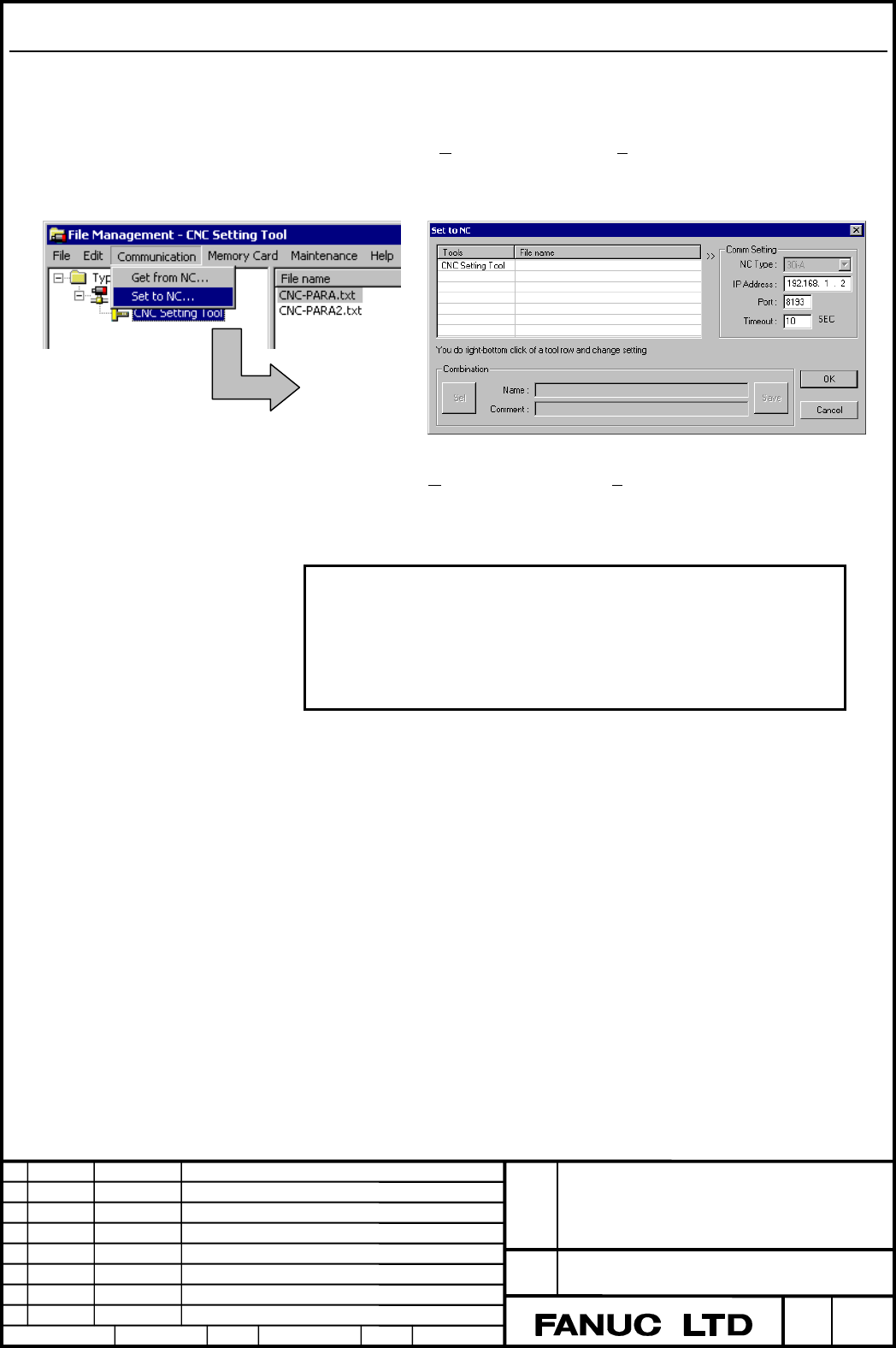

This subsection describes the Set to NC screen.
Select <(configuration-tool)> (on the sample screen,
<Type/Machine name>¥<Machine_A>¥<PROFIBUS>) in the configuration
tree then choose [C
ommunication] then [Set to NC...] from the menu. The
Set to NC screen is displayed.
If you choose [C
ommunication] then [Set to NC...] from the menu after
selecting a data file from the list of files, the data file is added to the list box
on the Set to NC screen.
NOTE
This operation assumes that the Ethernet function
on the personal computer is usable. Check that the
Ethernet function can be used on the personal
computer, and make a setting, if necessary, on the
personal computer.
