FANUC CNC Setting Tool
OPERATOR’S MANUAL

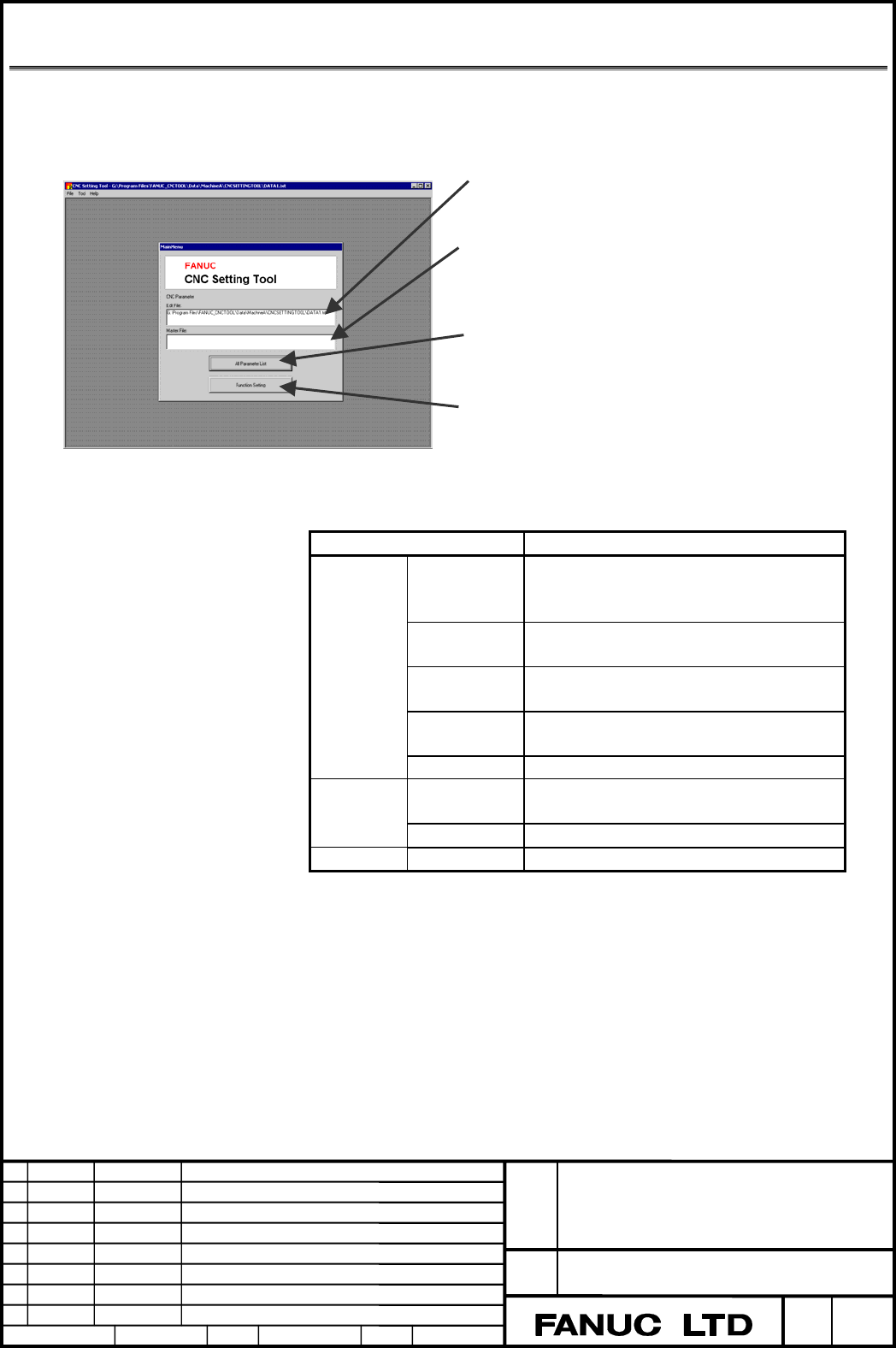

3.2 MAIN MENU
The Main Menu is a starting screen.
The items of the Main Menu are described below.
Menu
Item Description
Open
Master
File...
Opens the master file for
comparison.
Close
Master File
Closes the master file.
Save Overwrites data on the file currently
being set.
Save As... Saves data by changing the name
of the file currently being set.
File
Quit Quits the CNC Setting Tool.
Path to
Show
Selects path to show in multi-path
system.
Tool
Option Changes optional settings.
Help Version... Displays the version information.
Edit File
The full path of the Edit File is displayed.
Master File
If Master File is opened, the full path of it
is displayed.
All Parameter List
All parameters are displayed in order.
Function Setting
Parameters are displayed in the
classification of the CNC functions.
