FANUC CNC Setting Tool
OPERATOR’S MANUAL

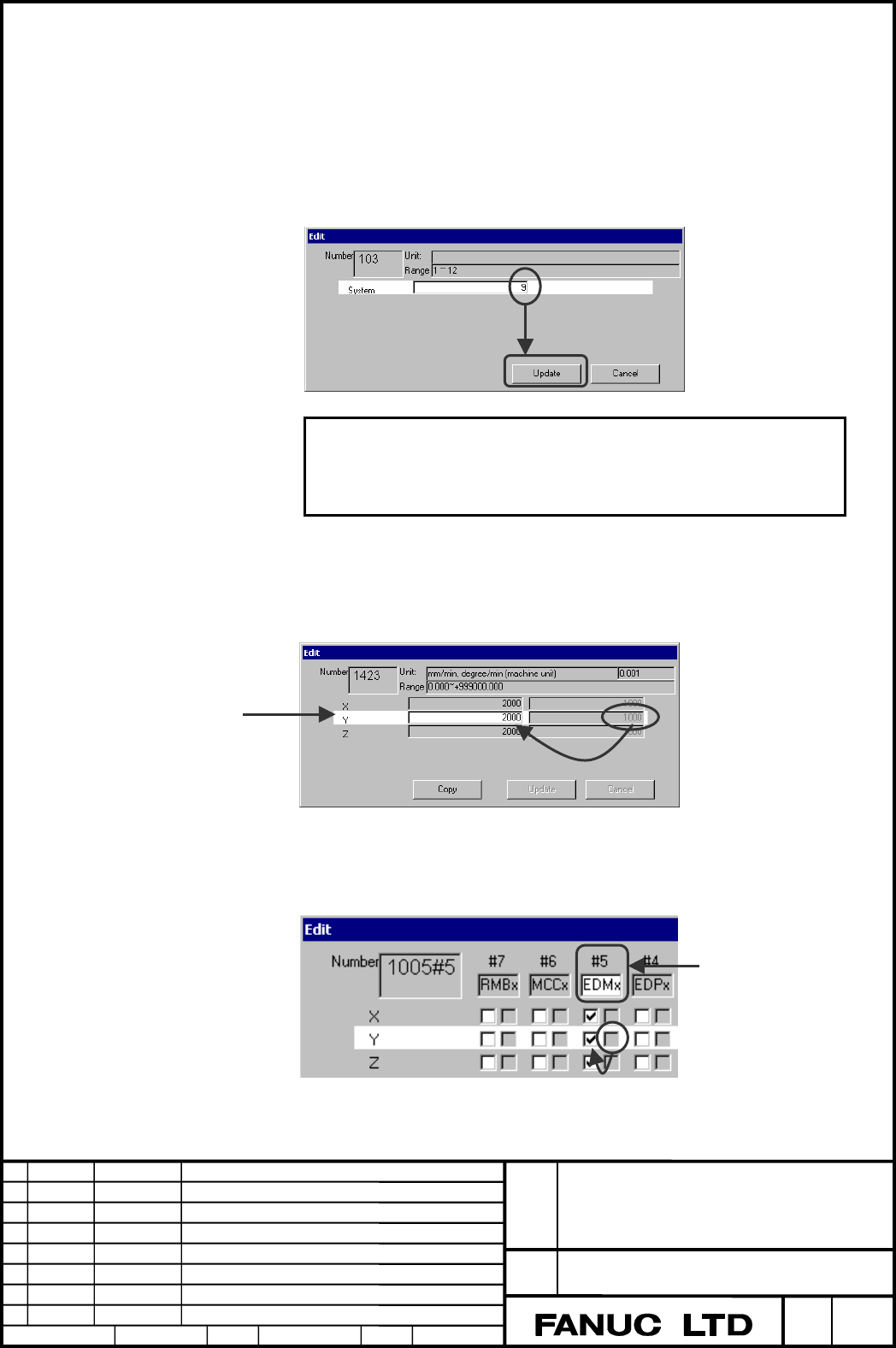

Changing the value
When you change the value, Update and Cancel button becomes available.
- Click Update button to change the value.
- Click Cancel button to disable the change and restore the previous value.
When you click Update button, the range of value is checked. If the value is
out of range, the warning message is displayed. Please change the value
within the range.
NOTE
If you select another parameter without clicking
Update button after you change the value, the
change you made will be lost.
Copy
When a master file is opened, the value of the master file can be copied to
the edit file.
When the value consists of multiple lines, the value specified by the cursor is
copied.
In case of bit parameter, the value of selected bit parameter is copied.
Cursor Line
Selected
Paramete
