B-64174EN/01 PROFIBUS CONFIGURATION TOOL 3.OPERATION
- 69 -
3.2.7 Operation Module Screen
This subsection describes the Operation Mode screen.

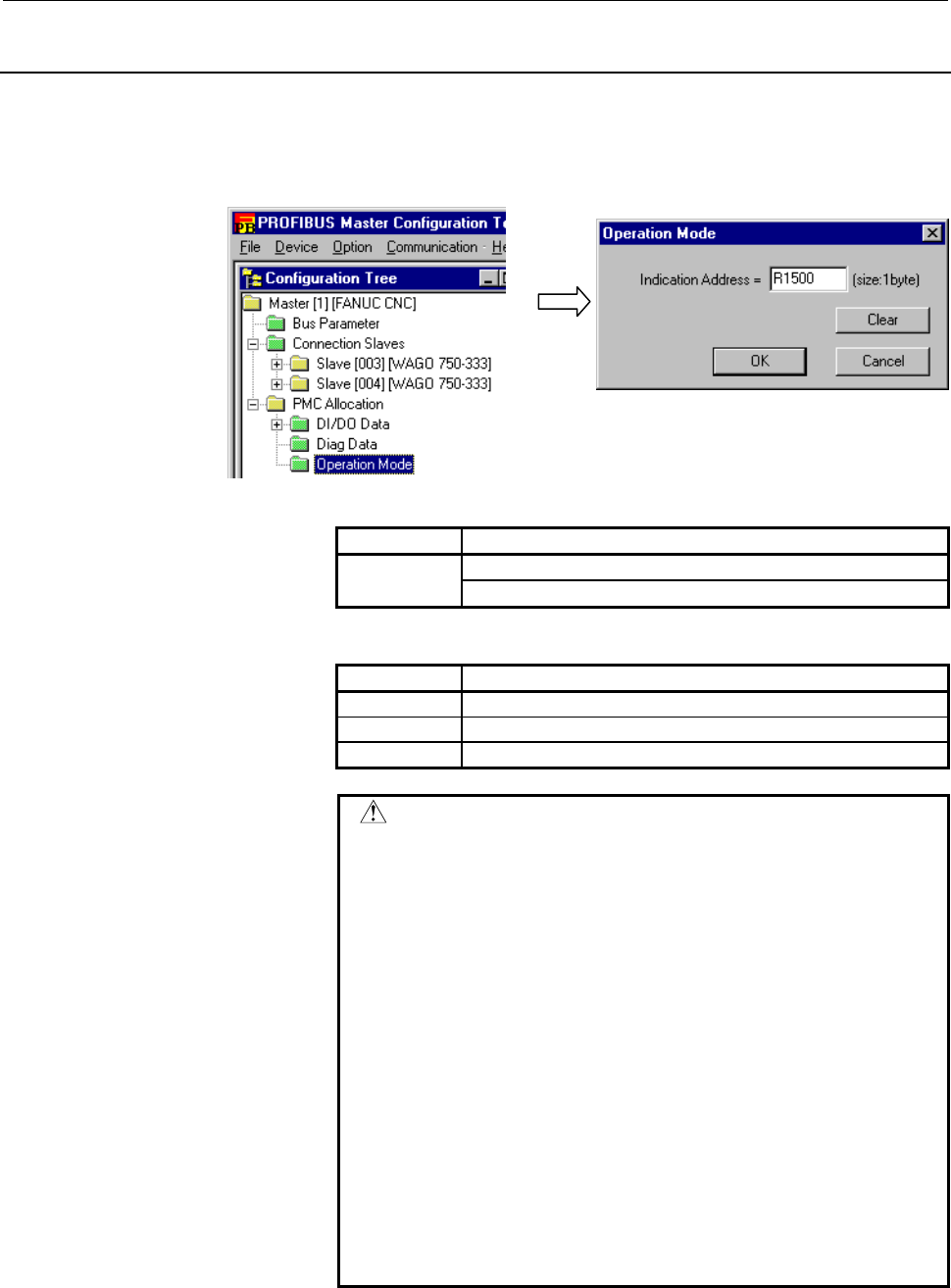

Select and double-click <PMC Allocation>\<Operation Mode> in the
configuration tree. The Operation Mode screen is displayed.
PMC address allocation to the operation mode is not mandatory.
Setting item
Item Description
Set an address for operation mode notification. Indication
Address
Range: See CAUTION.
Button
Item Description
Clear Clears all setting items of this screen.
OK Validates operations on this screen and closes this screen.
Cancel Cancels operations on this screen and closes this screen.
CAUTION
In PMC address allocation, observe the following:
(1) When the PROFIBUS software series is 655B,
you can set an R address or E address.
For a multipath PMC, enter a PMC address as:
<path-number>:<PMC-address>
For R0500 on PMC path 2, for example, enter
"2:R500". If the PMC address (R500) only is
entered, the specification of path 1 (1:R0500)
is assumed.
(2) When the PROFIBUS software series is 6558,
6557/09 or later, or 655G, you can only set an
R address, but cannot specify a path number.
(3) Ensure that the DI data area, DO data area,
diagnostic data area, and operation mode
display area do not overlap each other.
(4) Ensure that no allocated areas overlap an area
used for a ladder program on the CNC side.
