CNC Setting Tool Operators manual Page 82

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 72 -

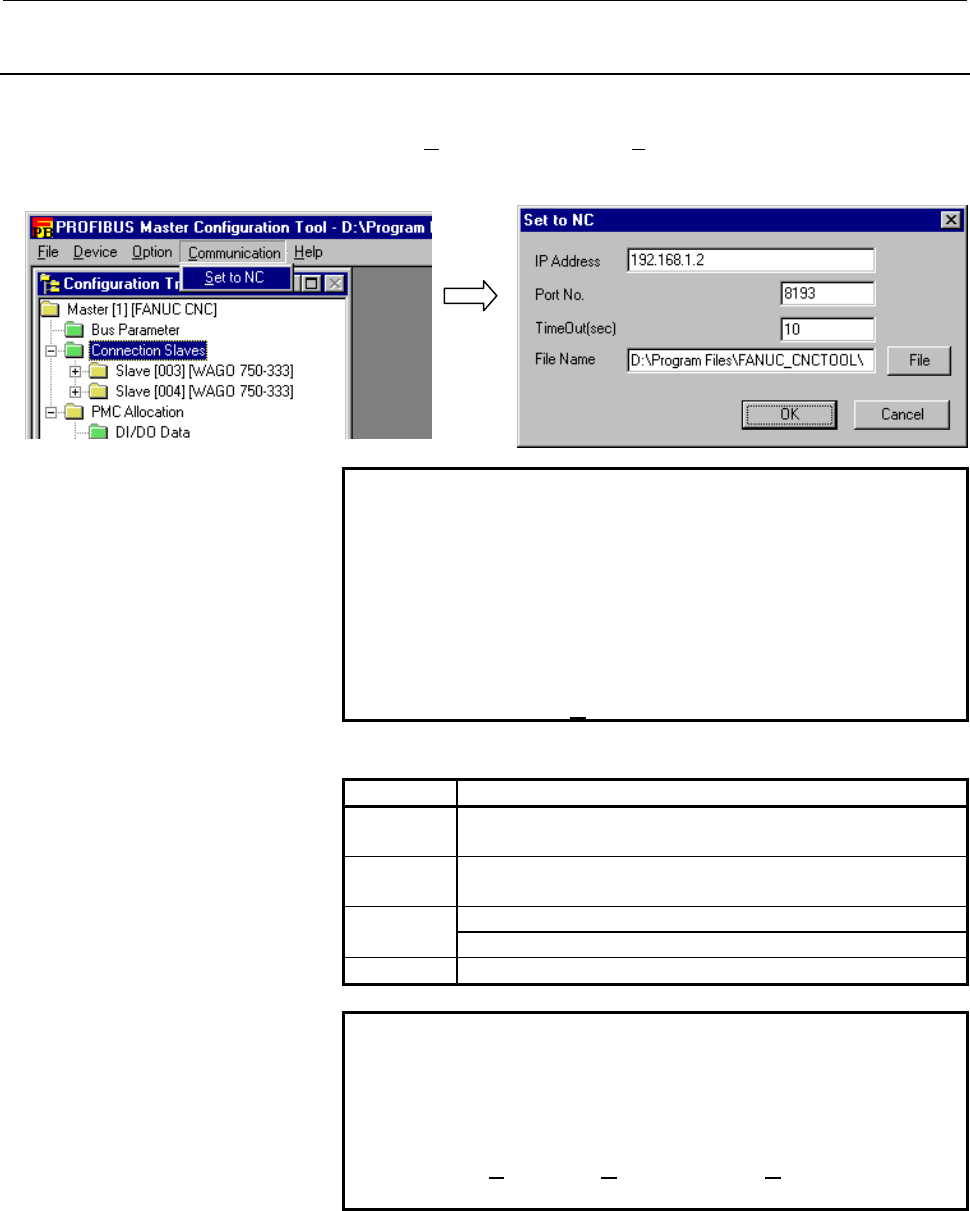

3.2.9 Set to NC Screen
This subsection describes the Set to NC screen.
Choose [C
ommunication] then [Set to NC] from the menu. The Set
to NC screen is displayed.
NOTE
1 This operation assumes that the Ethernet function
on the personal computer is usable. Check that
the Ethernet function can be used on the personal
computer, and make a setting, if necessary, on the
personal computer.
2 Before downloading the current settings to the
CNC, create a pmb file by choosing [File] then
[Save] or [Save As...] from the menu.
Setting item
Item Description
IP Address Set the IP address of the CNC to which settings are to be
downloaded.
Port No. Set the port number of the CNC to which settings are to be
downloaded.
Set a time-out period for downloading. TimeOut
Range: 1 to 65535 (in seconds)
File Name Set a pmb file to be downloaded.
NOTE
In IP Address, Port No., and TimeOut, the values set
on the Machine Property screen of the file
management function are specified.
In File Name, the name of a pmb file created by
choosing [F
ile] then [Save] or [Save As...] from the
menu is specified.
