3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 58 -
3.2.2 Select Master Screen
This subsection describes the Select Master screen.

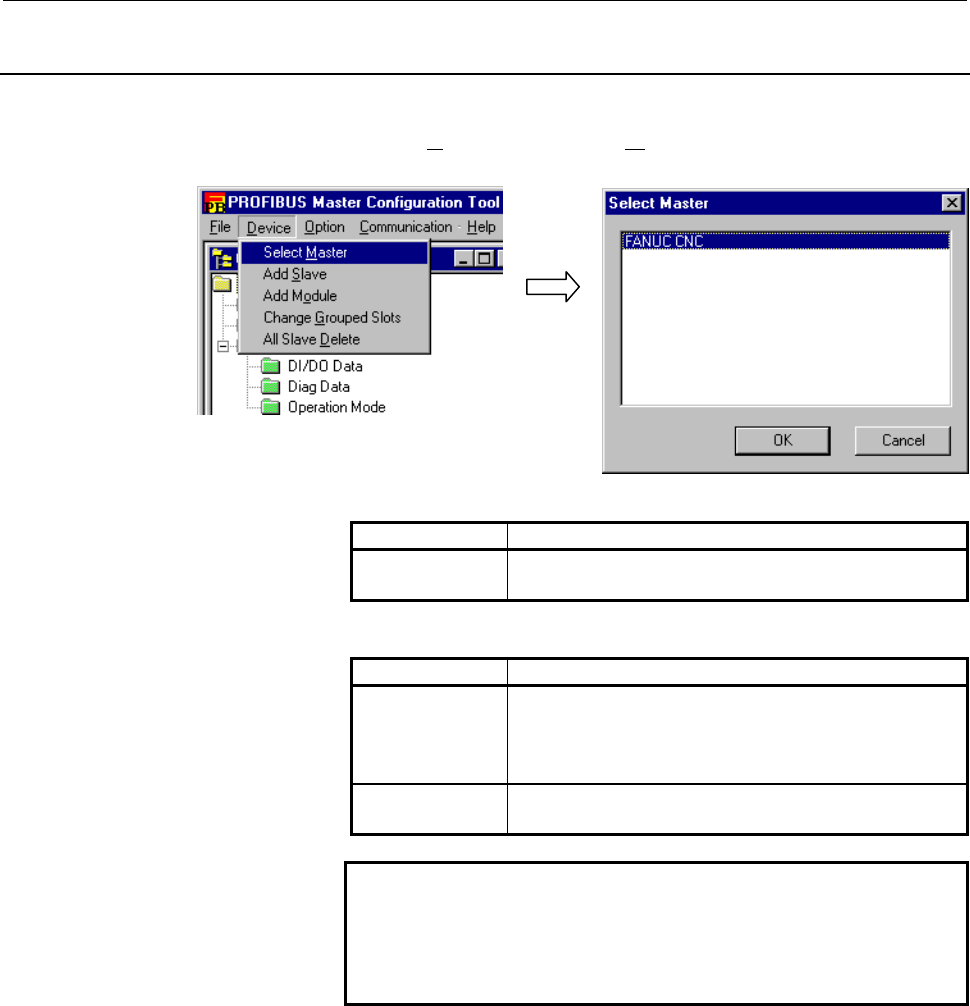

Choose [D
evice] then [Select Master] from the menu. The Select
Master screen is displayed.
Display item
Item Description
(List box) Displays a list of master stations registered with the
PROFIBUS configuration tool.
Button
Item Description
OK When you click this button after selecting a master
station from the "master station list", the master station
is set.
This screen is then closed.
Cancel Cancels operations on this screen and closes this
screen.
NOTE
If items other than "FANUC CNC" are registered on
the GSD File List screen, those items are also
displayed on the Select Master screen. However,
be sure to select "FANUC CNC" in this operation.
