CNC Setting Tool Operators manual Page 76

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 66 -

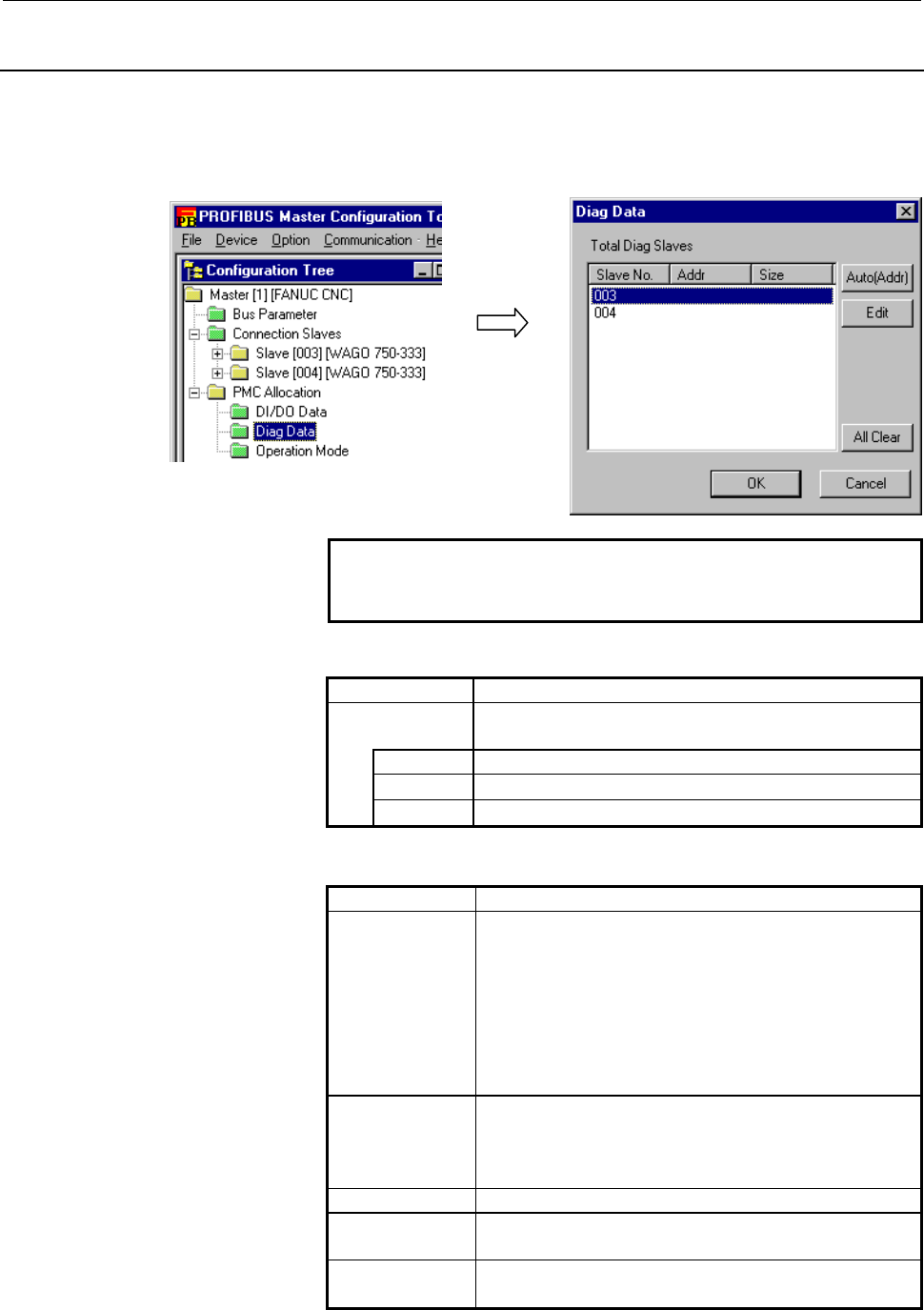

3.2.6 Diag Data Screen
This subsection describes the Diag Data screen.
Select and double-click <PMC Allocation>\<Diag Data> in the
configuration tree. The Diag Data screen is displayed.
PMC address allocation to diagnostic data is not mandatory.
NOTE
For the meaning of diagnostic data, see Subsection
3.3.1, "PROFIBUS Standard for Diagnostic Data".
Display item
Item Description
Total Diag
Slaves
Displays a list of diagnostic data addresses allocated to
all slave stations.
Slave No. Slave station number
Addr Diagnostic data address
Size Diagnostic data size
Button
Item Description
Auto(Addr) Used to automatically set diagnostic data addresses for
all slave stations.
The procedure is as follows:
<1> Set the size of each slave station.
<2> Set the PMC address of a slave station for which
an automatic setting is to be made.
<3> Select the slave station for which a PMC address is
set, then click this button.
Edit Displays the Edit Diag Data screen.
On the Edit Diag Data screen, set a PMC address and
size.
For details, see the item "Editing diagnostic data".
All Clear Clears all of the contents of "Total Diag Slaves".
OK Validates operations on this screen and closes this
screen.
Cancel Cancels operations on this screen and closes this
screen.
