CNC Setting Tool Operators manual Page 84

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 74 -

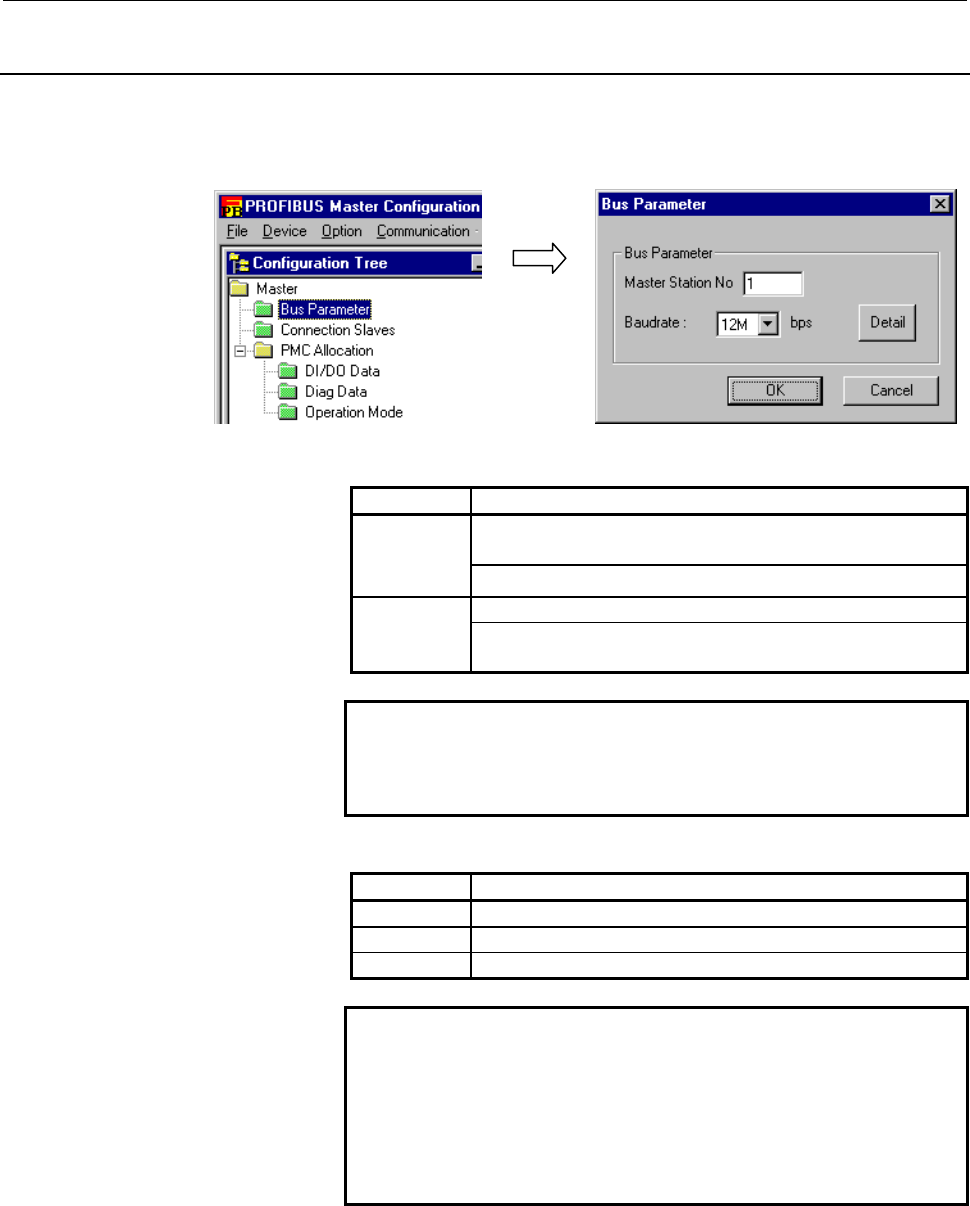

3.2.10 Bus Parameter Screen
This subsection describes the Bus Parameter screen.
Select and double-click <Master>\<Bus Parameter> in the
configuration tree. The Bus Parameter screen is displayed.
Setting item
Item Description
Set the station number of a download destination master
station (CNC).
Master
Station No
Range: 0 to 125
Set a transfer rate. Baudrate
Range: 9.6Kbps, 19.2Kbps, 93.75Kbps, 187.5Kbps,
500Kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps
NOTE
Ensure that "Master Station No" does not duplicate
the numbers of other master station and slave
stations.
Button
Item Description
Detail Displays the Detail Bus Parameter screen.
OK Validates operations on this screen and closes this screen.
Cancel Cancels operations on this screen and closes this screen.
NOTE
When a baud rate is specified, the other bus
parameters are automatically set according to the
baud rate. So, usually, the other bus parameters
need not be customized. When customizing the
other bus parameters, see Subsection 3.2.11,
"Detail Bus Parameter Screen".
