LASER C SERIES Maintenance manual Page 107

Maintenance manual
B–70115EN/03
4. INSTALLATION
105
b) SHL1 and SHL2
These terminals are for shutter interlocking. Strapping these
terminals enables the shutter to be opened and closed.
Contact current–carrying capacity: At least 1.2 A on 24 VDC
Wire: 1.25 mm
2
, 25 m or shorter
c) IB1 and IB2
These terminals are for semiconductor laser interlocking.
Strapping these terminals enables the semiconductor laser to be
turned on.
Contact current–carrying capacity: At least 10 mA on 30 VDC
d) A1 and A2
These terminals are for supplying power to the safety box in the
laser oscillator and switching on and off the laser oscillator power
supply.
Connect +24 VDC and 0 V to A1 and A2, respectively.
Current–carrying capacity: At least 250 mA

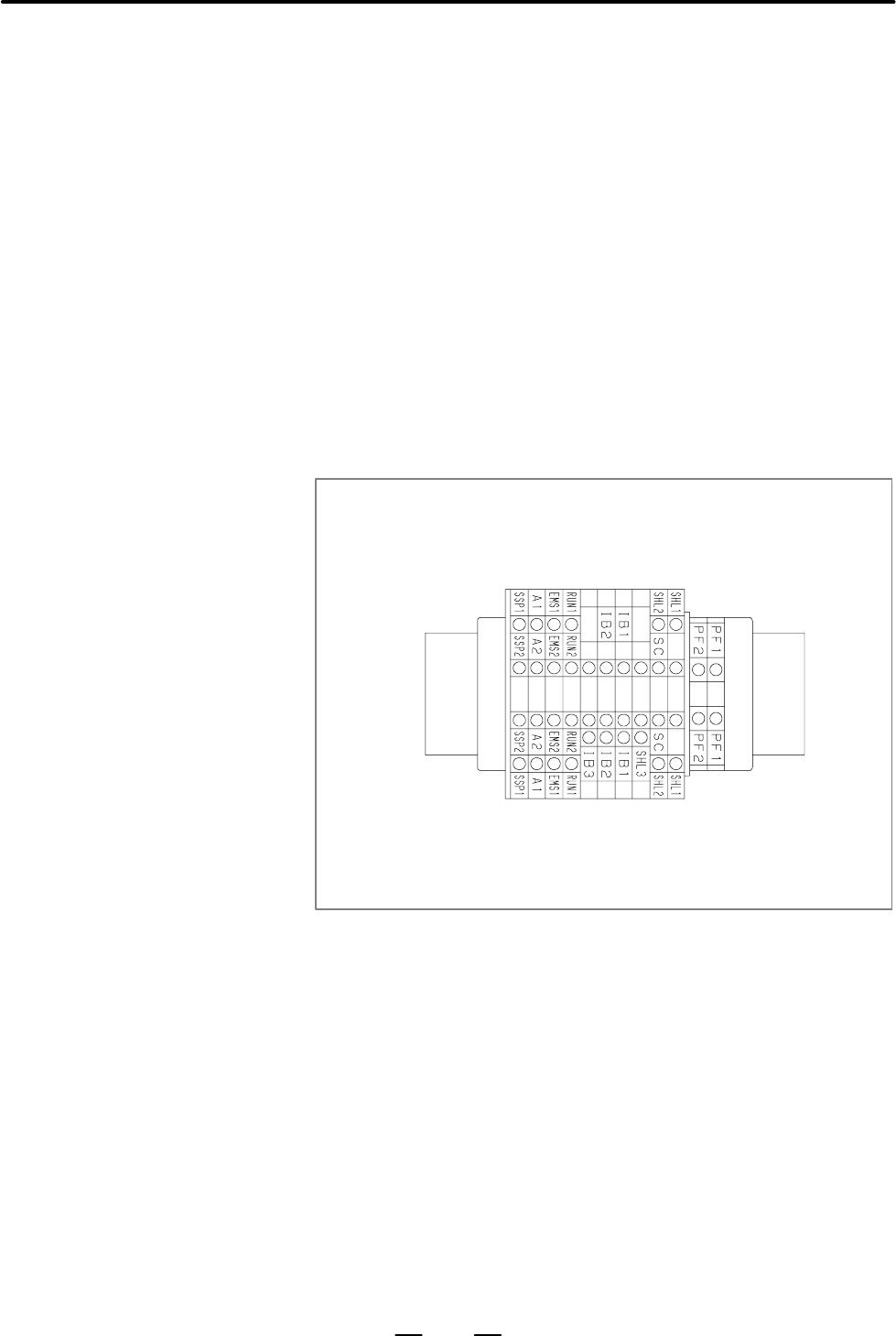

XT20 terminal
e) SC
This terminal is for outputting a shutter–closed signal. It outputs
the signal when the shutter is closed.
Connectable load capacity: 3 to 100 mA on 24 VDC
Note that the voltage applied to the load varies with the current
flowing through the load.
f) RUN1 and RUN2
Connect these terminals in series with the laser oscillator start
signal.
g) EMS1 and EMS2
Connect these terminals to emergency stop switch contact signals.
