LASER C SERIES Maintenance manual Page 36

Maintenance manual
B–70115EN/03
2. SAFETY
34
Fig. 2.7 (a)–(g) show the location of the warning labels indicating the high
voltage and laser beam path.
Fig. 2.7 (a) is the location of the warning sticker at front side. (C1500B,
C2000B, C2000C, C3000C, C3000D)
Fig. 2.7 (b) is the location of the warning sticker at back side. (C1500B,
C2000B, C2000C, C3000C, C3000D)
Fig. 2.7 (c) is the location of the warning sticker (Auxiliary unit of
C3000C)
Fig. 2.7 (d) is the location of the warning sticker at front side. (C4000A)
Fig. 2.7 (e) is the location of the warning sticker at back side. (C4000A)
Fig. 2.7 (f) is the location of the warning sticker at front side. (C6000B)
Fig. 2.7 (g) is the location of the warning sticker at back side. (C6000B)

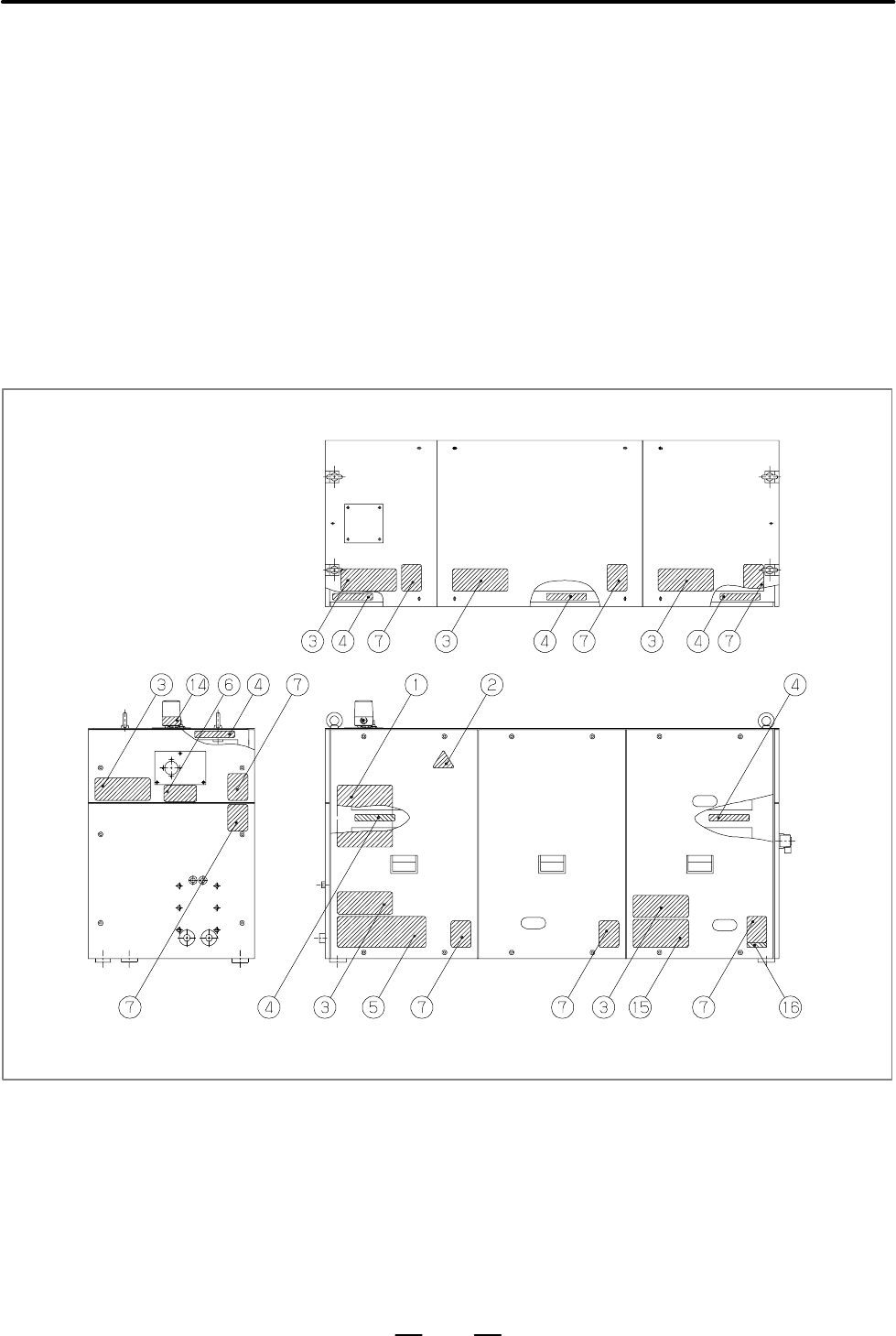

Fig. 2.7 (a) The location of warning sticker at front side (C1500B, C2000B, C2000C, C3000C, C3000D)
2.7
WARNING LABELS
