LASER C SERIES Maintenance manual Page 258

Maintenance manual
B–70115EN/03
9. SETTING AND ADJUSTMENT
256
Selection of T1 or T10 of the DS1 switch determines the factor of
the acceleration or deceleration time. When T10 is selected, the
time is multiplied by 10. TX1: 3 to 15 sec TX10: 15 to 150 sec.
Set the regulators correctly
with reference to the rele-
vant items.
F6 and FH of the DS1 switch and the F.CN and
F.RNG switches are selector switches for selecting
various maximum frequencies. Set the switches
correctly with reference to Table 6.
Printed circuit board
DS2
DS1
F.CN
F.RNG
ABCDE
F
F.OS F60 F.FIN
ACCEL DECEL T.BST F.STP D.BRK
STB1 STB2 V.GAIN V.LMT
ON
OFF
T10
O.REF
RS T E WP P
1
NUV
8
ON
DB
DR
OFF

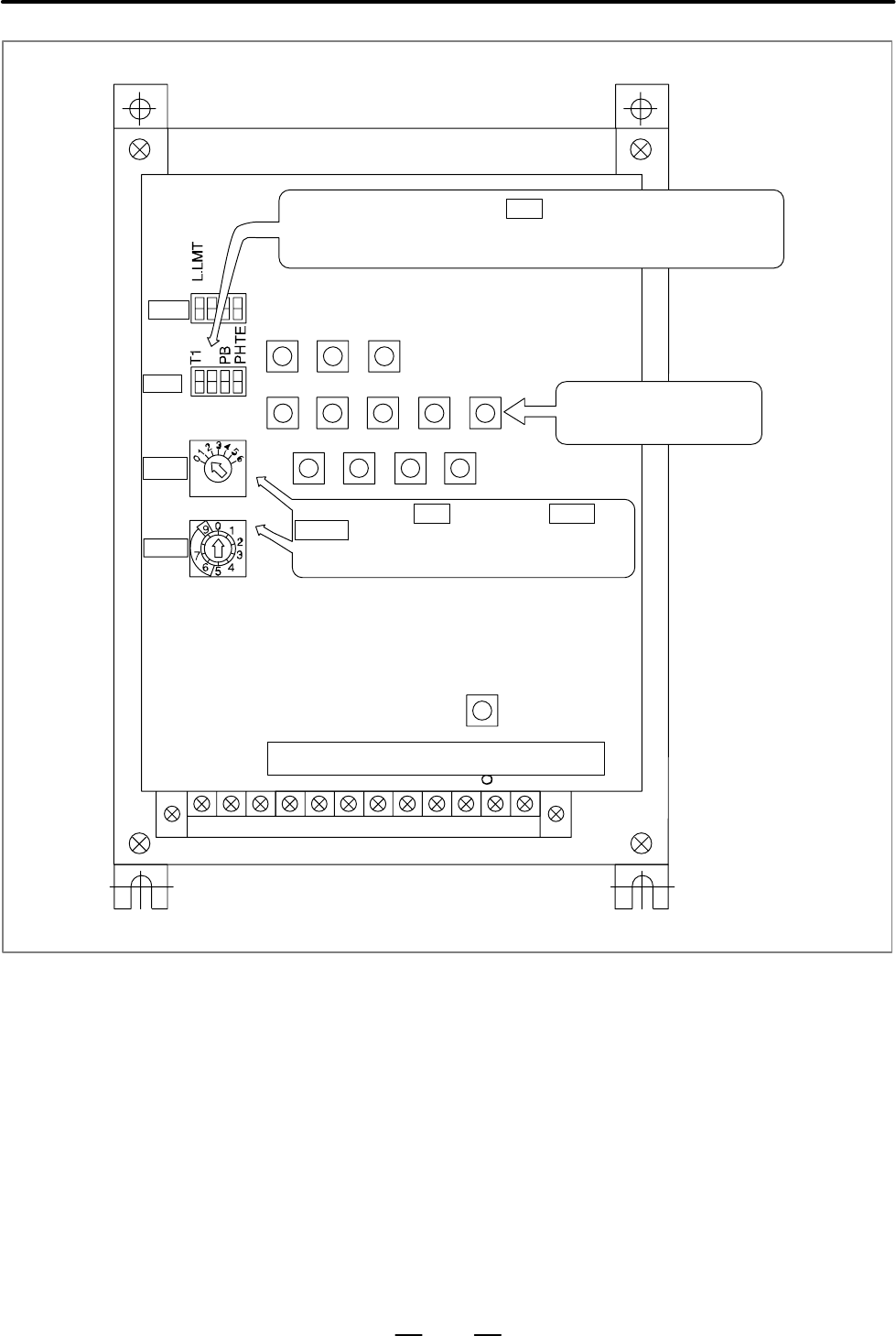

Fig. 9.3.1 High–frequency inverter adjustment unit (HFC–VAH2)
