LASER C SERIES Maintenance manual Page 354

Maintenance manual
B–70115EN/03
11. LASER OPTICAL SYSTEM
352
(1)For information about burn pattern collection, see Section 4.3(1).
(2)In the automatic operation mode, execute the program below to emit
a laser beam to an acrylic block.
[Example of program: For the C1500B]
G32 P1 Q1;
G24 S1500 Q100 R4.0;
G32 P0;
M30;
In the program above, S represents an output (W), R represents a time
(seconds). Depending on the oscillator, rewrite the program. Be sure
to enter a decimal point when specifying R.
(3)For determination of whether a beam mode is good, see Section 4.3(1).

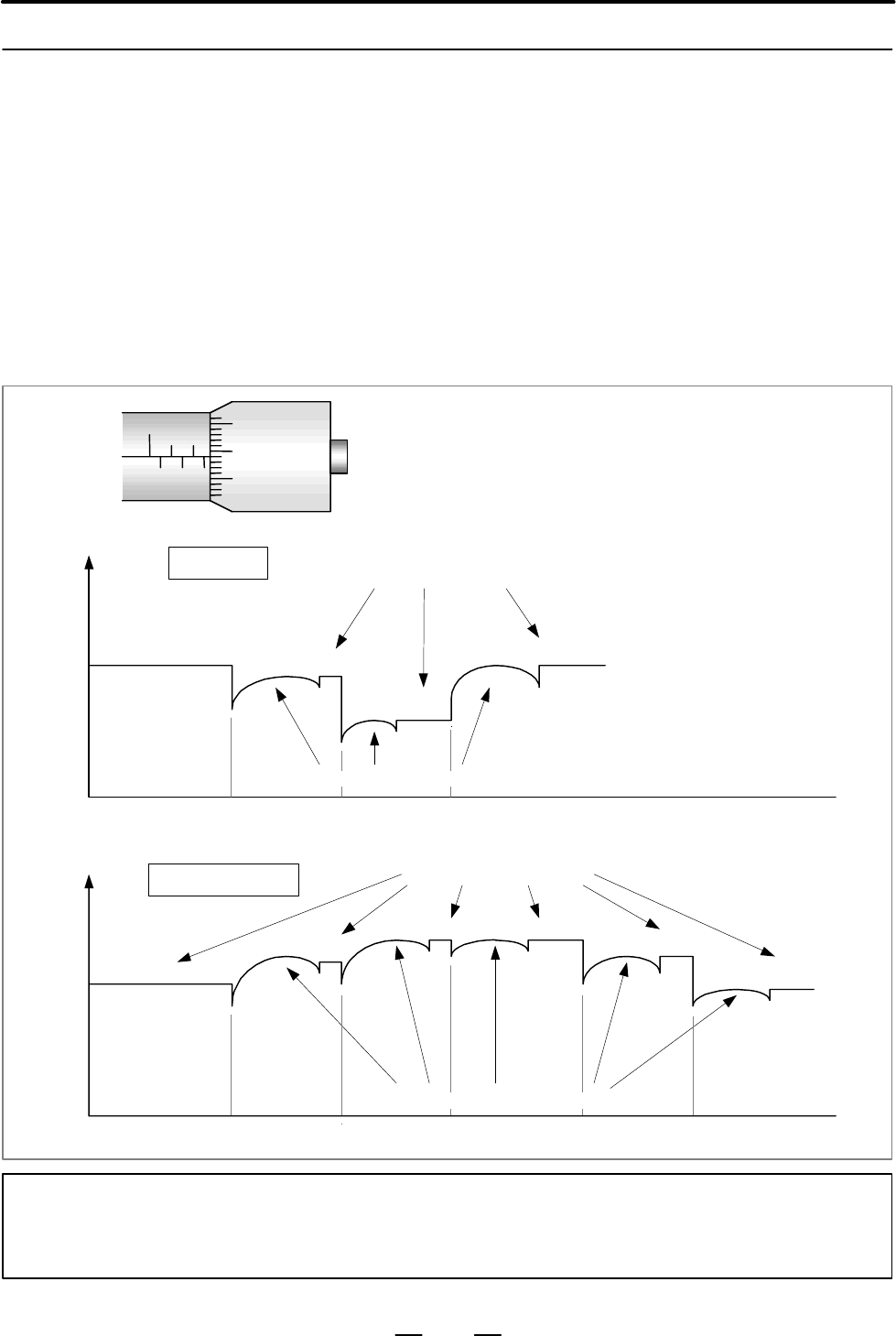

A=7.580 A=7.570 A=7.590
A=7.580 A=7.610 A=7.620 A=7.630 A=7.640
A=7.590
Power
5 15
10
5
Initial setting of A = 7.590
Clockwise
B is adjusted to obtain a maximum power.
Power
B is adjusted to obtain a maximum power.
Same state as 1
Counterclockwise
1
2
3
4
5
1
6
7
9
8
10
A maximum power is obtained based on B.
A maximum power is obtained based on B.
NOTE
In 3, the power is decreased, indicating that the direction is wrong. So, in 5, the adjustment
screw is returned to the original position.
11.2.1.5
Burn pattern collection
and beam mode
evaluation
Previous page
Next page
